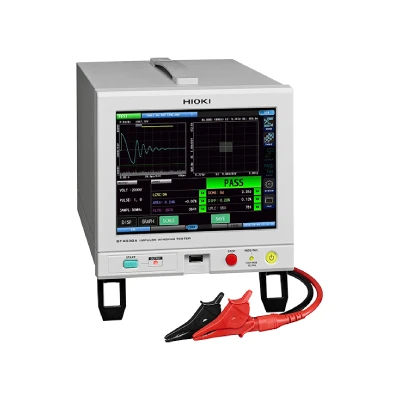

The ST4030A is an impulse winding tester, or surge tester, that combines the functions of both a resistance meter and insulation-withstand testing required for electric motor winding manufacturers to improve quality.  Meet the needs of more reliable motor windings in light of the increasing use of electric vehicles and self-driving technology.


How to Use the Hioki Impulse Winding Tester ST4030A

The ST4030A detects the existence of layer shorts between coil windings, defects that are found in motor inductors. By using a master waveform taken from a reference coil after applying an impulse voltage, and comparing it to the measured waveform across a specific interval of the coil under test, the resulting area difference can help determine pass or fail easily and accurately. In addition, quantification of response waveforms, a new method developed by Hioki, lets you detect even single-turn faults by using a pass/fail distribution plot. Watch this video to learn how to easily make settings and begin testing right away. HIOKI IMPULSE WINDING TESTER ST4030A Price in Bangladesh offers reliable and precise winding testing for electrical equipment. Known for its accuracy and durability, this tester is ideal for professionals seeking quality assurance. Discover competitive HIOKI IMPULSE WINDING TESTER ST4030A Price in Bangladesh for your testing needs today.

Key Features

  • Identify previously undetectable defects
  • Detect waveforms with high precision (200 MHz high speed sampling × high 12-bit resolution)
  • Identify single-fault turns via quantification of response waveforms into LC and RC values
  • Diagnose defective insulation (pseudo-shorts) between motor windings by testing for microscopic partial discharges hidden in noise (option)

Basic specifications

Accuracy guaranteed: 1 year

Measurement items • Quantification (LC value, RC value) of the response waveform obtained when impulse voltage is applied, pass / fail judgment
• Waveform judgment using AREA value, Flutter, Laplacian etc.
• Equipped with dielectric breakdown voltage test function
Applied voltage 100 V to 4200 V (Setting resolution: 10 V steps)
Maximum applied energy: approx. 88 mJ
Testable inductance range 10 μH to 100 mH
Sampling 200 M / 100 M / 50 M / 20 M / 10 MHz, Resolution: 12 bits, Number of data: 1001 to 800 points (1000 point steps)
Voltage detection accuracy [DC accuracy] ± 5% of setting, [AC band] 100 kHz: ± 1 dB
Determination method LC · RC value judgment, waveform judgment, discharge judgment (when incorporating the ST9000)
Number of test condition tables 255 (test condition setting, judgment condition setting, master waveform)
Test time About 60 ms (3000 V, 1 pulse, reference value at decision OFF)

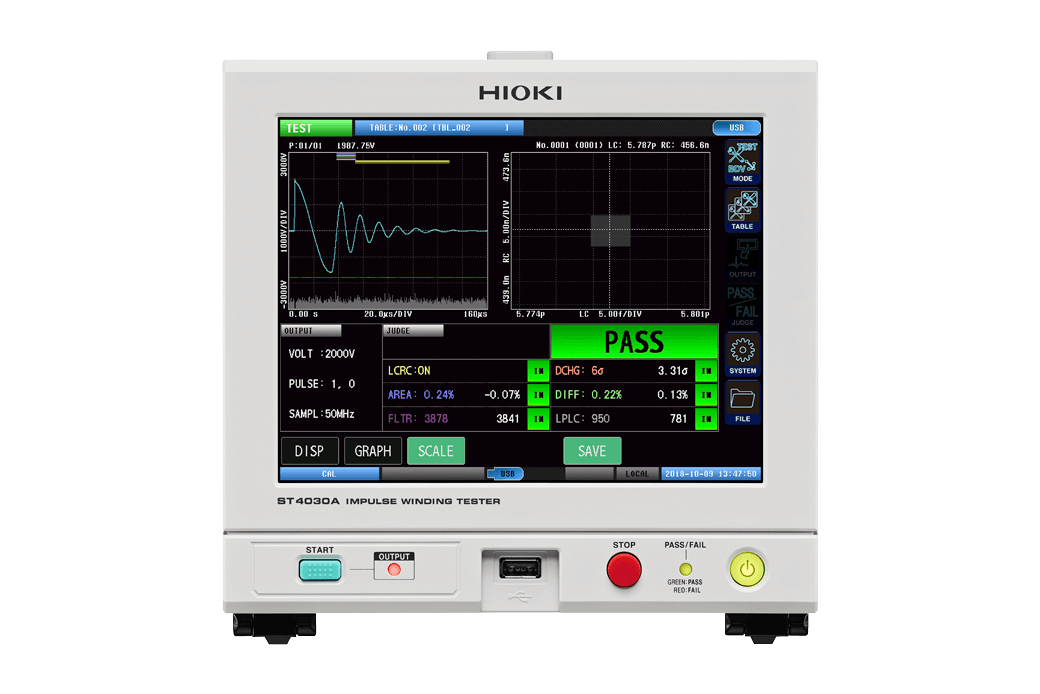

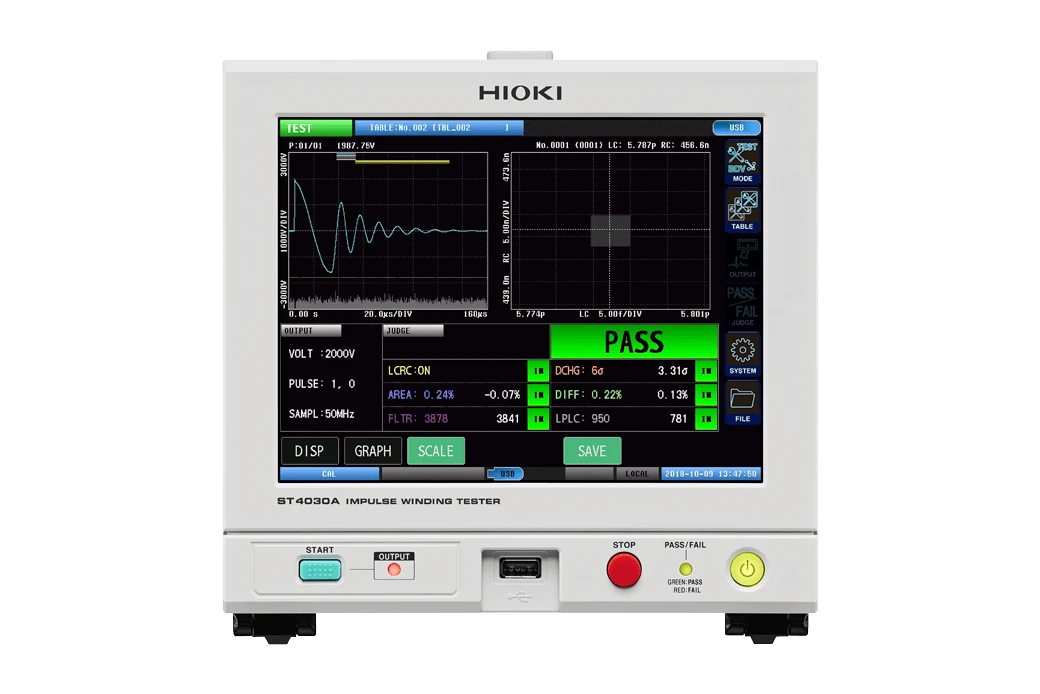

Display 8.4-inch SVGA color TFT liquid crystal (800 × 600 dots), touch panel

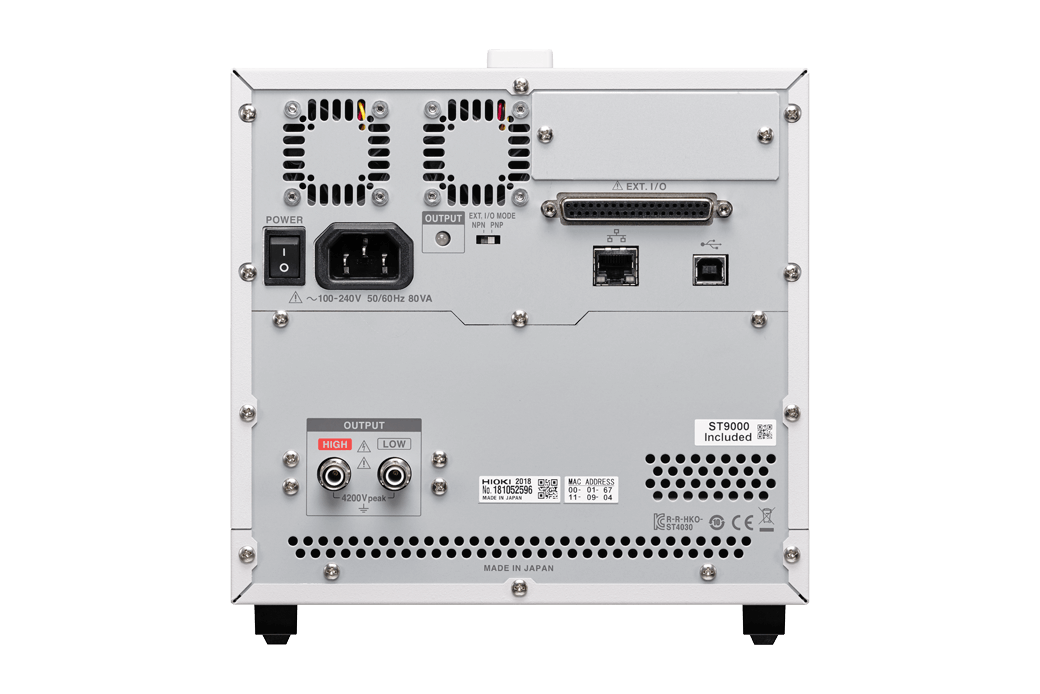

Interface Standard:  EXT.I/O, USB host (memory), USB device (communication), LAN
Optional:  RS-232C (Z3001), GP-IB (Z3000)
Power supply 100 V to 240 V AC, 50/60 Hz, 80 VA max.
Dimensions and mass 215 mm (8.46 in)W × 200 mm (7.87 in)H × 348 mm (13.7 in)D, 6.7 kg (236.3 oz)
Included accessories Power cord ×1, Instruction Manual ×1, Application disc ×1, Usage notes ×1
Included accessories Power cord ×1, Instruction Manual ×1, Application disc ×1, Usage notes ×1
Included accessories Power cord ×1, Instruction Manual ×1, Application disc ×1, Usage notes ×1

The ST4030A is an impulse winding tester, or surge tester, that combines the functions of both a resistance meter and insulation-withstand testing required for electric motor winding manufacturers to improve quality.  Meet the needs of more reliable motor windings in light of the increasing use of electric vehicles and self-driving technology.


How to Use the Hioki Impulse Winding Tester ST4030A

The ST4030A detects the existence of layer shorts between coil windings, defects that are found in motor inductors. By using a master waveform taken from a reference coil after applying an impulse voltage, and comparing it to the measured waveform across a specific interval of the coil under test, the resulting area difference can help determine pass or fail easily and accurately. In addition, quantification of response waveforms, a new method developed by Hioki, lets you detect even single-turn faults by using a pass/fail distribution plot. Watch this video to learn how to easily make settings and begin testing right away. HIOKI IMPULSE WINDING TESTER ST4030A Price in Bangladesh offers reliable and precise winding testing for electrical equipment. Known for its accuracy and durability, this tester is ideal for professionals seeking quality assurance. Discover competitive HIOKI IMPULSE WINDING TESTER ST4030A Price in Bangladesh for your testing needs today.

Key Features

  • Identify previously undetectable defects
  • Detect waveforms with high precision (200 MHz high speed sampling × high 12-bit resolution)
  • Identify single-fault turns via quantification of response waveforms into LC and RC values
  • Diagnose defective insulation (pseudo-shorts) between motor windings by testing for microscopic partial discharges hidden in noise (option)

Basic specifications

Accuracy guaranteed: 1 year

Measurement items • Quantification (LC value, RC value) of the response waveform obtained when impulse voltage is applied, pass / fail judgment
• Waveform judgment using AREA value, Flutter, Laplacian etc.
• Equipped with dielectric breakdown voltage test function
Applied voltage 100 V to 4200 V (Setting resolution: 10 V steps)
Maximum applied energy: approx. 88 mJ
Testable inductance range 10 μH to 100 mH
Sampling 200 M / 100 M / 50 M / 20 M / 10 MHz, Resolution: 12 bits, Number of data: 1001 to 800 points (1000 point steps)
Voltage detection accuracy [DC accuracy] ± 5% of setting, [AC band] 100 kHz: ± 1 dB
Determination method LC · RC value judgment, waveform judgment, discharge judgment (when incorporating the ST9000)
Number of test condition tables 255 (test condition setting, judgment condition setting, master waveform)
Test time About 60 ms (3000 V, 1 pulse, reference value at decision OFF)
Display 8.4-inch SVGA color TFT liquid crystal (800 × 600 dots), touch panel
Interface Standard:  EXT.I/O, USB host (memory), USB device (communication), LAN
Optional:  RS-232C (Z3001), GP-IB (Z3000)
Power supply 100 V to 240 V AC, 50/60 Hz, 80 VA max.
Dimensions and mass 215 mm (8.46 in)W × 200 mm (7.87 in)H × 348 mm (13.7 in)D, 6.7 kg (236.3 oz)
Included accessories Power cord ×1, Instruction Manual ×1, Application disc ×1, Usage notes ×1

Included accessories Power cord ×1, Instruction Manual ×1, Application disc ×1, Usage notes ×1

Included accessories Power cord ×1, Instruction Manual ×1, Application disc ×1, Usage notes ×1
