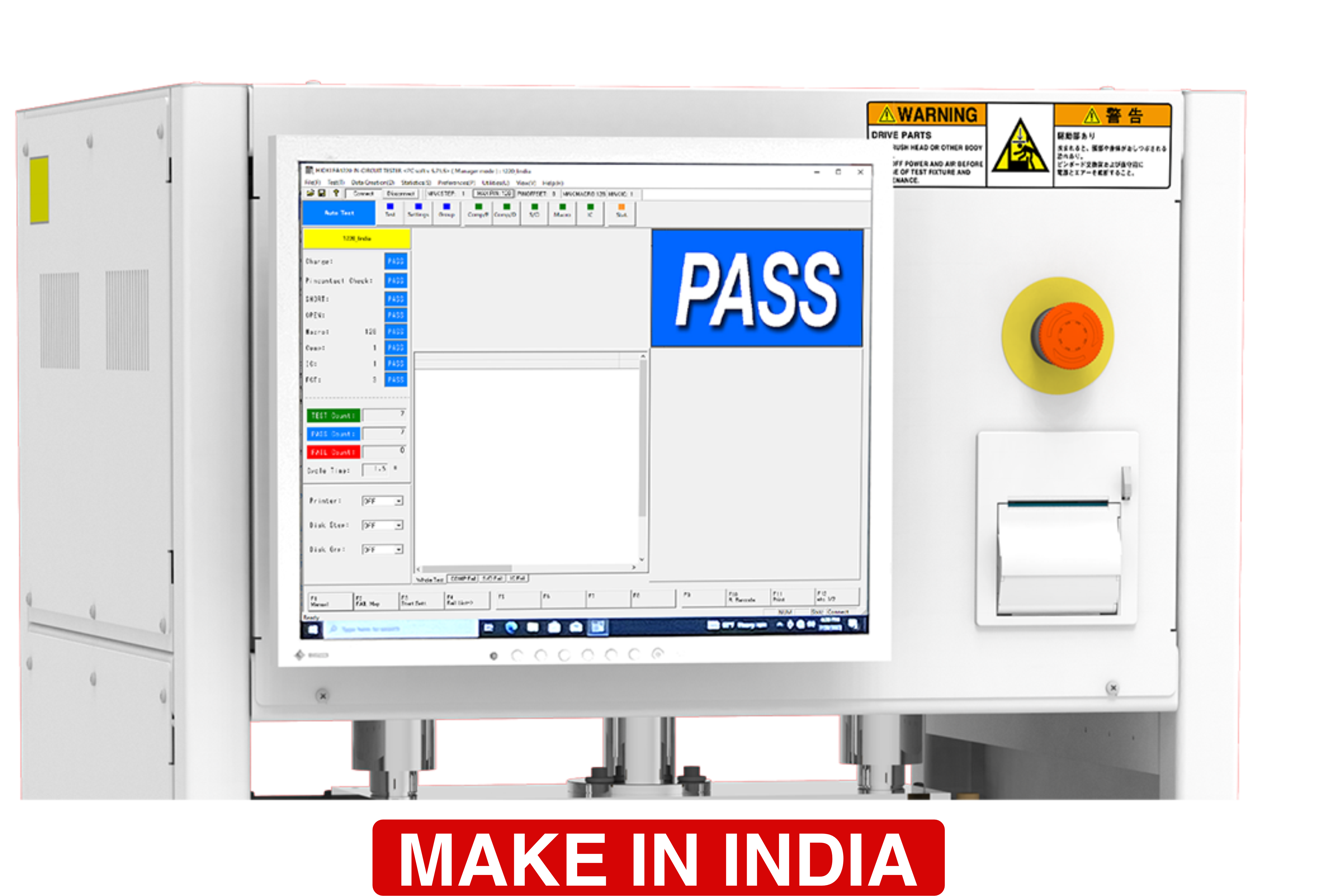

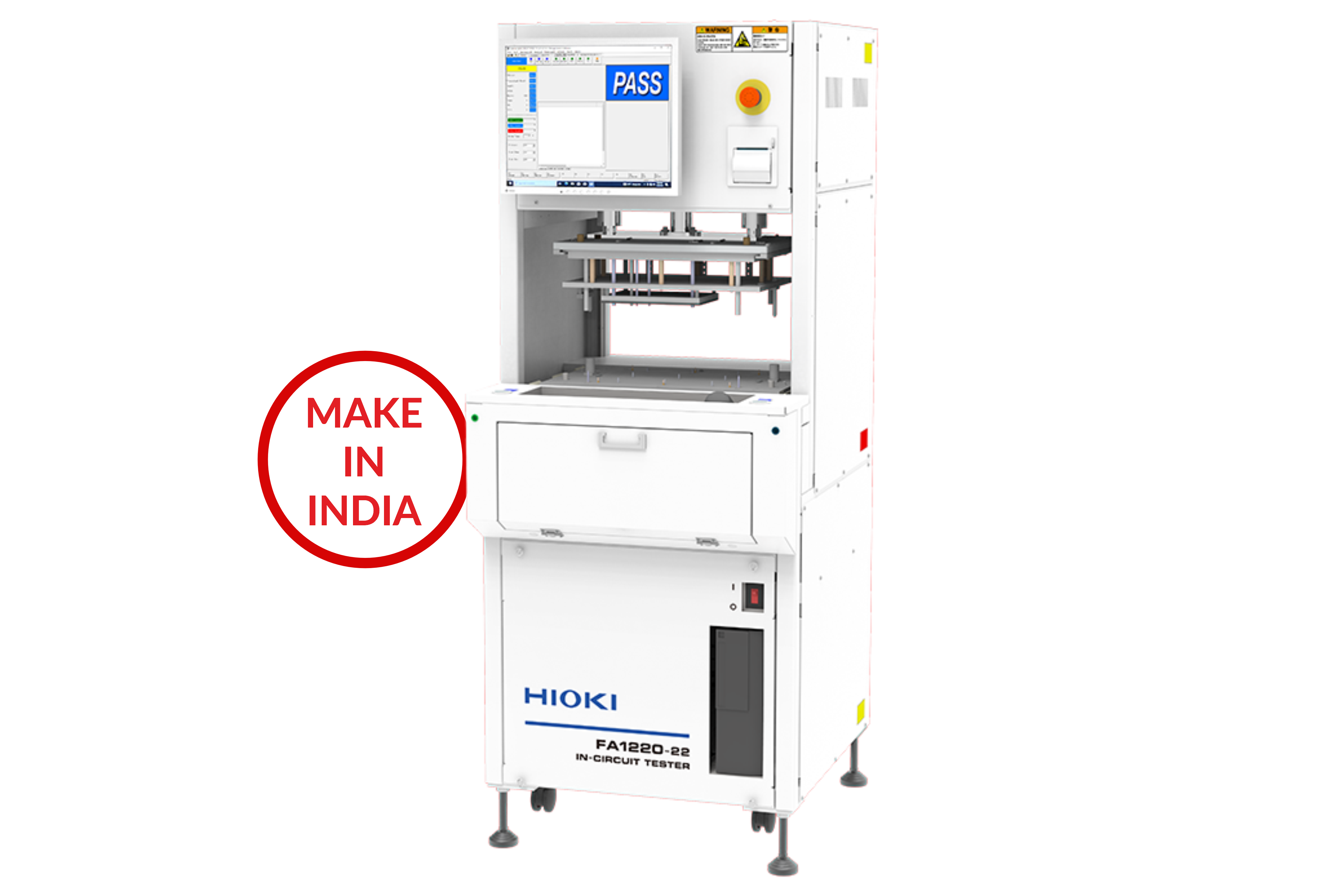

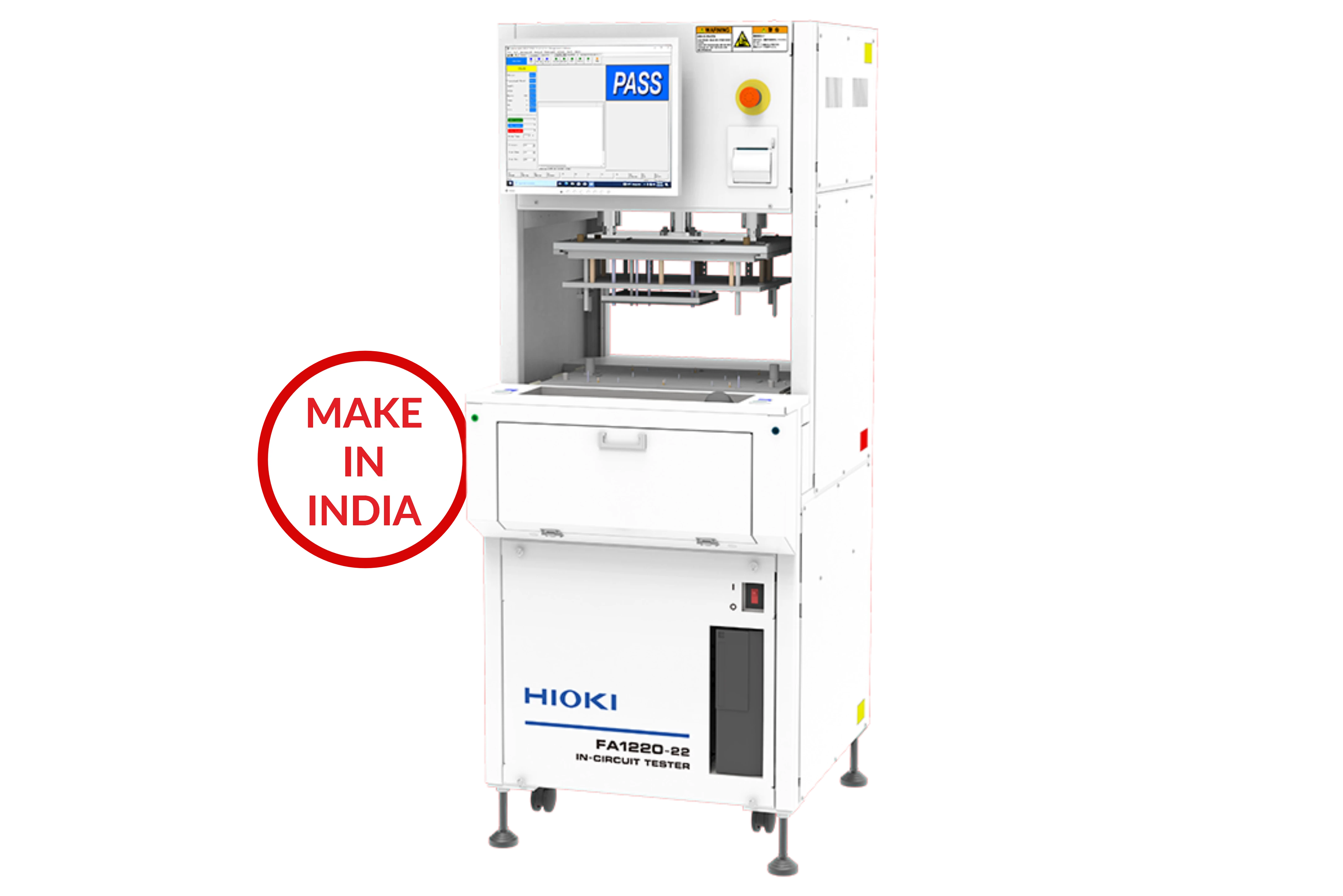

HIOKI FA1220-22 IN-CIRCUIT TESTER

Home › Hioki
Thumbnail
Shop : Tools Bangladesh
Product ID : 4541
Brand : Hioki
Availability : Out of Stock
Price BDT : 0.00 BDT
Reviews :
Share :
Ask Special Price Request Quote

  • Customer Support

    +8801965656380

  • Cash One Delivery

    Pay after getting the product on hand

  • Warranty

    1 Year warranty by manufacturer

  • Secured Payment Method

    Your cart is always secure to shop

  • Easy Return Policy

    24 hours return without physical defect.

Hioki testing systems continue to evolve so that the people who use them can shine. Reflecting its commitment to bring speed and comfort to the production floor by streamlining testing, Hioki’s proud to introduce a populated board tester designed with people in mind.

Key Features

  • Extensive component testing capability Component testing with less test pins 512 scanner pins standard; expandable to 1,024 pins Ultra-low resistance measurement capability
  • High-speed & High-performance Measurement engine Technology from Japan 　
  • Data creation support functionality: ATG function.
  • Productivity and Quality
  • Make in India

The HIOKI FA1220-22 In-Circuit Tester is a high-performance solution for PCB testing, ensuring accuracy, speed, and reliability in electronic circuit inspection. Widely used in manufacturing industries, this advanced tester helps detect faults, short circuits, and component failures with precision. If you are looking for the HIOKI FA1220-22 price in Bangladesh, Iconic Engineering Limited offers genuine products at competitive rates. Investing in this tester enhances production quality and reduces downtime, making it an ideal choice for electronics manufacturers. Contact authorized suppliers in Bangladesh today to get the latest HIOKI FA1220-22 price and specifications.

Key Features

  • Extensive component testing capability Component testing with less test pins 512 scanner pins standard; expandable to 1,024 pins Ultra-low resistance measurement capability
  • High-speed & High-performance Measurement engine Technology from Japan 　
  • Data creation support functionality: ATG function.
  • Productivity and Quality
  • Make in India

FA1220-22 Specifications Overview

Number of test points Standard: 512 pins (scanner boards optional)
Max. 1024 pins (expandable in blocks of 128 pins)*
Number of test steps Group data: 256 groups
Round-robin short/open data 1024 pins*
Macro data: 1024pins* 1024 steps (regardless of pin count)
Component data: 10000 steps
Charge data: 40 groups
Pin contact data: 1024 pins*
IC data: 500 steps (max. 1024 pins/step)*

*The maximum number of active pins for each test type depends on the total number of scanner board pins installed in the products.
Measurement unit DC voltmeter: 800 μV fs. to 25 V fs, 8 ranges
DC ammeter : 100 nA fs to 25 mA fs, 8 ranges
AC ammeter : 10 μA rms to 10 mA rms, 4 ranges
Scanner unit E4201 Switch type: Analog (Scanner Board E4201)
Number of channels: 128 per board
Input protection: ± 15 V (Scanner Board E4201)
External I/O Ethernet (LAN) 100Base-TX X 1 (Contact Hioki for More information about external connectivity. )
USB 2.0 X4, USB 3.2 Gen 1Type - Ax4
(keyboard and mouse occupy 2 ports)
Control unit - Measurement control
Operating system: Real-time operating system
Storage device: SD card (for booting system)

- Main Unit Control
Hardware: Personal Computer
Operating system: Windows 10 Pro (64-bit)
Storage device: 256 GB SSD
Operation: keyboard and mouse
Display: 17-inch display
Printer: Panel Mount Type, Paper Width 58mm
Power supply Rated Supply Voltage: 220 to 240 V AC, 50Hz
Maximum power consumption: 1kVA
Dimensions and mass 652 (W) × 789 (D) × 1671 (H) mm (excluding protruding parts)
Weight: 235 kg
Included accessories User Manual x 2 ( With Warranty Certificate x 1 ), Test lead x 1, application CD x 1, positioning screws x 4
Included accessories User Manual x 2 ( With Warranty Certificate x 1 ), Test lead x 1, application CD x 1, positioning screws x 4
Included accessories User Manual x 2 ( With Warranty Certificate x 1 ), Test lead x 1, application CD x 1, positioning screws x 4

Hioki testing systems continue to evolve so that the people who use them can shine. Reflecting its commitment to bring speed and comfort to the production floor by streamlining testing, Hioki’s proud to introduce a populated board tester designed with people in mind.

Key Features

  • Extensive component testing capability Component testing with less test pins 512 scanner pins standard; expandable to 1,024 pins Ultra-low resistance measurement capability
  • High-speed & High-performance Measurement engine Technology from Japan 　
  • Data creation support functionality: ATG function.
  • Productivity and Quality
  • Make in India

The HIOKI FA1220-22 In-Circuit Tester is a high-performance solution for PCB testing, ensuring accuracy, speed, and reliability in electronic circuit inspection. Widely used in manufacturing industries, this advanced tester helps detect faults, short circuits, and component failures with precision. If you are looking for the HIOKI FA1220-22 price in Bangladesh, Iconic Engineering Limited offers genuine products at competitive rates. Investing in this tester enhances production quality and reduces downtime, making it an ideal choice for electronics manufacturers. Contact authorized suppliers in Bangladesh today to get the latest HIOKI FA1220-22 price and specifications.

Key Features

  • Extensive component testing capability Component testing with less test pins 512 scanner pins standard; expandable to 1,024 pins Ultra-low resistance measurement capability
  • High-speed & High-performance Measurement engine Technology from Japan 　
  • Data creation support functionality: ATG function.
  • Productivity and Quality
  • Make in India

FA1220-22 Specifications Overview

Number of test points Standard: 512 pins (scanner boards optional)
Max. 1024 pins (expandable in blocks of 128 pins)*
Number of test steps Group data: 256 groups
Round-robin short/open data 1024 pins*
Macro data: 1024pins* 1024 steps (regardless of pin count)
Component data: 10000 steps
Charge data: 40 groups
Pin contact data: 1024 pins*
IC data: 500 steps (max. 1024 pins/step)*

*The maximum number of active pins for each test type depends on the total number of scanner board pins installed in the products.
Measurement unit DC voltmeter: 800 μV fs. to 25 V fs, 8 ranges
DC ammeter : 100 nA fs to 25 mA fs, 8 ranges
AC ammeter : 10 μA rms to 10 mA rms, 4 ranges
Scanner unit E4201 Switch type: Analog (Scanner Board E4201)
Number of channels: 128 per board
Input protection: ± 15 V (Scanner Board E4201)
External I/O Ethernet (LAN) 100Base-TX X 1 (Contact Hioki for More information about external connectivity. )
USB 2.0 X4, USB 3.2 Gen 1Type - Ax4
(keyboard and mouse occupy 2 ports)
Control unit - Measurement control
Operating system: Real-time operating system
Storage device: SD card (for booting system)

- Main Unit Control
Hardware: Personal Computer
Operating system: Windows 10 Pro (64-bit)
Storage device: 256 GB SSD
Operation: keyboard and mouse
Display: 17-inch display
Printer: Panel Mount Type, Paper Width 58mm
Power supply Rated Supply Voltage: 220 to 240 V AC, 50Hz
Maximum power consumption: 1kVA
Dimensions and mass 652 (W) × 789 (D) × 1671 (H) mm (excluding protruding parts)
Weight: 235 kg
Included accessories User Manual x 2 ( With Warranty Certificate x 1 ), Test lead x 1, application CD x 1, positioning screws x 4

Included accessories User Manual x 2 ( With Warranty Certificate x 1 ), Test lead x 1, application CD x 1, positioning screws x 4

Included accessories User Manual x 2 ( With Warranty Certificate x 1 ), Test lead x 1, application CD x 1, positioning screws x 4
