Hioki LCR Meters and Impedance Analyzers range from 1mHz to 3GHz devices to suit a wide range of applications in the testing of electronic components. The IM9000 is a optional firmware upgrade for Model IM3570 to facilitate Cole-Cole plots, simple circuit analysis and detailed acceptance/rejection decisions, adding value to the IM3570 to serve more advanced component analysis.

Get the best deal on HIOKI EQUIVALENT CIRCUIT ANALYSIS FIRMWARE IM9000 Price in Bangladesh. This advanced firmware enhances circuit analysis accuracy and efficiency, making it essential for professionals. Affordable and reliable, it ensures top performance for your HIOKI devices. Don’t miss out on the latest technology upgrade!



Key Features

  • Automatically select the equivalent circuit model from the five typical models to minimize the differences between the measured values and the ideal frequency characteristics derived from the analysis results
  • Determine acceptance/rejection for the L, C, and R elements comprising a part and the resonance sharpness (mechanical quality coefficient)

Basic specifications

Three-element model Equivalent circuit model: Four models for Coil, Resistance, Capacitor
Measurement items: L1 (Inductance), C1 (Capacitance), R1 (Resistance), Qm (Resonance sharpness),
fr (Resonance frequency) / fa (Anti-resonance frequency)
Four-element model Equivalent crcuit model: One model for Pizoelectric element
Measurement items: L1 (Inductance), C1 (Capacitance), R1 (Resistance), C0 (Parallel capacitance), Qm (Resonance sharpness or mechanical quality coefficient)
fr (Resonance frequency), fa (Anti-resonance frequency), fs (Series resonance frequency), fp (Parallel resonance frequency), fm (Maximum admittance frequency), fn (Minimum admittance frequency), f1 (Maximum susceptance frequency), f2 (Minimum susceptance frequency)

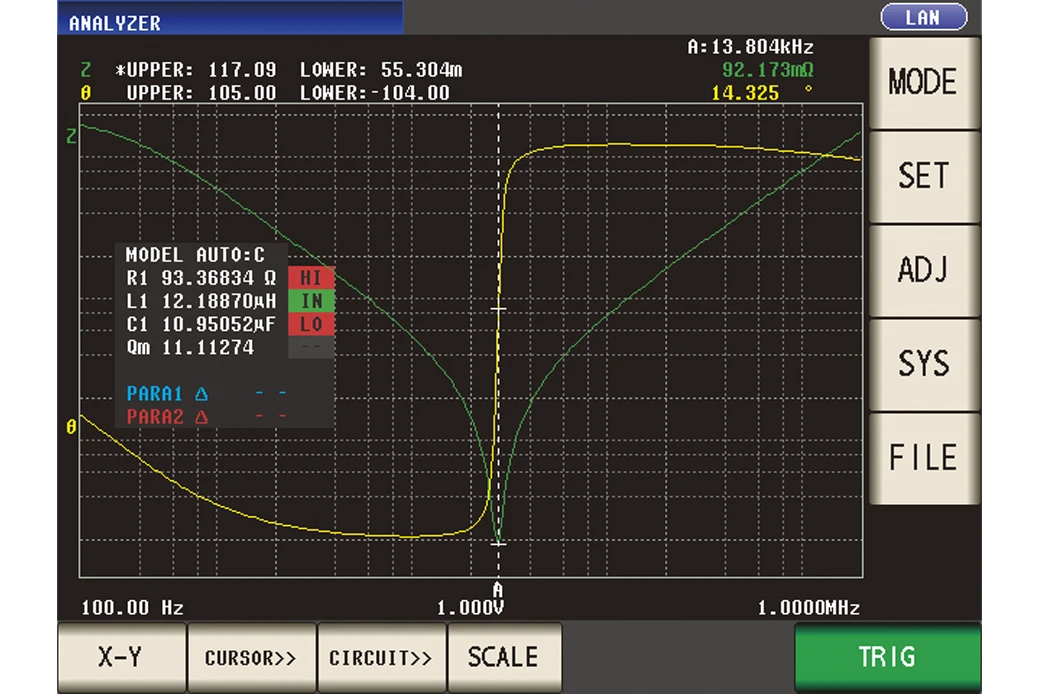

Other functions Simulation: Enables displaying and comparing the ideal frequency characteristics graph derived from the analysis results or the values specified by the user
Comparator: Runs a comparator on the analysis results and outputs the decision results to screen, EXT. I/O
X-Y display Cole-Cole plot, Admittance circle display

N/A

N/A

Hioki LCR Meters and Impedance Analyzers range from 1mHz to 3GHz devices to suit a wide range of applications in the testing of electronic components. The IM9000 is a optional firmware upgrade for Model IM3570 to facilitate Cole-Cole plots, simple circuit analysis and detailed acceptance/rejection decisions, adding value to the IM3570 to serve more advanced component analysis.

Get the best deal on HIOKI EQUIVALENT CIRCUIT ANALYSIS FIRMWARE IM9000 Price in Bangladesh. This advanced firmware enhances circuit analysis accuracy and efficiency, making it essential for professionals. Affordable and reliable, it ensures top performance for your HIOKI devices. Don’t miss out on the latest technology upgrade!



Key Features

  • Automatically select the equivalent circuit model from the five typical models to minimize the differences between the measured values and the ideal frequency characteristics derived from the analysis results
  • Determine acceptance/rejection for the L, C, and R elements comprising a part and the resonance sharpness (mechanical quality coefficient)

Basic specifications

Three-element model Equivalent circuit model: Four models for Coil, Resistance, Capacitor
Measurement items: L1 (Inductance), C1 (Capacitance), R1 (Resistance), Qm (Resonance sharpness),
fr (Resonance frequency) / fa (Anti-resonance frequency)
Four-element model Equivalent crcuit model: One model for Pizoelectric element
Measurement items: L1 (Inductance), C1 (Capacitance), R1 (Resistance), C0 (Parallel capacitance), Qm (Resonance sharpness or mechanical quality coefficient)
fr (Resonance frequency), fa (Anti-resonance frequency), fs (Series resonance frequency), fp (Parallel resonance frequency), fm (Maximum admittance frequency), fn (Minimum admittance frequency), f1 (Maximum susceptance frequency), f2 (Minimum susceptance frequency)
Other functions Simulation: Enables displaying and comparing the ideal frequency characteristics graph derived from the analysis results or the values specified by the user
Comparator: Runs a comparator on the analysis results and outputs the decision results to screen, EXT. I/O
X-Y display Cole-Cole plot, Admittance circle display

N/A

N/A
