HIOKI ELECTRODE RESISTANCE MEASUREMENT SYSTEM RM2610

Home › Hioki
Thumbnail
Shop : Tools Bangladesh
Product ID : 4203
Brand : Hioki
Availability : Out of Stock
Price BDT : Ask for Price
Reviews :
Share :
Request Quote

  • Customer Support

    +8801965656380

  • Cash One Delivery

    Pay after getting the product on hand

  • Warranty

    1 Year warranty by manufacturer

  • Secured Payment Method

    Your cart is always secure to shop

  • Easy Return Policy

    24 hours return without physical defect.

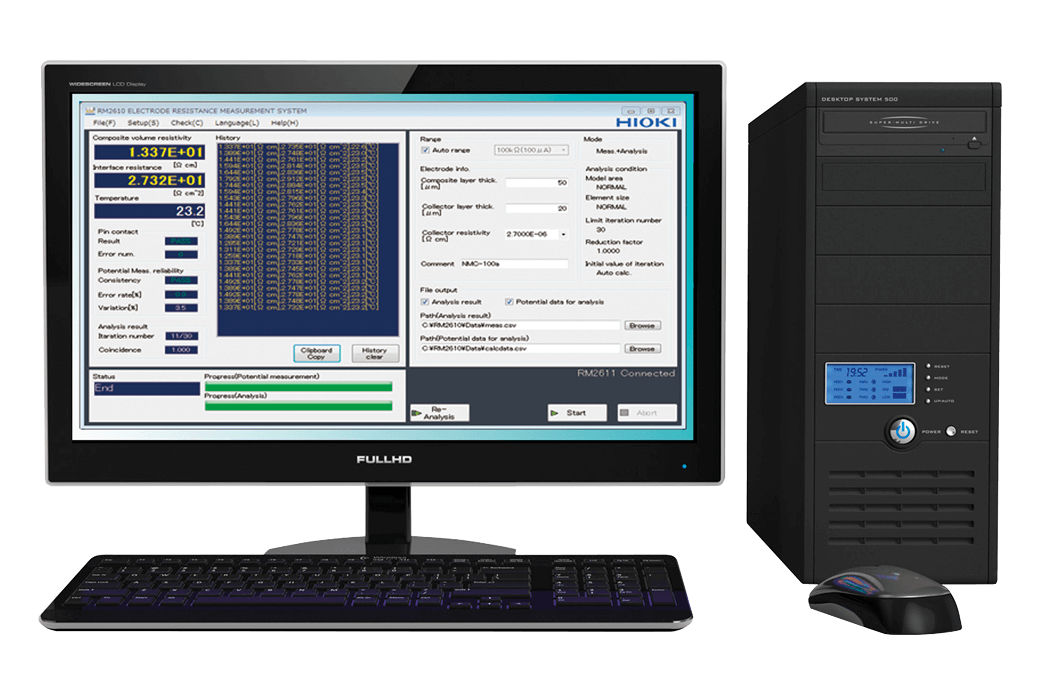

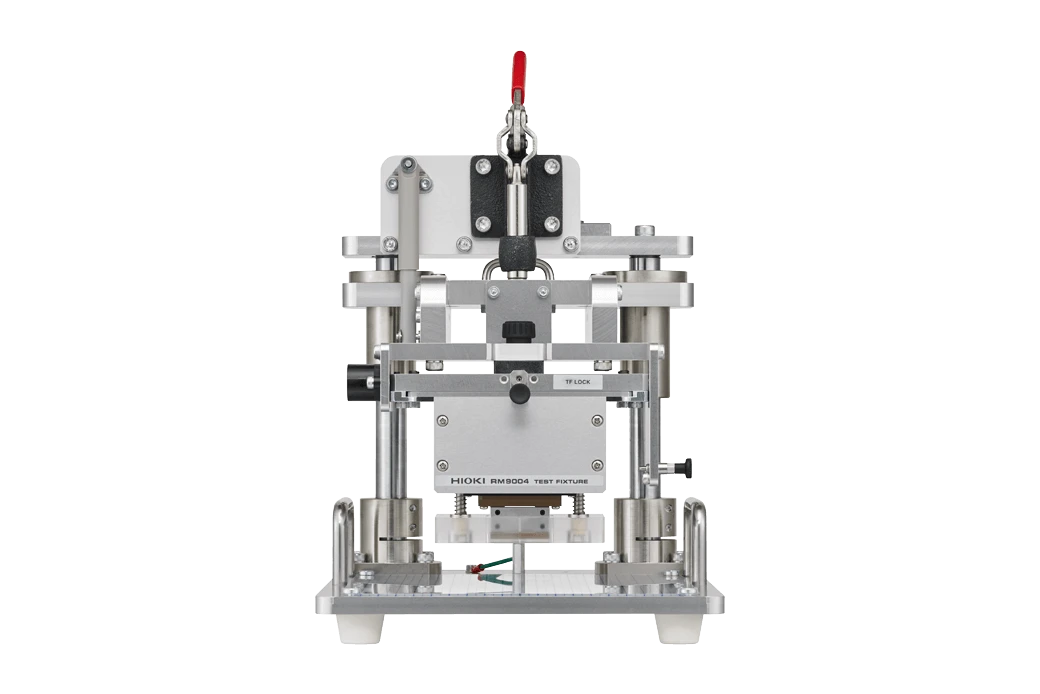

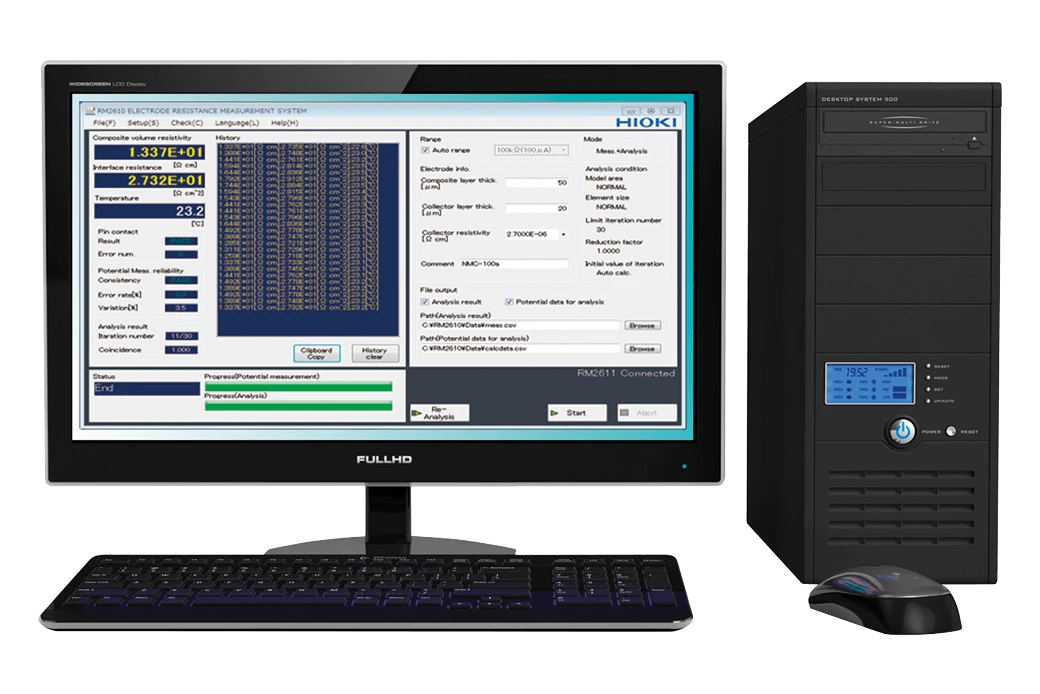

The RM2610 isolates and quantifies the resistance characteristics of electrode sheets, a major component of lithium-ion batteries (LIBs), as two components: the composite layer resistance and the interface resistance between the composite layer and collector.  The system allows users to visualize these two quantities by measuring the surface of the electrode sheet with a test fixture that consists of an array of test probes and then using proprietary analytical techniques to quantify them.

Get the best deal on HIOKI ELECTRODE RESISTANCE RM2610 Price in Bangladesh. Reliable, accurate, and durable, this tester ensures precise electrode resistance measurements. Find competitive prices and genuine products for your electrical testing needs in Bangladesh today.



Key Features

  • Measure composite resistivity [Ωcm]
  • Measure interface resistance between the composite layer and current collector [Ωcm^2]

Basic specifications

RM2611 Electrode Resistance Meter requires regular calibration. For more information about calibration, please contact your authorized Hioki distributor or reseller.

Measurement target Positive and negative electrode sheets for rechargeable lithium-ion batteries
Measurement parameters Composite resistivity [Ωcm]
Interface resistance (contact resistance) between the composite layer and current collector [Ωcm^2]
Computation method Inverse problem analysis of potential distribution using the finite volume method
Information necessary for computation • Composite layer thickness [μm] (for 1 side)
• Current collector thickness [μm]
• Current collector volume resistivity [Ωcm]
Measurement time - Contact check + potential measurement : approx. 30 sec.
- Calculation : approx. 35 sec. (on a PC with Intel core i5-7200U CPU)
The measurement time may vary depending on the measurement target and the processing capacity of the PC.
Measurement current 1 μA (min.) to 10 mA (max.)
Number of probes 46
Recommended PC specifications CPU: 4 or more threads
RAM: 8 GB or greater (4 GB required)
Operating system: Windows 7 (64-bit), 8 (64-bit), 10 (64-bit)
Temperature measurement function Measures temperature near the test fixture
Included accessories TEMPERATURE SENSOR Z2001 ×1, USB cable ×1, USB license key ×1, Probe check board ×1, Power cord ×1, Instruction manual ×1
Included accessories TEMPERATURE SENSOR Z2001 ×1, USB cable ×1, USB license key ×1, Probe check board ×1, Power cord ×1, Instruction manual ×1
Included accessories TEMPERATURE SENSOR Z2001 ×1, USB cable ×1, USB license key ×1, Probe check board ×1, Power cord ×1, Instruction manual ×1

The RM2610 isolates and quantifies the resistance characteristics of electrode sheets, a major component of lithium-ion batteries (LIBs), as two components: the composite layer resistance and the interface resistance between the composite layer and collector.  The system allows users to visualize these two quantities by measuring the surface of the electrode sheet with a test fixture that consists of an array of test probes and then using proprietary analytical techniques to quantify them.

Get the best deal on HIOKI ELECTRODE RESISTANCE RM2610 Price in Bangladesh. Reliable, accurate, and durable, this tester ensures precise electrode resistance measurements. Find competitive prices and genuine products for your electrical testing needs in Bangladesh today.



Key Features

  • Measure composite resistivity [Ωcm]
  • Measure interface resistance between the composite layer and current collector [Ωcm^2]

Basic specifications

RM2611 Electrode Resistance Meter requires regular calibration. For more information about calibration, please contact your authorized Hioki distributor or reseller.

Measurement target Positive and negative electrode sheets for rechargeable lithium-ion batteries
Measurement parameters Composite resistivity [Ωcm]
Interface resistance (contact resistance) between the composite layer and current collector [Ωcm^2]
Computation method Inverse problem analysis of potential distribution using the finite volume method
Information necessary for computation • Composite layer thickness [μm] (for 1 side)
• Current collector thickness [μm]
• Current collector volume resistivity [Ωcm]
Measurement time - Contact check + potential measurement : approx. 30 sec.
- Calculation : approx. 35 sec. (on a PC with Intel core i5-7200U CPU)
The measurement time may vary depending on the measurement target and the processing capacity of the PC.
Measurement current 1 μA (min.) to 10 mA (max.)
Number of probes 46
Recommended PC specifications CPU: 4 or more threads
RAM: 8 GB or greater (4 GB required)
Operating system: Windows 7 (64-bit), 8 (64-bit), 10 (64-bit)
Temperature measurement function Measures temperature near the test fixture
Included accessories TEMPERATURE SENSOR Z2001 ×1, USB cable ×1, USB license key ×1, Probe check board ×1, Power cord ×1, Instruction manual ×1

Included accessories TEMPERATURE SENSOR Z2001 ×1, USB cable ×1, USB license key ×1, Probe check board ×1, Power cord ×1, Instruction manual ×1

Included accessories TEMPERATURE SENSOR Z2001 ×1, USB cable ×1, USB license key ×1, Probe check board ×1, Power cord ×1, Instruction manual ×1
