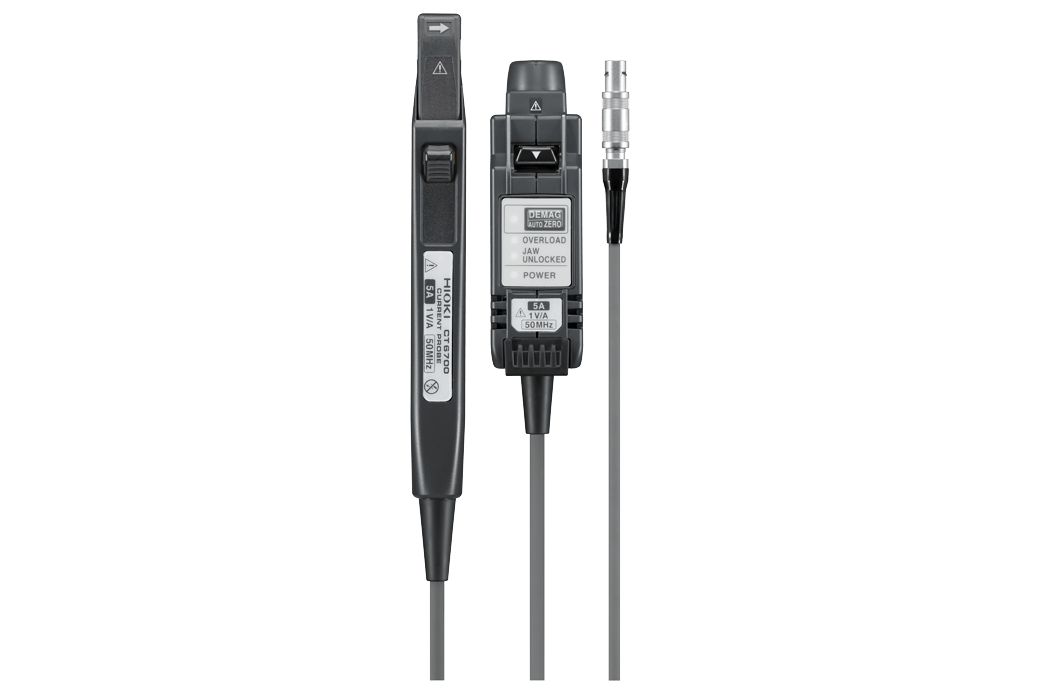

HIOKI CURRENT PROBE CT6700

Home › Hioki
Thumbnail
Shop : Tools Bangladesh
Product ID : 4339
Brand : Hioki
Availability : Out of Stock
Price BDT : Ask for Price
Reviews :
Share :
Request Quote

  • Customer Support

    +8801965656380

  • Cash One Delivery

    Pay after getting the product on hand

  • Warranty

    1 Year warranty by manufacturer

  • Secured Payment Method

    Your cart is always secure to shop

  • Easy Return Policy

    24 hours return without physical defect.

Hioki flat bandwidth current probes are best-in-class current sensors for use with Memory HiCorders and high performance oscilloscopes. The CT6700 is a high-sensitivity current probe that offers a wide DC to 50 MHz bandwidth and 5A of continuous input, and applications include capturing transient current signals from switching power supplies, inverters, and motor controllers. The probe is designed with a high permeability magnetic shield to reduce the effects of electric fields, making it ideal for measuring low currents or nearby high-current lines. HIOKI CURRENT PROBE CT6700 Price in Bangladesh reflects top-tier performance for precise current measurements in advanced electronics. Ideal for engineers, it ensures accuracy, speed, and reliability in testing. Whether for research or industrial use, HIOKI CURRENT PROBE CT6700 Price in Bangladesh guarantees exceptional value and dependable performance every time.

Key Features

  • Wide band: DC to 50 MHz (-3 dB)
  • High S/N characteristic ideal for ultra low 1 mA order current waveforms
  • Connect directly to an oscilloscope’s BNC input terminal (*1)

Basic specifications

Accuracy guaranteed: 1 year

Frequency bandwidth DC to 50 MHz (-3 dB)
Rise time 7.0 ns or shorter
Noise level 60 μA rms typical, 75 μA rms max (for 30 MHz band measuring instrument)
Continuous allowable input 5 A rms (DC, and sine wave, requires derating at frequency)
Max. allowable peak input ±7.5 A peak (non-continuous)
Amplitude accuracy Typ.: ±1% rdg. ±1 mV (DC, 45 to 66 Hz sine wave, 0 to 5 A rms)
Guaranteed: ±3% rdg. ±1 mV (DC, 45 to 66 Hz sine wave, 0 to 5 A rms)
Output rate 1 V/A (The output of this probe is internally terminated)
Measurable conductors Insulated conductor
Core diameter φ 5 mm (0.20 in)
Power supply ±12 V ±0.5 V, 3.2 VA
Dimensions and mass Sensor: 155 mm (6.10 in)W × 18 mm (0.71 in)H × 26 mm (1.02 in)D, Terminator: 29 mm (1.14 in)W × 83 mm (3.27 in)H × 40 mm (1.57 in)D mm, Mass: 250 g (8.8 oz), Sensor cable BNC terminal: 1.5 m (4.92 ft), Power cable: 1 m (3.28 ft), Power plug: FFA.0S.304.CLAC37Y / LEMO inc.
Included accessories Instruction manual ×1, Carrying case ×1
Included accessories Instruction manual ×1, Carrying case ×1
Included accessories Instruction manual ×1, Carrying case ×1

Hioki flat bandwidth current probes are best-in-class current sensors for use with Memory HiCorders and high performance oscilloscopes. The CT6700 is a high-sensitivity current probe that offers a wide DC to 50 MHz bandwidth and 5A of continuous input, and applications include capturing transient current signals from switching power supplies, inverters, and motor controllers. The probe is designed with a high permeability magnetic shield to reduce the effects of electric fields, making it ideal for measuring low currents or nearby high-current lines. HIOKI CURRENT PROBE CT6700 Price in Bangladesh reflects top-tier performance for precise current measurements in advanced electronics. Ideal for engineers, it ensures accuracy, speed, and reliability in testing. Whether for research or industrial use, HIOKI CURRENT PROBE CT6700 Price in Bangladesh guarantees exceptional value and dependable performance every time.

Key Features

  • Wide band: DC to 50 MHz (-3 dB)
  • High S/N characteristic ideal for ultra low 1 mA order current waveforms
  • Connect directly to an oscilloscope’s BNC input terminal (*1)

Basic specifications

Accuracy guaranteed: 1 year

Frequency bandwidth DC to 50 MHz (-3 dB)
Rise time 7.0 ns or shorter
Noise level 60 μA rms typical, 75 μA rms max (for 30 MHz band measuring instrument)
Continuous allowable input 5 A rms (DC, and sine wave, requires derating at frequency)
Max. allowable peak input ±7.5 A peak (non-continuous)
Amplitude accuracy Typ.: ±1% rdg. ±1 mV (DC, 45 to 66 Hz sine wave, 0 to 5 A rms)
Guaranteed: ±3% rdg. ±1 mV (DC, 45 to 66 Hz sine wave, 0 to 5 A rms)
Output rate 1 V/A (The output of this probe is internally terminated)
Measurable conductors Insulated conductor
Core diameter φ 5 mm (0.20 in)
Power supply ±12 V ±0.5 V, 3.2 VA
Dimensions and mass Sensor: 155 mm (6.10 in)W × 18 mm (0.71 in)H × 26 mm (1.02 in)D, Terminator: 29 mm (1.14 in)W × 83 mm (3.27 in)H × 40 mm (1.57 in)D mm, Mass: 250 g (8.8 oz), Sensor cable BNC terminal: 1.5 m (4.92 ft), Power cable: 1 m (3.28 ft), Power plug: FFA.0S.304.CLAC37Y / LEMO inc.
Included accessories Instruction manual ×1, Carrying case ×1

Included accessories Instruction manual ×1, Carrying case ×1

Included accessories Instruction manual ×1, Carrying case ×1
