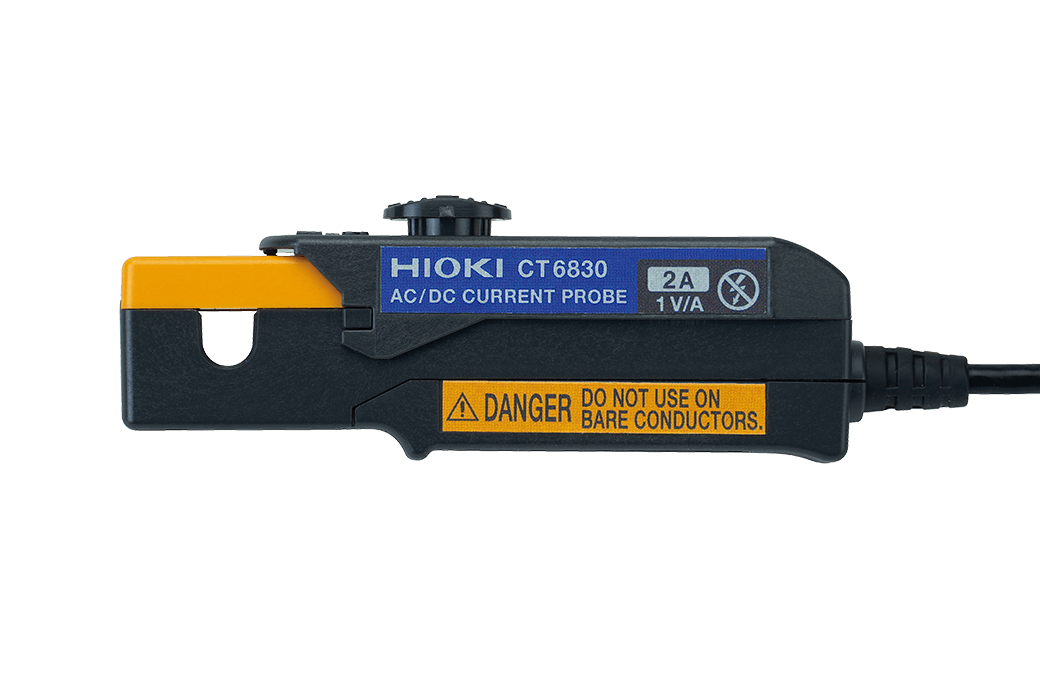

HIOKI AC, DC CURRENT PROBE CT6830 Price in Bangladesh offers exceptional accuracy and reliability for electrical current measurements. This advanced current probe supports a wide measurement range for both AC and DC currents, making it ideal for professionals in electrical testing and maintenance. Its compact design ensures ease of use in tight spaces, while the durable build guarantees long-lasting performance. Available at competitive prices in Bangladesh, the CT6830 enhances your testing capabilities with high sensitivity and noise resistance. Choose the HIOKI AC, DC CURRENT PROBE CT6830 for precise current measurements at the best price in Bangladesh.
Key Feature
- Exceptional performance in a compact package
- Easy to install in confined locations with complex wiring
- Rated current: 2 A AC/DC
Basic specifications
Accuracy guaranteed: 1 year
| Rated measurement current |
2 A AC/DC |
| Max. allowable input |
3 A rms continuous (±4.3 Ap) |
| Bandwidth |
DC to 100 kHz |
| Basic accuracy |
DC± 0.3％ rdg. ±0.1％ f.s. |
| Core diameter |
φ 5 mm or less |

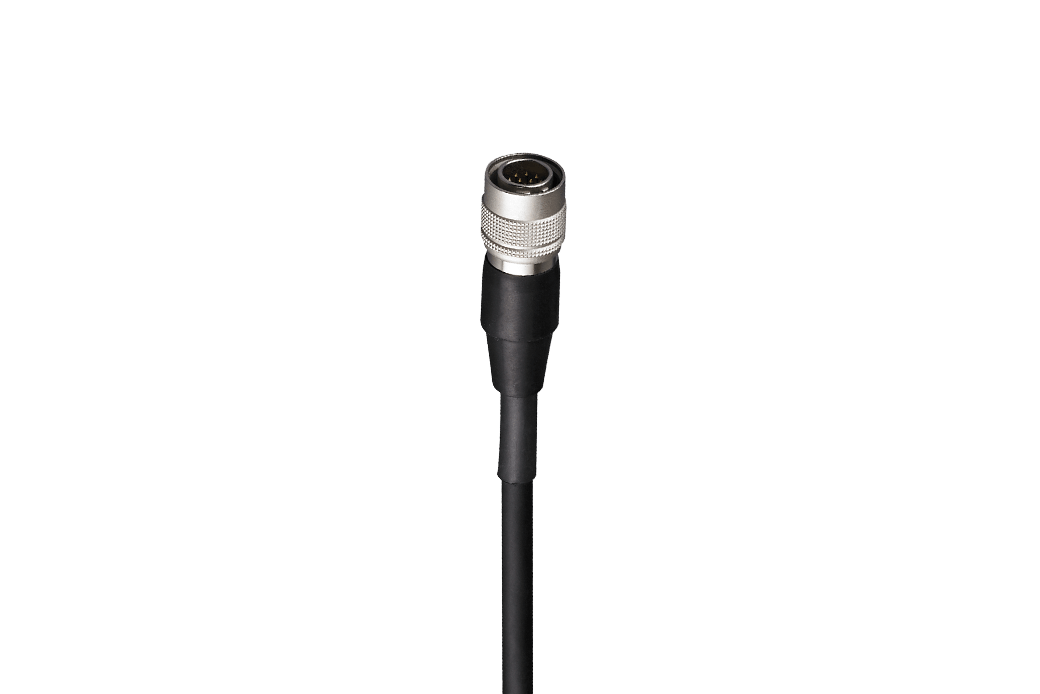

| Output connectors |
HIOKI ME15W |
| Memory function |
Instruments with a memory function can load the sensor information of the device
Compatible model: PW8001 |
| Operating temperature range |
Sensor: -40°C to 85°C, 80% RH or less (non-condensing)
Relay box: -25°C to 50°C, 80% RH or less (non-condensing) |
| Dimensions |
Sensor: 76.5W × 23.4H ×14.2D mm (excluding protrusions and the cable)
Relay box: 80W × 20H × 26.5D mm (excluding protrusions and the cable) |
| Weight |
160 g |
| Output cable length |
4 m (between sensor and relay box), 0.2 m (between relay box and output connector) |
| Included accessories |
Colored labels (for channel identification), Carrying case, Instruction Manual, Operating Precautions |
| Included accessories |
Colored labels (for channel identification), Carrying case, Instruction Manual, Operating Precautions |
| Included accessories |
Colored labels (for channel identification), Carrying case, Instruction Manual, Operating Precautions |
