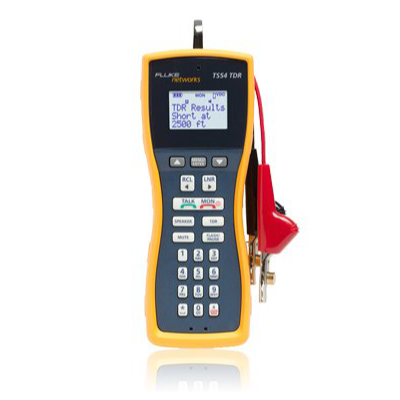

Fluke TS® 54 TDR Test Set

Product Highlights

A three-in-one—TDR, toner and pair identifier—premium, VDV telephone test set..

Ten testing functions include:

• TDR – find cable length measurement and locate faults on virtually all types of cable including twisted pair, coaxial, and parallel conductors
• Toner – five separate tones for fast and easy differentiation between multiple wire pairs
• SmartTone® – short the correct pair and tone changes for exact pair identification
• Data indication – warns when data is present on the line
• Voltage indication/measurement – identifies potential line problems

• Current (mA) indication/measurement – verifies sufficient line current
• Caller-ID with Call Waiting CID – verifies functional service
• DTMF Digit Grabbing – isolates faulty customer premise equipment
• Detects dial tone, places and receives calls
• Polarity

Key Specifications

Testing Functions:

• TDR (Time Domain Reflectometer): Measures cable length and locates faults on twisted pair, coaxial, and parallel conductors.

• Toner: Generates five distinct tones for easy differentiation between wire pairs.

• SmartTone®: Changes tone when the correct pair is shorted, aiding in precise pair identification.

• Data Indication: Warns when data is present on the line.

• Voltage Indication/Measurement: Identifies potential line problems.

• Current (mA) Indication/Measurement: Verifies sufficient line current.

• Caller-ID with Call Waiting CID: Verifies functional service.

• DTMF Digit Grabbing: Isolates faulty customer premise equipment.

• Dial Tone Detection: Detects dial tone, places, and receives calls.

• Polarity: Checks line polarity.

Durability Features:

• DropSafe™ PRO: Passed a 20-foot drop test onto concrete.

• RainSafe™ PRO: Protection for extreme weather conditions.

• DataSafe™ PRO: Prevents disruption of data transmission on the line.

User Interface:

• High-visibility keypad with glow-in-the-dark keys.

• Extra-large, backlit LCD screen.

• Familiar, cell phone-like menu and user interface.

• Two-way, hands-free speakerphone.

• Optional headset.

Models & Accessories:

• TS54-A-09-TDR: Test Set + TDR, ABN with Piercing Pin.

• TS54-BANA: Test Set + TDR, 4 MM Banana, Extra-large Alligator Clips, Test Probe.

• BELTCLIP-TS: Belt Clip.

• LEAD-PIRC-PIN: Test Leads with Piercing Pin Clips.

• LEAD-CO-346A: Test Leads with a 346A Plug for the Central Office.

• LEAD-ABN-PPIN: Test Leads with Angled Bed-of-Nails (ABN) and Piercing Pin Clips.
