Product Highlights

The TS52 PRO telephone Test Set features backlit LCD and glow-in-the-dark keypad.

• Display—backlit LCD and glow-in-the-the dark keypad
• DataSafe Pro—superior high-impedance monitoring, lockout and override, making you completely safe in any mode
• DropSafe—passes 20-foot drop test
• DSL/POTS Filtering Technology—allows technicians to clip on a live DSL line to test POTS service without downing or disrupting data service
• RainSafe–designed for use in rain conditions.

• 2-way hands-free speakerphone—for true hands-free conversation
• Test Functions
  • Data indication—warns when data is present.
  • Voltage indication—troubleshooting feature to identify potential line problems
  • Current (mA) indication—verifies sufficient line current
  • Caller-ID—verifies service is functional
  • DTMF Digit Grabbing—isolate faulty customer premise equipment

Specifications

• Display & Interface:

  • Backlit LCD screen for clear visibility in low-light conditions.

  • Glow-in-the-dark keypad for enhanced usability in dark environments.

• Safety & Durability:

  • DataSafe™ Pro technology ensures high-impedance monitoring, preventing accidental service disruptions.

  • Data lockout and lockout override features for added safety.

  • DropSafe™ design passes a 20-foot drop test, ensuring robustness.

  • RainSafe™ construction allows for use in wet conditions.

• Testing Capabilities:

  • Detects data presence to prevent interference with active data lines.

  • Voltage indication to identify potential line issues.

  • Current (mA) indication to verify sufficient line current.

  • Caller-ID verification to ensure service functionality.

  • DTMF Digit Grabbing to isolate faulty customer premise equipment.

• Communication Features:

  • 2-way hands-free speakerphone for true hands-free conversation.

  • Line and battery-powered operation, sharing power from the telephone line and a 9V internal battery.

  • Replaceable heavy-duty braided cord and locking spring-loaded belt clip for convenience.

• Additional Features:

  • Low battery and mute indications for user awareness.

  • Polarity indication in talk mode.

  • Tone & pulse dialing capabilities.

  • Optional 1-way amplified speakerphone mode.

  • Last number redial function for efficiency.

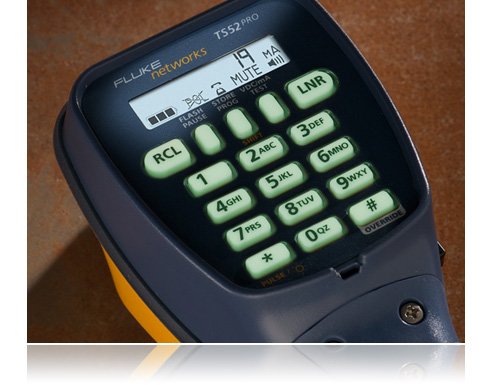

TS52 PRO test set with piercing pin clips

TS52 PRO test set with piercing pin clips
