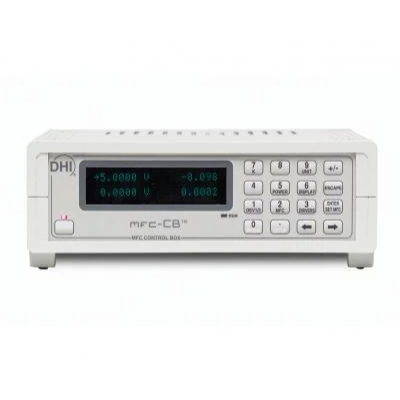

Fluke MFC-CB Control Box

Home › Fluke
Thumbnail
Shop : Tools Bangladesh
Product ID : 3994
Brand : Fluke
Availability : In Stock (1)
Price BDT : Ask for Price
Reviews :
Share :
Request Quote

  • Customer Support

    +8801965656380

  • Cash One Delivery

    Pay after getting the product on hand

  • Warranty

    1 Year warranty by manufacturer

  • Secured Payment Method

    Your cart is always secure to shop

  • Easy Return Policy

    24 hours return without physical defect.

Product overview: MFC-CB Control Box

Features

  • Set and read 0 to 5 V or 4 to 20 mA on two (2) channels simultaneously
  • Complete front panel local control and remote operation via RS-232 and IEEE-488 interfaces
  • Includes advanced features such as two (2) channel sum, difference and ratio
  • Displays in V, mA, % FS and flow units
  • Handles gas conversion (K) factors automatically
  • Switch each channel between five (5) channels using an MFC Switchbox™
  • Common look, feel and protocol with other molbloc/ molbox™ flow products
  • Compatible with COMPASS® for molbox software to set up automated molbloc/molbox based flow systems

Product overview: MFC-CB Control Box

Features

  • Set and read 0 to 5 V or 4 to 20 mA on two (2) channels simultaneously
  • Complete front panel local control and remote operation via RS-232 and IEEE-488 interfaces
  • Includes advanced features such as two (2) channel sum, difference and ratio
  • Displays in V, mA, % FS and flow units
  • Handles gas conversion (K) factors automatically
  • Switch each channel between five (5) channels using an MFC Switchbox™
  • Common look, feel and protocol with other molbloc/ molbox™ flow products
  • Compatible with COMPASS® for molbox software to set up automated molbloc/molbox based flow systems

Specifications: MFC-CB Control Box

General specifications
Power requirements 100 V to 240 V ac, 50 Hz to 60 Hz, 38 VA max. consumption
Power supply output ± 15 V dc @ 1 Amp max, 0.5 Amp per channel
Weight 2 kg (4.4 lb)
Dimensions (W x H x D) 22.5 cm x 7.5 cm x 20.0 cm
(8.85 in x 2.95 in x 7.87 in)
MFC connectors (2) 25 pin female DSUB metal case socket
Valve driver option (8) 12 V outputs
Voltage range 0 dc to 6 V dc
Current range 4 mA to 20 mA
Voltage output Resolution: 0.1 mV dc
Uncertainty: ± 0.015 % FS
Voltage measurement Resolution: 0.1 mV dc
Uncertainty: ± 0.015 % FS
Current Output Resolution: 0.4 μA
Uncertainty: ± 0.025 % FS
Current Measurement Resolution: 0.4 μA
Uncertainty: ± 0.025 % FS

N/A

N/A

Product overview: MFC-CB Control Box

Features

  • Set and read 0 to 5 V or 4 to 20 mA on two (2) channels simultaneously
  • Complete front panel local control and remote operation via RS-232 and IEEE-488 interfaces
  • Includes advanced features such as two (2) channel sum, difference and ratio
  • Displays in V, mA, % FS and flow units
  • Handles gas conversion (K) factors automatically
  • Switch each channel between five (5) channels using an MFC Switchbox™
  • Common look, feel and protocol with other molbloc/ molbox™ flow products
  • Compatible with COMPASS® for molbox software to set up automated molbloc/molbox based flow systems

Product overview: MFC-CB Control Box

Features

  • Set and read 0 to 5 V or 4 to 20 mA on two (2) channels simultaneously
  • Complete front panel local control and remote operation via RS-232 and IEEE-488 interfaces
  • Includes advanced features such as two (2) channel sum, difference and ratio
  • Displays in V, mA, % FS and flow units
  • Handles gas conversion (K) factors automatically
  • Switch each channel between five (5) channels using an MFC Switchbox™
  • Common look, feel and protocol with other molbloc/ molbox™ flow products
  • Compatible with COMPASS® for molbox software to set up automated molbloc/molbox based flow systems

Specifications: MFC-CB Control Box

General specifications
Power requirements 100 V to 240 V ac, 50 Hz to 60 Hz, 38 VA max. consumption
Power supply output ± 15 V dc @ 1 Amp max, 0.5 Amp per channel
Weight 2 kg (4.4 lb)
Dimensions (W x H x D) 22.5 cm x 7.5 cm x 20.0 cm
(8.85 in x 2.95 in x 7.87 in)
MFC connectors (2) 25 pin female DSUB metal case socket
Valve driver option (8) 12 V outputs
Voltage range 0 dc to 6 V dc
Current range 4 mA to 20 mA
Voltage output Resolution: 0.1 mV dc
Uncertainty: ± 0.015 % FS
Voltage measurement Resolution: 0.1 mV dc
Uncertainty: ± 0.015 % FS
Current Output Resolution: 0.4 μA
Uncertainty: ± 0.025 % FS
Current Measurement Resolution: 0.4 μA
Uncertainty: ± 0.025 % FS

N/A

N/A
