Fluke IntelliTone™ Pro 200 LAN Toner, Tracer and Probe

Product Highlights

Digital network cable toner and probe traces and locates cables on active networks.

IntelliTone digital toning technology:

• Ends network cable location confusion, decisively rejects noise and false signals.

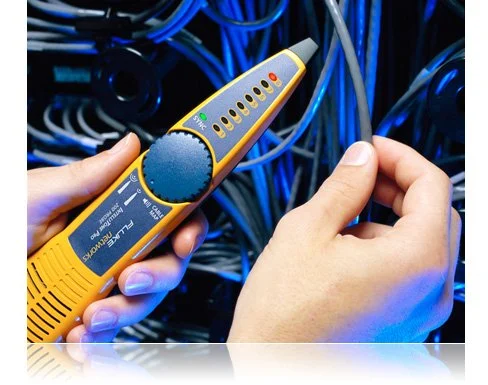

• Network cable tracer locates cables on active networks, even when terminated at a switch.
• Isolates cable and wiring within a bundle, despite cable bleed.
• Confirms cable location, verifies cable continuity, and detects cable faults (opens, shorts, and reversed pairs) in one step.
• Signal strength indicator LEDs help you identify one cable that is bundled with other cables.
• Probe has built-in pair tester to identify open, shorted, and crossed pairs.

SmartTone® analog toning technology:

• Isolates individual wire pairs precisely by changing tone when shorted.
• Effectively traces and locates voice, audio, and video cabling.

General Specifications

• Operating Temperature: 32 °F to 104 °F (0 °C to 40 °C)

• Storage Temperature: –4 °F to +140 °F (–20 °C to 60 °C)

• Operating Humidity: 95 % RH at 50–95 °F (10–35 °C); 75 % RH at 95–104 °F (35–40 °C); non-condensing

• Vibration: Random, 2 g, 5–500 Hz

• Shock: 1 m drop test

• Altitude: Up to 3000 m

• Safety Certification: EN 61010-1

• EMC: EN 61326-1, FCC Part 15 B

• Battery Type & Life: 9 V alkaline (NEDA 1604A/IEC 6LR61); approx. 20 hours typical

Toner Specifications

• Dimensions: 5.54 in × 2.94 in × 1.25 in (14.1 × 7.5 × 3.2 cm)

• Controls: LED display + thumbwheel switch

• Interfaces:

  • RJ‑45 (Mod8) for UTP/STP (all 4 pairs)

  • F‑connector for coax

  • Banana‑jack plugs (2‑wire)

• Output:

  • Encoded digital IntelliTone™ signal

  • Analog SmartTone: 500–1200 Hz, 4 distinct tone "songs"

  • Output Power: ~5 V p‑p

• Auto Power‑Off: After ~2.5 hours idle

Probe Specifications

• Dimensions: 8.73 in × 1.88 in × 1.26 in (22.2 × 4.8 × 3.2 cm)

• Indicators: 8 signal-strength LEDs + SYNC (signal detection/battery) LED

• Audio:

  • Recognizes IntelliTone digital signal; plays digitally encoded audio

  • Analog SmartTone: detects 500–1200 Hz signals

• Controls: Thumbwheel switch, volume dial

• Interface: RJ‑45 (Mod8) jack for cable-map testing on all 4 pairs

• Auto Power‑Off: After ~1 hour idle

Kit Contents (MT‑8200‑60‑KIT)

• IntelliTone Pro 200 LAN Toner

• IntelliTone Pro 200 Probe

• Coax F‑connector adapter

• Two RJ‑11 & two RJ‑45 patch cables

• Test leads with alligator clips

• Two lanyards

• Quick‑start guide

• Two 9 V batteries

IntelliTone Pro 200 LAN Toner and Probe Kit Includes: IntelliTone 200 LAN Toner and 200 Probe, coax F connector adapter, (2) RJ11 and (2) RJ45 patch cables, test leads with alligator clips, (2) lanyards, quick start guide, and (2) 9-volt batteries
