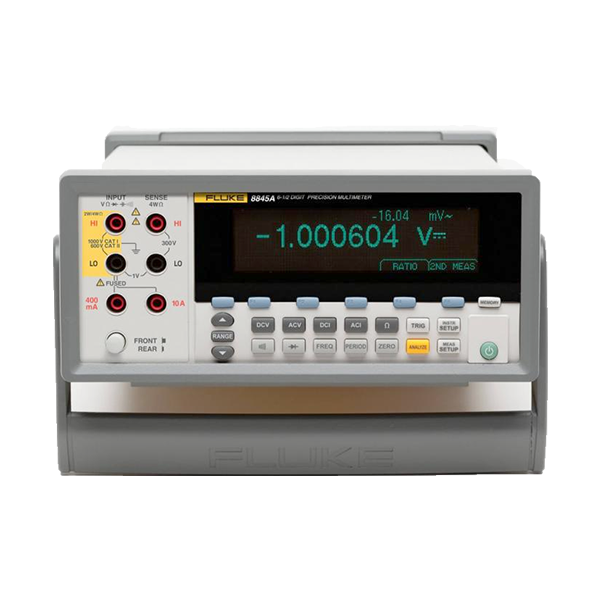

Model: Fluke 8845A 6.5 Digit Precision Multimeter

Fluke 8845A 6.5 digit multimeters have the precision and versatility to handle your most demanding measurements, on the bench or in a system. These DMMs are both high performance and feature-rich, yet also remarkably easy to use.

These desktop multimeters perform the functions you would expect to see in a multifunction DMM, including measuring volts, ohms, and amps. Basic V dc accuracy of up to 0.0024 %, 10 A current range, and a wide ohms range give you an unbeatable combination of measurement capability. Fluke 8845a will deliver an accurate result.

If you want to get Fluke 8845a you can buy it now from Tools Bangladesh, because, This product is not only Multimeter but also the value of this product you can't amazing when you use it on the spot.

Fluke 8845A 6.5 Digit Precision Multimeter

Key Features:

5 digit resolution
Basic V dc accuracy of up to 0.0024 %
Dual display
100 μA to 10 A current range, with up to 100 pA resolution
Wide ohms range from 10 Ω to 1 GΩ with up to 10 μΩ resolution
2 x 4 ohms 4-wire measurement technique
Both models measure frequency and period
8846A also measures capacitance and temperature
USB memory drive port (8846A)
Fluke 45 and Agilent 34401A emulation
Graphical display
Trendplot™ paperless recorder mode, statistics, histogram
CAT I 1000 V, CAT II 600 V
Three-year warranty

Specifications: Fluke 8845A 6.5 Digit Precision Multimeter

Technical Specifications

Display

VFD Dot Matrix

Resolution

6.5 Digits

V DC

Ranges:	100 mV to 1000 V
Max. Resolution:	100 nV
Accuracy:	8845A: 0.0035 + 0.0005 (% measurement + % of range)
	8846A: 0.0024 + 0.0005 (% measurement + % of range)

V AC

Ranges:	8845A: 100 mV to 750 V
	8846A: 100 mV to 1000 V
Max. Resolution:	100 nV
Accuracy:	8845A: 0.06 + 0.03 (% measurement + % of range)
	8846A: 0.06 + 0.03 (% measurement + % of range)
Frequency:	3 Hz to 300 KHz

Resistance

2x4 Wire:	Yes
Ranges:	8845A: 100 Ω to 100 MΩ
	8846A: 10 Ω to 1 GΩ
Max. Resolution:	8845A: 100 μΩ
	8846A: 10 μΩ
Accuracy:	8845A: 0.010 + 0.001 (% measurement + % of range)
	8846A: 0.010 + 0.001 (% measurement + % of range)

A DC

Ranges:	100 μA to 10 A
Max. Resolution:	100 pA
Accuracy:	0.050 + 0.005 (% measurement + % of range)

A AC

Ranges:	8845A: 10 mA to 10 A
	8846A: 100 mA to 10 A
Max. Resolution:	8845A: 10 nA
	8846A: 100 pA
Accuracy:	0.10 + 0.04 (% measurement + % of range)
Frequency:	3 Hz to 10 kHz

Freq/Period

Ranges:	8845A: 3 Hz to 300 kHz
	8846A: 3 Hz to 1 MHz
Max. Resolution:	1 μHz
Accuracy:	0.01 %

Continuity/ Diode Test

Yes

Capacitance

Ranges:	8846A: 1 nF to 0.1 F
Max. Resolution:	8846A: 1 pf
Accuracy:	8846A: 1 %

Temperature

Type:	8846A: Platinum RTD
Ranges:	8846A: -200 °C to +600 °
Max. Resolution:	8846A: 0.01 °
Accuracy:	8846A: 0.06 °

Math Functions

	NULL, Min/Max/Average, Std Dev
dB/dBm:	Yes

Advanced Functions

Statistics/Histogram:	Yes
Trendplot:	Yes
Limit Test:	Yes

Input Output

USB Memory:

8846A: USB memory drive port

Real Time Clock:

8846A: Yes

Interfaces:

RS 232, IEE-488.2, Ethernet, USB (with optional adaptor)

Fluke 8845A 6.5 Digit Precision Multimeter

Includes:

Model Name	Description
Fluke 8845A	6.5 digit Precision Multimeter, 35 ppm Includes: TL71 Test Lead Set, Premium DMM LCI Line Cord USB to RS232 Cable Adapter Statement of Calibration Practices WEEE Information Sheet Warranty Information Programmer, Users and Service Manuals (CD-ROM) FlukeView Forms – Basic for 8845/8846
Fluke 8846A	6.5 digit Precision Multimeter, 24 ppm USB mem Includes: TL71 Test Lead Set, Premium DMM LCI Line Cord USB to RS232 Cable Adapter Statement of Calibration Practices WEEE Information Sheet Warranty Information Programmer, Users and Service Manuals (CD-ROM) FlukeView Forms – Basic for 8845/8846

Accessories common to all models: Fluke 8845A 6.5 Digit Precision Multimeter

Accessory	Description
FVF-UG	FlukeView Forms for 8845/8846 Software Upgrade
FVF-SC5	FlukeView Forms, Basic Software Includes: CD for FlukeView Forms Basic Users manual, registration card, and software license agreement
FVF-SC4	FlukeView Forms with Cable for 8845/8846
Y8022	Shielded IEEE-488 Cable, 2m
Y8021	Shielded IEEE-488 Cable, 1m
RS43	RS-232 Cable (RS43, 2 m)
Y8846S	Rack Mount Kit, Single
Y8846D	Rack Mount Kit, Dual, 19-inch
884X-USB	USB to RS232 Cable Adapter
884x-CASE	Molded Plastic Case
TL80A	Basic Electronic Test Lead Set
TL2x4W-PTII	2X4-Wire Ohms Test Lead
884X-SHORT	4-Wire Short
884X-RTD	100 Ohm RTD Temperature Probe
8845A-TPIT	Test Probe IC Tip Set (red and black)
8845A-EFPT	Extended Fine Point Tip Adapter Set (red and black)
TL910	Electronic Test Probes
TP912	Replacement Tips for TL910
TL71	Test Lead Set
TL2X4W-TWZ	2X4-Wire Ohms Tweezers Test Leads
884X-1G	USB Memory 1 GB
884X-512M	USB Memory 512 MB
FUSE	Fuse, 440 mA, 1000 V, Fast, 0.406 in x 1.375 in, Bulk
FUSE	FUSE, 11 A, 1000 V, Fast, 406 in x 1.5 in, Bulk
FlukeView Forms	FlukeView Forms Software
Silver CarePlan	Fluke Calibration Silver care plans are available for most calibration products. Please contact your local Fluke Calibration sales representative for details or to request a quote.
