Model: Fluke 753 Documenting Process Calibrator

Fluke 753 Documenting Process Calibrator full-featured documenting process calibrator for calibrating and troubleshooting.

The Fluke 753 is a powerful multifunction documenting calibrator that lets you download procedures, lists, and instructions created with software, and upload data for printing, archiving, and analysis.

You'll find it does the work of several tools, with simultaneous source and measurement capabilities for all common process parameters

We don't believe that this is the incredible performance and reasonable price in Bangladesh.

Not only this performance but also we are providing free shipping anywhere in Bangladesh.

Get it through the Tools Bangladesh.

Key features: Fluke 753 Documenting Process Calibrator

  • Full-featured documenting process calibrator for calibrating and troubleshooting
  • Measures volts, mA, RTDs, thermocouples, frequency, and ohms to test sensors, transmitters and other instruments
  • Sources and simulate volts, mA, pressure, thermocouples, RTDs, frequency, ohms, and pressure to calibrate transmitters
  • Powers transmitters during test using loop supply with simultaneous mA measurement

Specifications: Fluke 753 Documenting Process Calibrator

Measurement Accuracy
Voltage DC Range /Resolution 1 Year 2 Years
100.000 mV 0.02% + 0.005 mV 0.03% + 0.005 mV
3.00000 V 0.02% + 0.00005 V 0.03% + 0.00005 V
30.0000 V 0.02% + 0.0005 V 0.03% + 0.0005 V
300.00 V 0.05% + 0.05 V 0.07% + 0.05 V
Voltage AC 3.000 V (40 Hz to 500 Hz) / 0.001 V 0.5% + 0.002 V 1.0% + 0.004 V
30.00 V (40 Hz to 500 Hz) / 0.01 V 0.5% + 0.02 V 1.0% + 0.04 V
300.0 V (40 Hz to 500 Hz) / 0.1 V 0.5% + 0.2 V 1.0% + 0.2 V
Current DC 30.000 mA 0.01% + 5 uA 0.015% + 7 uA
110.00 mA 0.01% + 20 uA 0.015% + 30 uA
Resistance 10.000 Ω 0.05% + 50 mΩ 0.07% + 70 mΩ
100.00 Ω 0.05% + 50 mΩ 0.07% + 70 mΩ
1.0000 kΩ 0.05% + 500 mΩ 0.07% + 0.5 Ω
10.000 kΩ 0.1% + 10 Ω 0.15% + 15 Ω
Frequency 1.00 to 110.00 Hz / 0.01 Hz   0.05 Hz
110.1 to 1100.0 Hz / 0.1 Hz   0.5 Hz
1.101 to 11.000 kHz / 0.001 kHz   0.005 kHz
11.01 to 50.00 kHz / 0.01 kHz   0.05 kHz
Source Accuracy
    1 Year 2 Years
Voltage DC 100.000 mV 0.01% + 0.005 mV 0.015% + 0.005 mV
1.00000 V 0.01% + 0.00005 V 0.015% + 0.0005 V
15.0000 V 0.01% + 0.0005 V 0.015% + 0.0005 V
Current DC 22.000 mA (source) 0.01% + 0.003 mA 0.02% + 0.003 mA
Current sink (simulate) 0.02% + 0.007 mA 0.04% + 0.007 mA
Resistance 10.000 Ω 0.01% + 10 mΩ 0.015% + 15 mΩ
100.00 Ω 0.01% + 20 mΩ 0.015% + 30 mΩ
1.0000 kΩ 0.02% + 0.2 Ω 0.03% + 0.3 Ω
10.000 kΩ 0.02% + 3 Ω 0.03% + 5 Ω
Frequency 0.1 to 10.99 Hz   0.01 Hz
0.01 to 10.99 Hz   0.01 Hz
11.00 to 109.99 Hz   0.1 Hz
110.0 to 1099.9 Hz   0.1 Hz
1.100 to 21.999 kHz   0.002 kHz
22.000 to 50.000 kHz   0.005 kHz
Technical Data
Data log functions Measure functions Voltage, current, resistance, frequency, temperature, pressure
Reading rate 1, 2, 5, 10, 20, 30, or 60 readings/minute
Maximum record length 8000 readings (7980 for 30 or 60 readings/minute)
Ramp functions Source functions Voltage, current, resistance, frequency, temperature
Rate 4 steps/second
Trip detect Continuity or voltage (continuity detection not available when sourcing current)
Loop power function Voltage Selectable, 26 V
Accuracy 10%, 18 V minimum at 22 mA
Maximum current 25 mA, short circuit protected
Maximum input voltage 50 V DC
Step functions Source functions Voltage, current, resistance, frequency, temperature
Manual step Selectable step, change with arrow buttons
Autostep Fully programmable for function, start delay, stepvalue, time per step, repeat
Environmental Specifications
Operating temperature -10°C to +50°C
Storage temperature -20°C to +60°C
Dust/water resistance Meets IP52, IEC 529
Operating altitude 3000 m above mean sea level (9842 ft)
Safety Specifications
Agency approvals CAN/CSA C22.2 No 1010.1-92, ASNI/ISA S82.01-1994, UL3111, and EN610-1:1993
Mechanical and General Specifications
Size 136 x 245 x 63 mm (5.4 x 9.6 x 2.5 in)
Weight 1.2 kg (2.7 lb)
Batteries Internal Battery Pack Li-ion: 7.2 V, 4400 mAh, 30 Wh
Battery life > 8 hours typical
Battery replacement Via snap-shut door without opening calibrator; no tools required
Side port connections Pressure module connector
USB Connector to interface to your PC
Connection for optional battery charger/eliminator
Data storage capacity 1 week of calibration procedures results
90 day specifications The standard specification interval for the 750 Series are 1 and 2 years.
Typical 90 day measurement and source accuracy can be estimated by dividing the one year "% of reading" or "% of output" specifications by 2.
Floor specifications, expressed as "% of full scale" or "counts" or "ohms" remain constant.
Temperature, Resistance Temperature Detectors
Degrees or % of reading - Type (α) Range °C Measure °C1
  1 year 2 year
100 Ω Pt (385) -200 to 100
100 to 800		 0.07°C
0.02% + 0.05°C		 0.14°C
0.04% + 0.10°C
200 Ω Pt (385) -200 to 100
100 to 630		 0.07°C
0.02% + 0.05°C		 0.14°C
0.04% + 0.10°C
500 Ω Pt (385) -200 to 100
100 to 630		 0.07°C
0.02% + 0.05°C		 0.14°C
0.04% + 0.10°C
1000 Ω Pt (385) -200 to 100
100 to 630		 0.07°C
0.02% + 0.05°C		 0.14°C
0.04% + 0.10°C
100 Ω Pt (3916) -200 to 100
100 to 630		 0.07°C
0.02% + 0.05°C		 0.14°C
0.04% + 0.10°C
100 Ω Pt (3926) -200 to 100
100 to 630		 0.08°C
0.02% + 0.06°C		 0.16°C
0.04% + 0.12°C
10 Ω Cu (427) -100 to 260 0.2°C 0.4°C
120 Ω Ni (672) -80 to 260 0.1°C 0.2°C
Source current Source °C Allowable current2
  1 year 2 year
1 mA 0.05°C
0.0125% + 0.04°C		 0.10°C
0.025% + 0.08°C		 0.1 mA to 10 mA
500 μA 0.06°C
0.017% + 0.05°C		 0.12°C
0.034% + 0.10°C		 0.1 mA to 1 mA
250 μA 0.06°C
0.017% + 0.05°C		 0.12°C
0.034% + 0.10°C		 0.1 mA to 1 mA
150 μA 0.06°C
0.017% + 0.05°C		 0.12°C
0.034% + 0.10°C		 0.1 mA to 1 mA
1 mA 0.05°C
0.0125% + 0.04°C		 0.10°C
0.025% + 0.08°C		 0.1 mA to 10 mA
1 mA 0.05°C
0.0125% + 0.04°C		 0.10°C
0.025% + 0.08°C		 0.1 mA to 10 mA
3 mA 0.2°C 0.4°C 0.1 mA to 10 mA
1 mA 0.04°C 0.08°C 0.1 mA to 10 mA
1. For two and three-wire RTD measurements, add 0.4°C to the specifications.
2. Supports pulsed transmitters and PLCs with pulse times as short as 1 ms
Temperature, Thermocouples
Type Source °C Measure °C Source °C
    1 year 2 years 1 year 2 years
E -250 to -200 1.3 2.0 0.6 0.9
-200 to -100 0.5 0.8 0.3 0.4
-100 to 600 0.3 0.4 0.3 0.4
600 to 1000 0.4 0.6 0.2 0.3
N -200 to -100 1.0 1.5 0.6 0.9
-100 to 900 0.5 0.8 0.5 0.8
900 to 1300 0.6 0.9 0.3 0.4
J -210 to -100 0.6 0.9 0.3 0.4
-100 to 800 0.3 0.4 0.2 0.3
800 to 1200 0.5 0.8 0.3 0.3
K -200 to -100 0.7 1.0 0.4 0.6
-100 to 400 0.3 0.4 0.3 0.4
400 to 1200 0.5 0.8 0.3 0.4
1200 to 1372 0.7 1.0 0.3 0.4
T -250 to -200 1.7 2.5 0.9 1.4
-200 to 0 0.6 0.9 0.4 0.6
0 to 400 0.3 0.4 0.3 0.4
B 600 to 800 1.3 2.0 1.0 1.5
800 to 1000 1.0 1.5 0.8 1.2
1000 to 1820 0.9 1.3 0.8 1.2
R -20 to 0 2.3 2.8 1.2 1.8
0 to 100 1.5 2.2 1.1 1.7
100 to 1767 1.0 1.5 0.9 1.4
S -20 to 0 2.3 2.8 1.2 1.8
0 to 200 1.5 2.1 1.1 1.7
200 to 1400 0.9 1.4 0.9 1.4
1400 to 1767 1.1 1.7 1.0 1.5
C 0 to 800 0.6 0.9 0.6 0.9
800 to 1200 0.8 1.2 0.7 1.0
1200 to 1800 1.1 1.6 0.9 1.4
1800 to 2316 2.0 3.0 1.3 2.0
L -200 to -100 0.6 0.9 0.3 0.4
-100 to 800 0.3 0.4 0.2 0.3
800 to 900 0.5 0.8 0.2 0.3

Includes: Fluke 753 Documenting Process Calibrator

  • BC7240 battery charger
  • Li-on BP7240 battery pack
  • DPCTrack 2™ Sample Software
  • Instruction manual
  • NIST-traceable calibration report and data
  • Three sets of TP220 test probes with three sets of “extended tooth"" alligator clips
  • Two sets AC280 hook clips
  • C799 Soft Field Case
  • USB communication cable

Accessories: Fluke 753 Documenting Process Calibrator

Chargers (1)

  • Fluke BC7240 Battery charger/Eliminator for 75x

Batteries (1)

  • Fluke BP7240 Li-Ion Battery Pack for 75x

Cases (1)

  • Fluke C550 Tool Bag

Clips (1)

Fluke AC220 SureGrip™ Alligator Clips

Pressure (1)

  • Fluke 700PCK Pressure Calibration Kit

Pumps (1)

  • Fluke 700 PMP Pressure Pump

Fluke calibration software (1)

  • Fluke 750 SW DPC/TRACK2 Software

Connectors (1)

  • Fluke 80CJ-M type J Male Mini-Connectors

Model: Fluke 753 Documenting Process Calibrator

Fluke 753 Documenting Process Calibrator full-featured documenting process calibrator for calibrating and troubleshooting.

The Fluke 753 is a powerful multifunction documenting calibrator that lets you download procedures, lists, and instructions created with software, and upload data for printing, archiving, and analysis.

You'll find it does the work of several tools, with simultaneous source and measurement capabilities for all common process parameters

We don't believe that this is the incredible performance and reasonable price in Bangladesh.

Not only this performance but also we are providing free shipping anywhere in Bangladesh.

Get it through the Tools Bangladesh.

Key features: Fluke 753 Documenting Process Calibrator

  • Full-featured documenting process calibrator for calibrating and troubleshooting
  • Measures volts, mA, RTDs, thermocouples, frequency, and ohms to test sensors, transmitters and other instruments
  • Sources and simulate volts, mA, pressure, thermocouples, RTDs, frequency, ohms, and pressure to calibrate transmitters
  • Powers transmitters during test using loop supply with simultaneous mA measurement

Specifications: Fluke 753 Documenting Process Calibrator

Measurement Accuracy
Voltage DC Range /Resolution 1 Year 2 Years
100.000 mV 0.02% + 0.005 mV 0.03% + 0.005 mV
3.00000 V 0.02% + 0.00005 V 0.03% + 0.00005 V
30.0000 V 0.02% + 0.0005 V 0.03% + 0.0005 V
300.00 V 0.05% + 0.05 V 0.07% + 0.05 V
Voltage AC 3.000 V (40 Hz to 500 Hz) / 0.001 V 0.5% + 0.002 V 1.0% + 0.004 V
30.00 V (40 Hz to 500 Hz) / 0.01 V 0.5% + 0.02 V 1.0% + 0.04 V
300.0 V (40 Hz to 500 Hz) / 0.1 V 0.5% + 0.2 V 1.0% + 0.2 V
Current DC 30.000 mA 0.01% + 5 uA 0.015% + 7 uA
110.00 mA 0.01% + 20 uA 0.015% + 30 uA
Resistance 10.000 Ω 0.05% + 50 mΩ 0.07% + 70 mΩ
100.00 Ω 0.05% + 50 mΩ 0.07% + 70 mΩ
1.0000 kΩ 0.05% + 500 mΩ 0.07% + 0.5 Ω
10.000 kΩ 0.1% + 10 Ω 0.15% + 15 Ω
Frequency 1.00 to 110.00 Hz / 0.01 Hz   0.05 Hz
110.1 to 1100.0 Hz / 0.1 Hz   0.5 Hz
1.101 to 11.000 kHz / 0.001 kHz   0.005 kHz
11.01 to 50.00 kHz / 0.01 kHz   0.05 kHz
Source Accuracy
    1 Year 2 Years
Voltage DC 100.000 mV 0.01% + 0.005 mV 0.015% + 0.005 mV
1.00000 V 0.01% + 0.00005 V 0.015% + 0.0005 V
15.0000 V 0.01% + 0.0005 V 0.015% + 0.0005 V
Current DC 22.000 mA (source) 0.01% + 0.003 mA 0.02% + 0.003 mA
Current sink (simulate) 0.02% + 0.007 mA 0.04% + 0.007 mA
Resistance 10.000 Ω 0.01% + 10 mΩ 0.015% + 15 mΩ
100.00 Ω 0.01% + 20 mΩ 0.015% + 30 mΩ
1.0000 kΩ 0.02% + 0.2 Ω 0.03% + 0.3 Ω
10.000 kΩ 0.02% + 3 Ω 0.03% + 5 Ω
Frequency 0.1 to 10.99 Hz   0.01 Hz
0.01 to 10.99 Hz   0.01 Hz
11.00 to 109.99 Hz   0.1 Hz
110.0 to 1099.9 Hz   0.1 Hz
1.100 to 21.999 kHz   0.002 kHz
22.000 to 50.000 kHz   0.005 kHz
Technical Data
Data log functions Measure functions Voltage, current, resistance, frequency, temperature, pressure
Reading rate 1, 2, 5, 10, 20, 30, or 60 readings/minute
Maximum record length 8000 readings (7980 for 30 or 60 readings/minute)
Ramp functions Source functions Voltage, current, resistance, frequency, temperature
Rate 4 steps/second
Trip detect Continuity or voltage (continuity detection not available when sourcing current)
Loop power function Voltage Selectable, 26 V
Accuracy 10%, 18 V minimum at 22 mA
Maximum current 25 mA, short circuit protected
Maximum input voltage 50 V DC
Step functions Source functions Voltage, current, resistance, frequency, temperature
Manual step Selectable step, change with arrow buttons
Autostep Fully programmable for function, start delay, stepvalue, time per step, repeat
Environmental Specifications
Operating temperature -10°C to +50°C
Storage temperature -20°C to +60°C
Dust/water resistance Meets IP52, IEC 529
Operating altitude 3000 m above mean sea level (9842 ft)
Safety Specifications
Agency approvals CAN/CSA C22.2 No 1010.1-92, ASNI/ISA S82.01-1994, UL3111, and EN610-1:1993
Mechanical and General Specifications
Size 136 x 245 x 63 mm (5.4 x 9.6 x 2.5 in)
Weight 1.2 kg (2.7 lb)
Batteries Internal Battery Pack Li-ion: 7.2 V, 4400 mAh, 30 Wh
Battery life > 8 hours typical
Battery replacement Via snap-shut door without opening calibrator; no tools required
Side port connections Pressure module connector
USB Connector to interface to your PC
Connection for optional battery charger/eliminator
Data storage capacity 1 week of calibration procedures results
90 day specifications The standard specification interval for the 750 Series are 1 and 2 years.
Typical 90 day measurement and source accuracy can be estimated by dividing the one year "% of reading" or "% of output" specifications by 2.
Floor specifications, expressed as "% of full scale" or "counts" or "ohms" remain constant.
Temperature, Resistance Temperature Detectors
Degrees or % of reading - Type (α) Range °C Measure °C1
  1 year 2 year
100 Ω Pt (385) -200 to 100
100 to 800		 0.07°C
0.02% + 0.05°C		 0.14°C
0.04% + 0.10°C
200 Ω Pt (385) -200 to 100
100 to 630		 0.07°C
0.02% + 0.05°C		 0.14°C
0.04% + 0.10°C
500 Ω Pt (385) -200 to 100
100 to 630		 0.07°C
0.02% + 0.05°C		 0.14°C
0.04% + 0.10°C
1000 Ω Pt (385) -200 to 100
100 to 630		 0.07°C
0.02% + 0.05°C		 0.14°C
0.04% + 0.10°C
100 Ω Pt (3916) -200 to 100
100 to 630		 0.07°C
0.02% + 0.05°C		 0.14°C
0.04% + 0.10°C
100 Ω Pt (3926) -200 to 100
100 to 630		 0.08°C
0.02% + 0.06°C		 0.16°C
0.04% + 0.12°C
10 Ω Cu (427) -100 to 260 0.2°C 0.4°C
120 Ω Ni (672) -80 to 260 0.1°C 0.2°C
Source current Source °C Allowable current2
  1 year 2 year
1 mA 0.05°C
0.0125% + 0.04°C		 0.10°C
0.025% + 0.08°C		 0.1 mA to 10 mA
500 μA 0.06°C
0.017% + 0.05°C		 0.12°C
0.034% + 0.10°C		 0.1 mA to 1 mA
250 μA 0.06°C
0.017% + 0.05°C		 0.12°C
0.034% + 0.10°C		 0.1 mA to 1 mA
150 μA 0.06°C
0.017% + 0.05°C		 0.12°C
0.034% + 0.10°C		 0.1 mA to 1 mA
1 mA 0.05°C
0.0125% + 0.04°C		 0.10°C
0.025% + 0.08°C		 0.1 mA to 10 mA
1 mA 0.05°C
0.0125% + 0.04°C		 0.10°C
0.025% + 0.08°C		 0.1 mA to 10 mA
3 mA 0.2°C 0.4°C 0.1 mA to 10 mA
1 mA 0.04°C 0.08°C 0.1 mA to 10 mA
1. For two and three-wire RTD measurements, add 0.4°C to the specifications.
2. Supports pulsed transmitters and PLCs with pulse times as short as 1 ms
Temperature, Thermocouples
Type Source °C Measure °C Source °C
    1 year 2 years 1 year 2 years
E -250 to -200 1.3 2.0 0.6 0.9
-200 to -100 0.5 0.8 0.3 0.4
-100 to 600 0.3 0.4 0.3 0.4
600 to 1000 0.4 0.6 0.2 0.3
N -200 to -100 1.0 1.5 0.6 0.9
-100 to 900 0.5 0.8 0.5 0.8
900 to 1300 0.6 0.9 0.3 0.4
J -210 to -100 0.6 0.9 0.3 0.4
-100 to 800 0.3 0.4 0.2 0.3
800 to 1200 0.5 0.8 0.3 0.3
K -200 to -100 0.7 1.0 0.4 0.6
-100 to 400 0.3 0.4 0.3 0.4
400 to 1200 0.5 0.8 0.3 0.4
1200 to 1372 0.7 1.0 0.3 0.4
T -250 to -200 1.7 2.5 0.9 1.4
-200 to 0 0.6 0.9 0.4 0.6
0 to 400 0.3 0.4 0.3 0.4
B 600 to 800 1.3 2.0 1.0 1.5
800 to 1000 1.0 1.5 0.8 1.2
1000 to 1820 0.9 1.3 0.8 1.2
R -20 to 0 2.3 2.8 1.2 1.8
0 to 100 1.5 2.2 1.1 1.7
100 to 1767 1.0 1.5 0.9 1.4
S -20 to 0 2.3 2.8 1.2 1.8
0 to 200 1.5 2.1 1.1 1.7
200 to 1400 0.9 1.4 0.9 1.4
1400 to 1767 1.1 1.7 1.0 1.5
C 0 to 800 0.6 0.9 0.6 0.9
800 to 1200 0.8 1.2 0.7 1.0
1200 to 1800 1.1 1.6 0.9 1.4
1800 to 2316 2.0 3.0 1.3 2.0
L -200 to -100 0.6 0.9 0.3 0.4
-100 to 800 0.3 0.4 0.2 0.3
800 to 900 0.5 0.8 0.2 0.3

Includes: Fluke 753 Documenting Process Calibrator

  • BC7240 battery charger
  • Li-on BP7240 battery pack
  • DPCTrack 2™ Sample Software
  • Instruction manual
  • NIST-traceable calibration report and data
  • Three sets of TP220 test probes with three sets of “extended tooth"" alligator clips
  • Two sets AC280 hook clips
  • C799 Soft Field Case
  • USB communication cable

Accessories: Fluke 753 Documenting Process Calibrator

Chargers (1)

  • Fluke BC7240 Battery charger/Eliminator for 75x

Batteries (1)

  • Fluke BP7240 Li-Ion Battery Pack for 75x

Cases (1)

  • Fluke C550 Tool Bag

Clips (1)

Fluke AC220 SureGrip™ Alligator Clips

Pressure (1)

  • Fluke 700PCK Pressure Calibration Kit

Pumps (1)

  • Fluke 700 PMP Pressure Pump

Fluke calibration software (1)

  • Fluke 750 SW DPC/TRACK2 Software

Connectors (1)

  • Fluke 80CJ-M type J Male Mini-Connectors

Related Products

2
Fluke 754 Documenting Process Calibrator-HART
Ask for Price
2
Fluke 753 Documenting Process Calibrator
Ask for Price
2
Fluke 7250LP Low Pressure Calibrator
Ask for Price
2
Fluke 725Ex Series Process Calibrator
Ask for Price
2

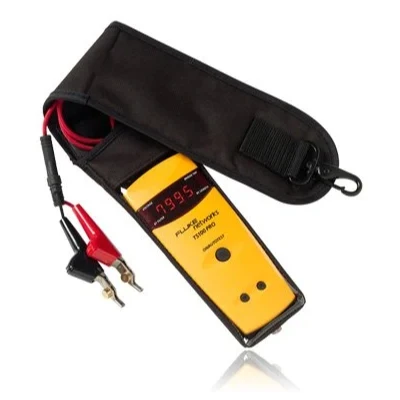

Fluke TS® 100 PRO Cable Fault Finder with PowerBT™ Bridge Tap
Ask for Price
2
Fluke Calibration P5515 Comparison Test Pump
Ask for Price

Recently Viewed Products

2
Proskit SD 081 P7 Precision Screwdriver
Ask for Price
2
EXTECH PQ3450-12
Ask for Price
2
DJI Mini 3 Pro
Ask for Price
2
WALTON Megatron 7000E
Ask for Price
2
Hioki 3244-60 pocket digital multimeter
BDT: 3,500.00
Ask for Special Price
2
UNI-T UT520 Series Digital Earth Testers
Ask for Price
We'd love to hear from you
+8801965656380
Local: +8801965656380
Send us an email
Live Chat
User

Real people, here to help you.

Get Connected

Join the community and find out what we're up to, experience live product releases, webinars and more!

seller

Sellers

Connect your real buyer on Tools Bangaldesh where visit the maximum customer for Tools In Bangladesh.

e-marketplace

e-Marketplace

Tools Bangladesh is a Trustworthy e-Marketplace in Bangladesh. Connect buyer and seller on the trade fair.

growth

Buyers

Get the reliable and authentic Tools at the best price in Bangladesh with on time delivery entire Bangladesh.

  • Copyright @ 2025
  • tools.com.bd
Departments
