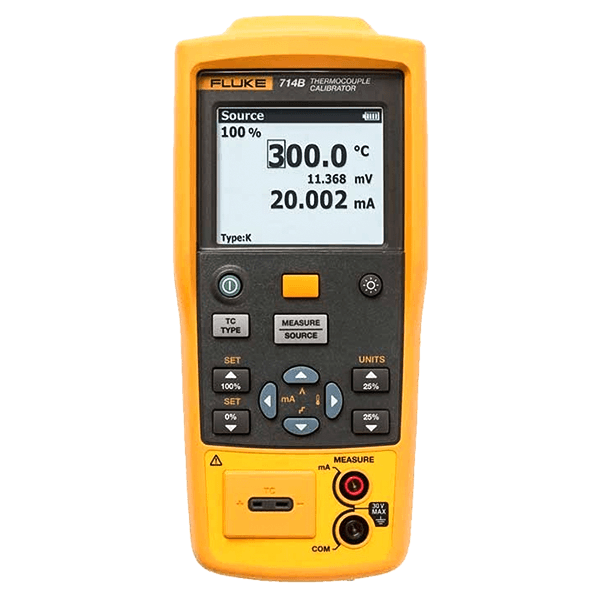

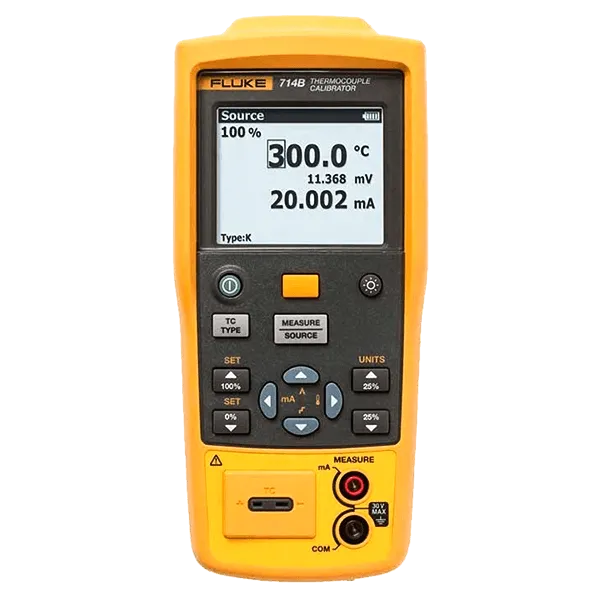

Model: Fluke 714B Thermocouple Calibrator

Fluke 714B Thermocouple Calibrator highly accurate, full-featured easy-to-use, single-function thermocouple temperature calibrator. This Calibrator not only measures and simulates 17 thermocouple types but also provides the 4 to 20 mA signals while simultaneously.

This Fluke tool is a handheld, battery-operated instrument that events and sources a variety of thermocouple types and millivolts. Calibrates a linear thermocouple transmitter past the mV source achievement and events mA even though sourcing temperature.

It furthermore provides linear ramp and 25% step auto ramp functionality based approaching 0% and 100% settings.

Put those capabilities together behind its rugged construction and user-cordiality and you have an ideal exam tool for temperature calibration professionals who throbbing a highly accurate, single be in thermocouple temperature calibrator.

Iconic Engineering is a trusted supplier that always provides reliable measurement tools. Keep it simple and get the best product that you are looking for. Buy nor from Tools Bangladesh.

Key features: Fluke 714B Thermocouple Calibrator

  • Highly accurate, full featured easy-to-use, single-function thermocouple temperature calibrator
  • Measures and simulates 17 thermocouple types and millivolts
  • Measures 4 to 20 mA signals while simultaneously sourcing a temperature signal
  • Comes with a magnetic hanging tool designed in for convenient hands-free operation
  • Features configurable 0% and 100% source settings for quick 25% linearity checks

Specifications: Fluke 714B Thermocouple Calibrator

General Specifications
Maximum voltage applied between any terminal and earth ground or between any two terminals 30 V
Operating temperature -10°C to 50°C
Storage temperature -30°C to 60°C
Operating altitude 2,000 m
Storage altitude 12,000 m
Relative humidity (% RH operating without condensation) Non condensing
90% (10°C to 30°C)
75% (30°C to 40°C)
45% (40°C to 50°C)
(Without condensation)
Vibration requirements MIL-T-28800E, Class 2
Drop text requirements 1 m
IP Rating IEC 60529: IP52
Electromagnetic environment IEC 61326-1, Portable
Safety IEC 61010-1, Max 30 V to earth, Pollution Degree 2
Power supply 4 AA NEDA 1.5A IEC LR6 batteries
Size (H x W x L) 52.5 x 84 x 188.5 mm
Weight 515 g
DC mA Measurement
Resolution Range Accuracy (% of reading + counts)
0-24 mA 0.001 mA 0.010% + 2 μA
Temperature coefficient ±(0.002% of reading + 0.002% of range) /°C (< 18°C or > 28°C)
Millivolt Measurement and Source
Resolution Range Accuracy (% of reading +counts)
-10 mV to 75 mV 0.01 mV 0.015% + 10 μA
Temperature coefficient ±(0.002% of reading + 0.002% of range) /°C (< 18°C or > 28°C)
Thermocouple Input and Output
TC Type Range (°C) Measure (°C) Source (°C)
1 year 2 year 1 year 2 year
E -250 to 200°C 1.3 2.0 0.6 0.9
-200 to -100°C 0.5 0.8 0.3 0.4
-100 to 600°C 0.3 0.4 0.3 0.4
600 to 1000°C 0.4 0.6 0.2 0.3
N -200 to -100°C 1.0 1.5 0.6 0.9
-100 to 900°C 0.5 0.8 0.5 0.8
900 to 1300°C 0.6 0.9 0.3 0.4
J -210 to -100°C 0.6 0.9 0.3 0.4
-100 to 800°C 0.3 0.4 0.2 0.3
800 to 1200°C 0.5 0.8 0.3 0.3
K -200 to -100°C 0.7 1.0 0.4 0.6
-100 to 400°C 0.3 0.4 0.3 0.4
400 to 1200°C 0.5 0.8 0.3 0.4
1200 to 1372°C 0.7 1.0 0.3 0.4
T -250 to -200°C 1.7 2.5 0.9 1.4
-200 to 0°C 0.6 0.9 0.4 0.6
0 to 400°C 0.3 0.4 0.3 0.4
B 600 to 800°C 1.3 2.0 1.0 1.5
800 to 1000°C 1.0 1.5 0.8 1.2
1000 to 1820°C 0.9 1.3 0.8 1.2
R -20 to 0°C 2.3 2.8 1.2 1.8
0 to 100°C 1.5 2.2 1.1 1.7
100 to 1767°C 1.0 1.5 0.9 1.4
S -20 to 0°C 2.3 2.8 1.2 1.8
0 to 200°C 1.5 2.1 1.1 1.7
200 to 1400°C 0.9 1.4 0.9 1.4
1400 to 1767°C 1.1 1.7 1.0 1.5
C 0 to 800°C 0.6 0.9 0.6 0.9
800 to 1200°C 0.8 1.2 0.7 1.0
1200 to 1800°C 1.1 1.6 0.9 1.4
1800 to 2316°C 2.0 3.0 1.3 2.0
L -200 to -100°C 0.6 0.9 0.3 0.4
-100 to 800°C 0.3 0.4 0.2 0.3
800 to 900°C 0.5 0.8 0.2 0.3
U -200 to 0°C 0.6 0.9 0.4 0.6
0 to 600°C 0.3 0.4 0.3 0.4
BP 0 to 1000°C 1.0 1.5 0.4 0.6
1000 to 2000°C 1.6 2.4 0.6 0.9
2000 to 2500°C 2.0 3.0 0.8 1.2
XK -200 to 300°C 0.2 0.3 0.2 0.5
300 to 800°C 0.4 0.6 0.3 0.6
G 100 to 300°C 1.6 2.4 1.2 1.8
300 to 1500°C 1.0 1.5 1.0 1.5
1500 to 2

Includes: Fluke 714B Thermocouple Calibrator

  • Magnetic hanging tool
  • Batteries
  • Manual
  • Traceable calibration certificate
  • Test Leads

Accessories: Fluke 714B Thermocouple Calibrator

Temperature calibrators (5)

  • Fluke 700TC1 Thermocouple Plug Kit
  • Fluke 700TC2 Thermocouple Plug Kit 700TC2
  • Fluke 80PJ-EXT Extension Wire Kit
  • Fluke 80PK-EXT Extension Wire Kit
  • Fluke 80PT-EXT Extension Wire Kit

Connectors (2)

  • Fluke 80CJ-M type J Male Mini-Connectors
  • Fluke 80CK-M type K Male Mini-Connectors

Probes (11)

  • Fluke 80PJ-1 Bead Probe
  • Fluke 80PK-1 Bead Probe
  • Fluke 80PK-10 Pipe Clamp Temperature Probe
  • Fluke 80PK-11 Type-K Flexible Cuff Thermocouple Temperature Probe
  • Fluke 80PK-22 SureGrip™ Immersion Temperature Probe
  • Fluke 80PK-24 SureGrip™ Air Temperature Probe
  • Fluke 80PK-25 SureGrip™ Piercing Temperature Probe
  • Fluke 80PK-26 SureGrip™ Tapered Temperature Probe
  • Fluke 80PK-27 SureGrip™ Industrial Surface Temperature Probe
  • Fluke 80PK-3A Surface Probe
  • Fluke 80PK-8 Pipe Clamp Temperature Probe
