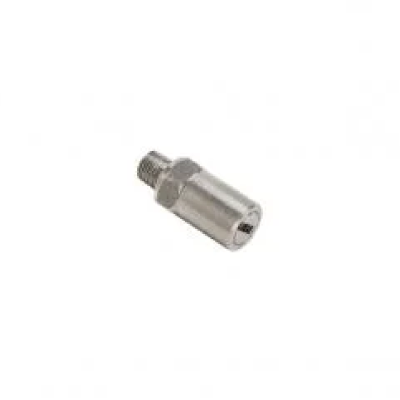

Fluke 700PRV-1 Pressure Relief Valve Kit

Home › Fluke
Thumbnail
Shop : Tools Bangladesh
Product ID : 3948
Brand : Fluke
Availability : In Stock (1)
Price BDT : Ask for Price
Reviews :
Share :
Request Quote

  • Customer Support

    +8801965656380

  • Cash One Delivery

    Pay after getting the product on hand

  • Warranty

    1 Year warranty by manufacturer

  • Secured Payment Method

    Your cart is always secure to shop

  • Easy Return Policy

    24 hours return without physical defect.

Product overview: Fluke 700PRV-1 Pressure Relief Valve Kit

The Fluke 700PRV-1 consists of a relief valve settable from 725 to 5800 PSI (50 to 200 bar) to be used with the 700HTP-1 Hydraulic Test Pump. The 1/8” NPT male thread to fits directly into the Fluke 700HTP-1 pressure pump.

To be used with the 700HTP-1 Hydraulic Test Pump. The 700PRV uses a multi-turn adjustment screw to set preload on internal disc springs. This relief valve will protect the most commonly used Fluke pressure modules and pressure instruments from damage due to accidental over-pressurization.

Key Features

  • Adjustable from 725 to 5800 PSI (50 to 200 bar)
  • Preset at 2,900 psi/200 bar
  • Repeatability to 10% of nominal setting
  • Installs directly into the 700HTP-1 pump

Specifications: Fluke 700PRV-1 Pressure Relief Valve Kit

Mechanical and General Specifications
Size 1.52 in by 0.62 in diameter (38 mm by 16 mm diameter)
Weight 1.6 oz (46 g)
Warranty One year
Material Type 303 stainless steel

Manuals + Resources: Fluke 700PRV-1 Pressure Relief Valve Kit

Data sheet (1)

Manuals + Resources: Fluke 700PRV-1 Pressure Relief Valve Kit

Data sheet (1)

Product overview: Fluke 700PRV-1 Pressure Relief Valve Kit

The Fluke 700PRV-1 consists of a relief valve settable from 725 to 5800 PSI (50 to 200 bar) to be used with the 700HTP-1 Hydraulic Test Pump. The 1/8” NPT male thread to fits directly into the Fluke 700HTP-1 pressure pump.

To be used with the 700HTP-1 Hydraulic Test Pump. The 700PRV uses a multi-turn adjustment screw to set preload on internal disc springs. This relief valve will protect the most commonly used Fluke pressure modules and pressure instruments from damage due to accidental over-pressurization.

Key Features

  • Adjustable from 725 to 5800 PSI (50 to 200 bar)
  • Preset at 2,900 psi/200 bar
  • Repeatability to 10% of nominal setting
  • Installs directly into the 700HTP-1 pump

Specifications: Fluke 700PRV-1 Pressure Relief Valve Kit

Mechanical and General Specifications
Size 1.52 in by 0.62 in diameter (38 mm by 16 mm diameter)
Weight 1.6 oz (46 g)
Warranty One year
Material Type 303 stainless steel

Manuals + Resources: Fluke 700PRV-1 Pressure Relief Valve Kit

Data sheet (1)

Manuals + Resources: Fluke 700PRV-1 Pressure Relief Valve Kit

Data sheet (1)
