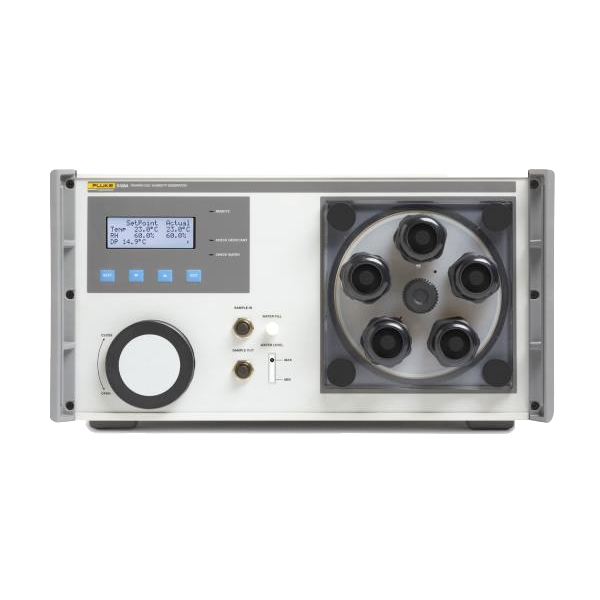

Model: 5128A RHapid-Cal® Humidity Generator
Fluke 5128A RHapid-Cal® Humidity Generator is a portable humidity generator for calibrating a large workload of probes in the laboratory or on-site in the field. It is used by corporate calibration/research labs and independent calibration labs where humidity measurement is critical to prevent spoilage of products in industries including pharmaceuticals, medical devices, semiconductors, chemicals, and food production.
In the lab, the 5128A calibrates humidity probes 33% faster than a two-pressure generator.
In the field, the Fluke 5128A provides more thorough, reliable multi-point calibrations than one-point spot checks using handheld humidity meters.
The 5128A comes standard with an ISO 17025 accredited system calibration. Support offerings include online chat, email, phone, and product service from Fluke Calibration, channel partners and authorized service centers around the world.
Trusted and reliable Fluke distributor in Bangladesh. Buy now this model through Tools Bangladesh. Iconic Engineering keep the ability to delivery anywhere in Bangladesh
Key Features: Fluke 5128A RHapid-Cal® Humidity Generator
- Best-in-class system accuracy for dependable humidity probe calibration
- Rapid humidity and temperature stabilization time for high calibration throughput
- Supports on-site, multi-point calibration of humidity probes
- Versatile design accommodates a large workload
- Compact size and lightweight for easy transport
- ISO 17025 accredited system calibration included standard
- Easy to maintain
Specifications: Fluke 5128A RHapid-Cal® Humidity Generator
|
AC mains voltage
|
100 V to 240 V ±10%
|
|
Standard frequency range
|
47 Hz to 63 Hz
|
|
Power consumption
|
300 VA
|
|
Required test fluids
|
Distilled water
|
|
Warm-up period
|
Twice the time since last warmed up, to a maximum of 30 minutes
|
|
Mains Fuse Rating
|
F4A 250 V (fast blow) |
|
Operating humidity range, 18 °C to 28 °C
|
Up to 80 % RH
|
|
Storage temperature and relative humidity
|
-20 °C to 50 °C, 0 % to 95 % RH, non-condensing
|
|
Transducer Power Output
|
12 V dc, 1 A maximum, fuse: F 1A 250V (fast blow)
|
|
Computer Interface
|
USB
|
|
Safety
|
IEC 61010-1, Installation Category II, Pollution degree 2, Indoor use only
|
|
Altitude
|
2000 m
|
|
Electromagnetic Compatibility (EMC)
|
|
International
|
IEC 61326-1: Controlled Electromagnetic Environment
CISPR 11: Group 1, Class A
Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself.
Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low-voltage power supply network that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances.
|
|
Korea (KCC)
|
Class A Equipment (Industrial, Broadcasting, & Communication Equipment)
Class A: Equipment meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes.
|
|
USA (FCC)
|
47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.
|
|
Weight
Chassis only
|
15 kg (33.06 lbs)
|
|
Dimensions
|
|
Chassis
|
237 mm x 432 mm x 521 mm (9.3 in x 17 in x 20.5 in) (height x width x depth)
|
|
Overall Chamber Dimensions
|
200 mm (7.87 in) (depth) x 150 mm (5.90 in) (diameter)
|
|
Working Volume Dimensions
|
109 mm (4.3 in) (depth) x 125 mm (4.92 in) (diameter)
|
|
Temperature resolution
|
|
Display
|
0.1 °C
|
|
USB data
|
0.1 °C
|
|
Humidity resolution
|
|
|
Display
|
0.1 % RH
|
|
USB data
|
0.1 % RH
|
|
Dew point
|
|
|
Resolution
|
0.1 °C (for indication only)
|
Note: The displayed dew point reading (DP) is calculated from the Product’s actual temperature and %RH readings. It is calculated as a dew point (water vapor over water) over the entire range, regardless if dew point is equal to or lower than 0°C, and at a nominal pressure of 101.325 kPa (1 atmosphere).
Humidity and temperature chamber technical specifications
The Product specifications describe the Absolute Instrumental Uncertainty of the Product. The Product specifications include stability, ambient temperature, and humidity (within specified limits), linearity, line regulation, the reference standard measurement uncertainty and long term stability of one year. The product specifications are provided at a 99 %, k=2.58, normally distributed level of confidence, unless otherwise noted.
Chamber specifications
|
One Year, Ambient Temperature Range 23 °C ± 3 °C1
|
|
Chamber temperature range
|
Chamber humidity range
|
Humidity specification
|
Temperature specification
|
|
18 °C to 23 °C
|
7 % to 80 % RH
>80 % to 95 %RH
|
±1.0 % RH
±1.25 % RH
|
±0.2 °C
±0.2 °C
|
|
>23 °C to 28 °C
|
7 % to 80 % RH
>80 % to Hmax2 % RH
|
±1.0 % RH
±1.25 % RH
|
±0.2 °C
±0.2 °C
|
|
1 For ambient conditions of 23 °C ± 5 °C, multiply the specifications by 1.5.
2 Hmax is the maximum humidity value at which the specification applies.
|
Note: Specifications apply to the Working Volume shown in the Working Volume Template f
Includes: Fluke 5128A RHapid-Cal® Humidity Generator
| Model Name |
Description |
| 5128A |
RHapid-Cal® Humidity Generator
Includes:
- 1 Square 5-Port Door
- 1 Desiccant Cartridge
- 1 Fill Syringe with ExtensionTube
- 5 Grommets (one each of 1/4 in, 3/8 in, 1/2 in, 3/4 in, 7/8 in sizes)
- 1 Mains Power Cord, 2-Meter
- Fluke ISO 17025 Accredited System Calibration, 115 V AC / 230 V AC
|
Accessories common to all models:
| Accessory |
Description |
| 5128-2686 |
Desiccant Material Kit (includes desiccant plus 2 caps and 2 filters)
|
| 5128-2685 |
Desiccant Cartridge (including desiccant material)
|
| 5128-2681-R5 |
Round Door, 5 ports
|
| 5128-2681-S0 |
Clear Square Door with two shelves (small and large)
|
| 5128-2681-S5 |
Square Door, 5 ports (spare)
|
| 5128-CASE |
5128A Case with Wheels
|
| 5128-2682-1/4 |
Port Grommets, 1/4 inch, 5 each
|
| 5128-2682-3/8 |
Port Grommets, 3/8 inch, 5 each
|
| 5128-2682-1/2 |
Port Grommets, 1/2 inch, 5 each
|
| 5128-2682-3/4 |
Port Grommets, 3/4 inch, 5 each
|
| 5128-2682-7/8 |
Port Grommets, 7/8 inch, 5 each
|
| 5128-2683 |
Port Plugs, 5 each
|
| 5128-2684 |
Fill Syringe with Extension Tube
|
