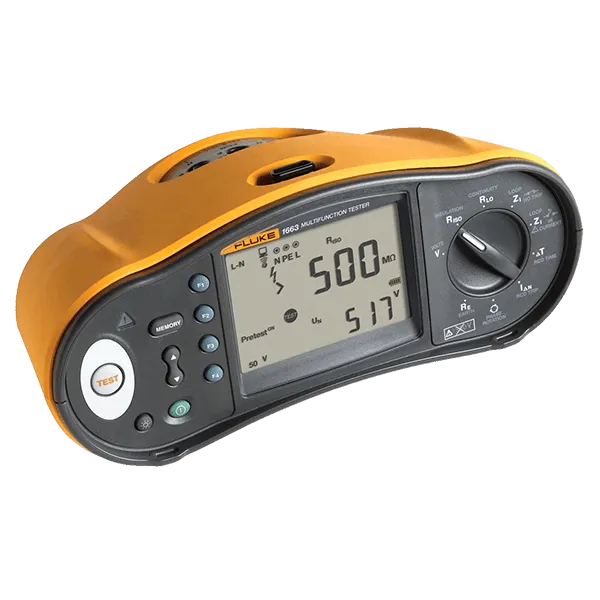

Model: Fluke 1663 Multifunction Testers
Fluke 1663 Multifunction Installation Tester is a rugged and accurate result also Tests to all local regulations and provides test results for complete documentation.
All Fluke product is make with the best features. The Fluke 1663 Multifunction Installation Tester is the ideal substitute for hard in force professionals The 1663 installation tester delivers the full-featured functionality and advanced measurement capabilities that professional installers compulsion.
It is compact and lightweight (less than 1.3 kg) and comes plus than a padded carrying and waist strap for convenient handling.
Operation is intuitive and easily mastered by all levels of workers suitably you can put it to accomplish suddenly for fast and efficient breakdown to all local regulations. Additional cooperative features as soon as On/Off switchable auto-commencement for RCD and loop test, and self-test save times and meet the expense of you more confidence in your results.
Iconic Engineering is for the lowest price place for electronic measurement tools. So if the Fluke 1663 Multifunction Installation Tester is for your testing then you can contact to us.
Key features : Fluke 1663 Multifunction Testers
- Full-featured tester for installation professionals
- Tests to all local regulations and provides test results for complete documentation
- Tests continuity at L-N, N-PE inputs
- Tests smooth dc sensitive RCDs (Type B)
- Tests earth resistance, voltage, and frequency
- Offers multiple test voltages: 50 V, 100 V, 250 V, 500 V, 1000 V
Specifications: Fluke 1663 Multifunction Testers
| AC voltage measurement |
| Range |
500 V |
| Resolution |
0.1 V |
| Accuracy 45 Hz – 66 Hz |
0.8% + 3 |
| Input impedance |
360 kΩ |
| Overload protection |
660 V rms |
| Continuity testing (RLO) |
| Range (autoranging) |
20 Ω / 200 Ω / 2000 Ω |
| Resolution |
0.01 Ω / 0.1 Ω / 1 Ω |
| Open Circuit Voltage |
>4 V |
| Insulation resistance measurement (RISO) |
| Test voltages |
50-100-250-500-1000 V |
| Accuracy of tTest voltage (at rated test current) |
+10%, -0% |
| Test voltage |
50 V
100 V
250 V
500 V
1000 V |
| Insulation resistance range |
20 MΩ /50 MΩ
20 MΩ / 100 MΩ
20 MΩ / 200 MΩ
20 MΩ / 200 MΩ / 500 MΩ
20 MΩ / 200 MΩ / 1000 MΩ |
| Resolution |
0.01 MΩ / 0.1 MΩ
0.01 MΩ / 0.1 MΩ
0.01 MΩ / 0.1 MΩ
0.01 MΩ / 0.1 MΩ / 1 MΩ
0.01 MΩ / 0.1 MΩ / 1 MΩ |
| Test current |
1 mA @ 50 kΩ
1 mA @ 100 kΩ
1 mA @ 250 kΩ
1 mA @ 500 kΩ
1 mA @ 1 MΩ |
| Loop and line impedance (ZI) |
| Range |
10 Ω / 0.001 Ω / High current mΩ mode |
| Resolution |
0.01 Ω / 0.1 Ω / 1 Ω |
| Prospective earth fault current, PSC test |
| Range |
1000 A / 10 kA (50 kA) |
| Resolution |
1 A / 0.1 kA |
| Computation |
Prospective earth fault current (PEFC) or Prospective short circuit current (PSC) determined by dividing measured mains voltage by measured loop (L-PE) resistance or line (L-N) resistance, respectively. |
| RCD testing, RCD types tested |
| RCD Type |
AC¹
G²,S³ |
| Model 1663 |
A4, AC¹, G²,S³ |
| Notes |
¹Responds to AC
²General, no delay
³Time delay
4Responds to pulsed signal
5Responds to smooth DC signal |
| Tripping speed test (ΔT) |
| Current settings¹ |
10-30-100-300-500-1000 mA – VAR
10-30-100 mA |
| Multiplier |
x ½, x 1
x 5 |
| Measurement range |
RCD Type G |
310 ms
50 ms |
| RCD Type S |
510 ms
160 ms |
| Notes |
¹1000 mA type AC only
700 mA maximum type A in VAR mode
VAR mode not available for type B. |
| RCD/FI-Tripping Current Measurement/Ramp Test (IΔN) |
| Current range |
30% to 110% of RCD rated current¹ |
| Step size |
10% of IΔN² |
| Dwell time |
Type G |
300 ms/step |
| Type S |
500 ms/step |
| Measurement accuracy |
±5% |
| Specified trip current ranges (EN 61008-1) |
Includes: Fluke 1663 Multifunction Testers
- 6x AA (IEC LR6) cell batteries
- C1600 hard carrying case
- Zero adapter
- Heavy duty mains cord
- STD standard test lead set
- Padded carrying and waist strap
- Quick reference guide
- TP165X remote control probe and lead
- User's manual on CD-ROM
