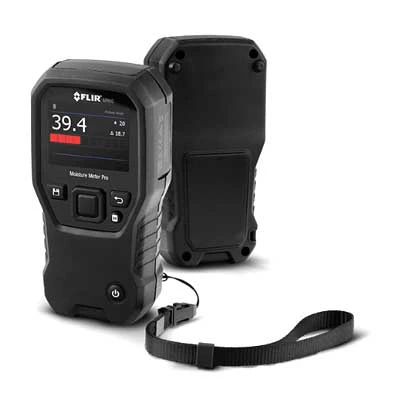

Key Features: FLIR MR60 Moisture Meter Pro

• Destructive or Non-Destructive Measurements

  Integrated pinless moisture sensor and an external pin probe included for resistive moisture content measurements in a variety of substrates.

• Clear, Accurate Readings

  Choose from 11 material group selections for pin-based readings, then save up to 10,000 screenshots to transfer and view via PC/USB.

• Simple to Use and Create Reports

  Features an easy-to-read display and intuitive user interface. Save files and generate reports with free FLIR Tools software.

Specifications: FLIR MR60 Moisture Meter Pro

Includes

MR60, MR02 pin probe, Quick Start Guide, International Charger, Warranty Card, Brochure Card

Imaging & Optical

Display type (W x H)

QVGA (320 x 240) pixel 2.3" 64K color TFT graphical display

Measurement & Analysis

Measurement Resolution

0.1

Pin Moisture via Ext Probe Range

Construction material groups: 0- 20% (reference only) / 10: brick, cement screed, concrete / 11: cement mortar, anhydrite screed, lime mortar, plaster Wood groups 1-9: 1-5: oak, most maples, pine, hickory, teak, sycamore 6-9: building materials: plywood, drywall, OCD 7% - 30% 30 % - 100% ±1.5% (reference only) Construction material groups: 10: brick, cement screed, concrete 11: cement mortar, anhydrite screed, lime mortar, plaster 0- 20% (reference only)

Pinless Moisture Depth

1.9cm (0.75") maximum

Pinless Moisture Range

0–100 relative measurement

Response Time Pin Mode

750 ms

Response Time Pinless

100 ms

Sample Rate

10Hz (approx., both modes)

Communication & Data Storage

Internal Memory

4GB

Saved Image File format

Bitmap (.bmp) with measurement values overlaid

Stored Data File Format

Comma Separated Values (.csv) format with date/time stamp. Reading value, reading type included.

Stored Image Capacity

9999 images

Power

Auto Power Off

Programmable: OFF, 1, 5, or 20 minutes

Battery

3.7 V, 3000mAh Li-ion rechargeable via micro USB

Continuous Run Time

18 hours max

Power Adapter

100–240 V input/ 5 V 1A output

Power Requirements

Integrated rechargeable battery

Typical Usage

4 work weeks

General

Includes

MR60, MR02 pin probe, Quick Start Guide, International Charger, Warranty Card, Brochure Card

Packaging Size

51.2 x 25.8 x 64 cm†(20.2 x 10.2 x 25.2 in.)

Environmental & Certifications

Agency Approvals

FCC Class B, CE, UL

Certification Standards

EN61326 (EMC), EN61010 (Battery + Charger)

IP Rating/Drop Test

IP54/3m (9.8 ft)

Operating Humidity

≤ 90%, 0~30°C (32~86°F), ≤ 75%, 30~40°C (86~104°F), ≤ 45%, 40~50°C (104~122°F)

Operating Temperature

0~50 °C (32~122 °F)

Storage Humidity

90% RH

Storage Temperature

-10~60°C (14~140°F)

Warranty

2 years

N/A

Accessories: FLIR MR60 Moisture Meter Pro

Probes

• Baseboard Probe (MR09)
• Hammer and Wall Cavity Probe Combo (MR08)
• Hammer Probe (MR07)
• Wall Cavity Probe (MR06)

Cases and Pouches

• MR10-2_Protective Case for FLIR Moisture Meters

Sensors

• Ball Probe Moisture Sensor (MR12)

Pins

• 2" pins, 1 pair (MR-PINS2)
• 2" pins, 10 pairs (MR-PINS2-10)
• 4" pins, 1 pair (MR-PINS4)
• 6" pins, 1 pair (MR-PINS6)
• Impact Pin Moisture Probe (MR05)
• Replaceable External Moisture Pin Probe (MR02)
