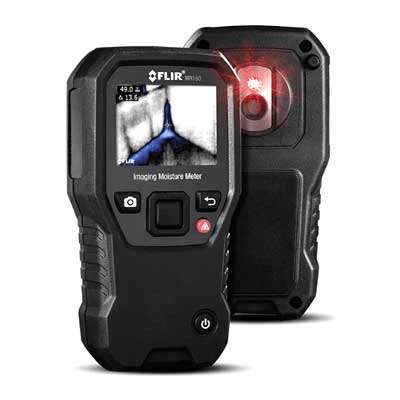

FLIR MR160 IGM™ Moisture Meter

Key Features: FLIR MR160 IGM™ Moisture Meter

• Troubleshoot Quickly

  Easily investigate insulation and moisture issues using MR160's pinless technology or external pin probe for both non-destructive and contact measurements.

• Identify and Verify Moisture

  Use the built-in thermal imager to locate areas of moisture. Verify the moisture level using pin and pinless moisture measurement.

• Portable, Tough, Durable

  Rugged design, small form factor, and internal rechargeable battery for convenience to carry with you

Specifications: FLIR MR160 IGM™ Moisture Meter

Thermal Image Resolution

4800 pixels (80 × 60)

Pin Moisture Groups

9 material groups

Imaging & Optical

Field of View [W x H]

51° × 38°

Image Display

Color moisture alert

Laser Orientation

Single laser pointer to center of thermal image

Minimum Focus Distance

10cm (4")

Spectral Response

8–14µm

Thermal Image Resolution

4800 pixels (80 × 60)

Thermal Imaging Detector

FLIR Lepton® microbolometer

Measurement & Analysis

Image Calibration

Automatic

Image Frame Rate

9 Hz

Measurement Resolution

0.1

Pin Moisture Groups

9 material groups

Pin Moisture via Ext Probe Range [Accuracy]

0–100% WME (± 5%)

Pinless Measurement Depth

0.75" (19mm) Max

Pinless Moisture Range

0–100 relative measurement

Response Time Pin Mode

750ms

Response Time Pinless

100ms

Thermal Sensitivity

<0.15°C

Communication & Data Storage

Saved Image File format

BMP with measurement values overlaid

Stored Image Capacity

9999 images

Power

Battery

3.7 V, 3000 mAh Li-ion rechargeable via micro USB

Battery power\Cont Run Time

18 hours max

Battery power-Typical Usage

4 work weeks

Power Requirements

Integrated rechargable battery

General

Dimensions (H x W x L)

QVGA (320 x 240 pixel) 2.3" 64k color TFT

Packaging Size

12.1 cm x 14 cm x 33.1 cm

Environmental & Certifications

Agency Approvals

FCC class B, CE, UL

Certification Standards

EN61326 (EMC), EN61010 (battery + charger), EN60825-1 class 2 (Laser)

Drop test

9.8’ (3m)

Warranty

10 year
