Specifications:

Aircraft

Weight570 g

SizeFolded:
180×97×84 mm (Length×Width×Height)
Unfolded:
183×253×77 mm (Length×Width×Height)

Diagonal Distance302 mm

Max Ascent Speed4 m/s (S Mode)
4 m/s (N Mode)

Max Descent Speed3 m/s (S Mode)
3 m/s (N Mode)
5 m/s (S Mode and N Mode during a sharp descent)
3 m/s (all modes at elevations over 4500 m)

Max Service Ceiling Above Sea Level5000 m

Max Flight Time (without wind)34 minutes

Max Hover Time (without wind)33 minutes

Max Flight Distance18.5 km

Max Horizontal Flight Speed19 m/s (S Mode)
12 m/s (N Mode)
5 m/s (T Mode)

Max Wind Resistance8.5-10.5 m/s (Level 5)

Max Pitch Angle35° (S Mode)
20° (N Mode)
35° (N Mode under strong wind)

Max Angular Velocity250°/s (S Mode)
250°/s (N Mode)

Operating Temperature Range-10° to 40°C (14° to 104°F)

Operating Frequency2.400-2.4835 GHz
5.725-5.850 GHz

Transmitter Power (EIRP)2.400-2.4835 GHz:
FCC: ≤26 dBm
CE: ≤20 dBm
SRRC: ≤20 dBm
MIC: ≤20 dBm

5.725-5.850 GHz:
FCC: ≤26 dBm
CE: ≤14 dBm
SRRC: ≤26 dBm

Hovering Accuracy RangeVertical:
±0.1 m (with vision positioning)
±0.5 m (with GPS positioning)

Horizontal:
±0.1 m (with vision positioning)
±1.5 m (with GPS positioning)

PropellersQuick release, low noise, folding

Satellite SystemsGPS+GLONASS

CompassSingle Compass

IMUSingle IMU

Internal Storage8 GB

Battery

Capacity3500 mAh

Voltage11.55 V

Charging Voltage Limit13.2 V

Battery TypeLiPo 3S

Energy40.42 Wh

Weight198 g

Charging Temperature5° to 40°C (41° to 104°F)

Max Charging Power38 W

Camera

Sensor1/2" CMOS
Effective Pixels: 12 MP and 48 MP

LensFOV: 84°
Equivalent Focal Length: 24 mm
Aperture: f/2.8
Focus Range: 1 m to ∞

ISOVideo:
100-6400

Photo (12 MP):
100-3200 (Auto)
100-6400 (Manual)
Photo (48 MP):
100-1600 (Auto)
100-3200 (Manual)

Max Photo Resolution48 MP 8000×6000 pixel

Photo ModesSingle: 12 MP and 48 MP
Burst: 12 MP, 3/5/7 frames
Automatic Exposure Bracketing (AEB): 12MP, 3/5 Frames at 0.7EV Bias
Timed: 12 MP 2/3/5/7/10/15/20/30/60 seconds
SmartPhoto: Scene Recognition, HyperLight, and HDR
HDR Panorama[1]:
Vertical (3×1): 3328×8000 pixels (Width×Height)
Wide-angle (3×3): 8000×6144 pixels (Width×Height)
180° Panorama (3×7): 8192×3500 pixels (Width×Height)
Sphere (3×8+1): 8192×4096 pixels (Width×Height)

Photo FormatsJPEG/DNG (RAW)

Video Resolution and Frame Rates4K Ultra HD: 3840×2160 24/25/30/48/50/60 fps
2.7K: 2688×1512 24/25/30/48/50/60 fps
FHD: 1920×1080 24/25/30/48/50/60/120/240 fps
4K Ultra HD HDR: 3840×2160 24/25/30 fps
2.7K HDR: 2688×1512 24/25/30 fps
FHD HDR: 1920×1080 24/25/30 fps

Color ProfilesD-Cinelike, Normal

Video FormatsMP4/MOV (H.264/MPEG-4 AVC, H.265/HEVC)

Max Bitrate120 Mbps

Supported SD CardsSupports a microSD with capacity of up to 256 GB

Supported File SystemsFAT32 and exFAT

ZoomAvailable

Gimbal

Stabilization3-axis (tilt, roll, pan)

Mechanical RangeTilt: -135° to 45°
Roll: -45° to 45°
Pan: -100° to 100°

Controllable RangeTilt: -90° to 0° (Default)
-90° to 24° (Extended)

Max Controllable Speed (tilt)100°/s

Angular Vibration Range±0.01°

Vision System

ForwardPrecision Measurement Range: 0.35-22.0 m
Detection Range: 0.35 to 44 m
Effective Sensing Speed: 12 m/s
Field of View (FOV):
71° (horizontal), 56° (vertical)

BackwardPrecision Measurement Range: 0.37-23.6 m
Detection Range: 0.37-47.2 m
Effective Sensing Speed: 12 m/s
Field of View (FOV):
57° (horizontal), 44° (vertical)

Available Downward SensorsDual Vision Sensors + Time of Flight Sensors (ToF)

DownwardToF Measurement Range: 0.1-8 m
Hovering Range: 0.5-30 m
Vision Sensor Hovering Range: 0.5-60 m

Left/RightNone

Downward Auxillary LightSingle LED

Safety

Obstacle Avoidance SystemAdvanced Pilot Assistance Systems (APAS) 3.0

Video Transmission

Transmission SystemOcuSync 2.0
2.4 GHz/5.8 GHz Auto-Switching

Max Transmission Distance10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC)

Live View Quality720p@30fps/1080@p30fps

Latency (depending on environmental conditions and mobile device)120-130 ms

Video Transmission Encoding formatH.265/H.264 (Auto-switches depending on encoding capabilities of device)

Max Transmission Bitrate12 Mbps

Operating Frequency2.400-2.4835 GHz
5.725-5.850 GHz

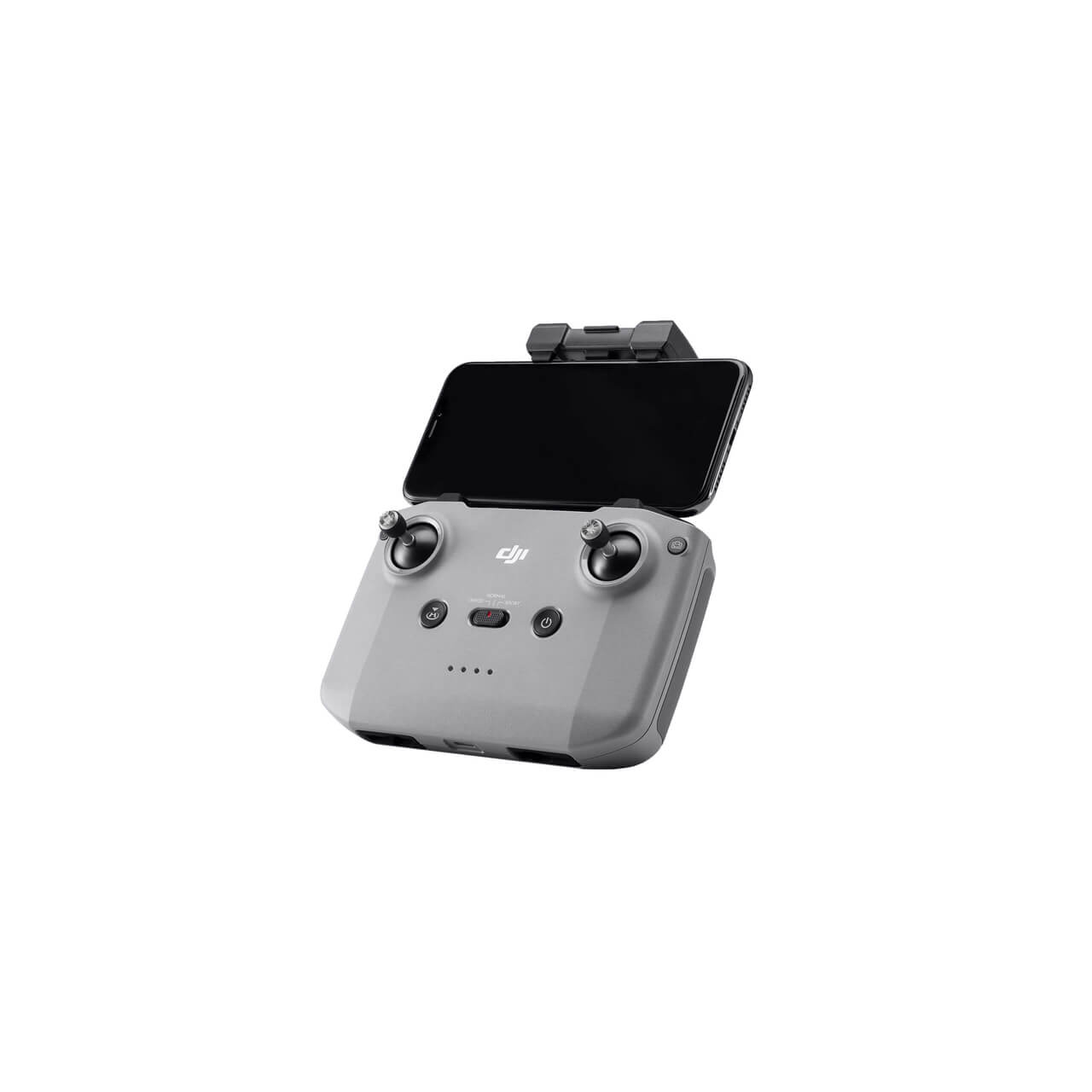

Remote Controller

Remote Controller Transmission SystemWhen used with different aircraft hardware configurations, DJI RC-N1 Remote Controllers will automatically select the corresponding firmware version for updating and support the following transmission technologies enabled by the hardware performance of the linked aircraft models:
a. DJI Mini 2/ DJI Mavic Air 2: O2
b. DJI Air 2S: O3
c. DJI Mavic 3: O3+

Supported Mobile Device ConnectorsLightning, Micro USB, USB Type-C

Max. Supported Mobile Device Size180×86×10 mm (Height×Width×Thickness)

Operating Temperature-10° to 40°C (14° to 104°F)

Transmitter Power (EIRP)2.400-2.4835 GHz:
<26 dBm (FCC), <20 dBm (CE/SRRC/MIC)
5.725-5.850 GHz:
<26 dBm (FCC), <23 dBm (SRRC), <14 dBm (CE)

Operating Current/Voltage1200 mA@3.6V (Android)
700 mA@ 3.6 V (iOS)

Charger

Charging Input100-240 V, 50/60 Hz, 1.3 A

Charging OutputCharging Port: 13.2 V⎓2.82 A
USB Port: 5 V⎓2 A

Voltage13.2 V

Rated Power38 W

SD Cards

Supported SD CardsMicro SD™
Supports a microSD card with a capacity of up to 256 GB.
A UHS-I Speed Grade 3 rating microSD card is required.

Recommended microSD CardsSanDisk Extreme PRO 64GB V30 A2 microSDXC
SanDisk High Endurance 64GB V30 microSDXC
SanDisk Extreme 64GB V30 A2 microSDXC
SanDisk Extreme 128GB V30 A2 microSDXC
SanDisk Extreme 256GB V30 A2 microSDXC
Lexar Lexar 667x 64GB V30 A2 microSDXC
Lexar High-Endurance 64GB V30 microSDXC
Samsung EVO 64GB microSDXC
Samsung EVO Plus 64GB microSDXC
Samsung EVO Plus 256GB microSDXC
Kingston 128GB V30 microSDXC
Netac 256GB A1 microSDXC

Footnotes:

1. To ensure the Panorama quality, the aircraft will crop the panoramic photos made out of multiple images. Therefore, the photo resolution may vary in different shooting scenarios.
