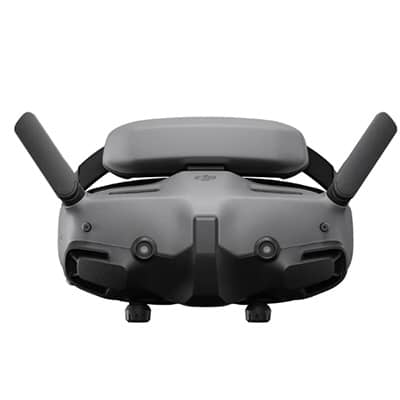

DJI Goggles 3

Key Features:

The DJI Goggles 3 provide an exceptional FPV experience with advanced features designed to enhance your flying adventures:

• Immersive Flight: Pair with the DJI RC Motion 3 for a fully immersive motion control experience, or use the RC-N2 or RC 2 controllers for piloting 3-axis-gimbal camera drones. Enjoy silky-smooth live feeds for a thrilling FPV experience.

• O4 Video Transmission: Compatible with the DJI Air 3 and Mini 4 Pro, the O4 video transmission offers ultra-low latency at 24 ms and a high bitrate of 60 Mbps, ensuring crystal-clear and fluid first-person views.

• Real View PiP: Observe your surroundings without removing the goggles, enhancing flight safety.

• All-Around Comfort and Convenience: Features a 1080p Micro-OLED screen with a 100 Hz refresh rate, TüV Rheinland Low Blue Light Certification and diopter adjustments from -6.0 D to +2.0 D. The integrated headband design and 3-hour battery life ensure comfort and convenience. One-Tap Defogging provides a quick solution for sudden temperature changes or high humidity.

• Wireless Streaming: Stream your flight live on the DJI Fly app via Wi-Fi, or playback panoramic and 3D videos from an SD card for an immersive viewing experience.

Specifications:

Goggles:

• Model

• TKGS3

• Weight

• Approx. 470 g (battery included)

• Dimensions (L×W×H)

• With antennas folded: 170×109×112 mm (L×W×H)
  With antennas unfolded: 205×109×112 mm (L×W×H)

• Screen Size (single screen)

• 0.49 inch

• Resolution (single screen)

• 1920×1080

• Refresh Rate

• Up to 100 Hz

• Interpupillary Distance Range

• 56-72 mm

• Diopter Adjustment Range

• -6.0 D to +2.0 D

• FOV (single screen)

• 44°

• Video Recording Format

• MOV

• Supported Video and Audio Playback Formats

• MP4, MOV (video coding formats: H.264, H.265; audio formats: AAC, PCM)
  Panoramic Video: Spherical 2D panoramic videos.
  3D Video: Half-Side-by-Side (HSBS), Full-Side-by-Side (FSBS), Half Over-Under (HOU), Full Over-Under (FOU).
  Max Video Specification: 4K/60fps

• Real View FOV

• 44°

• Operating Temperature

• -10°C to 40°C (14°F to 104°F)

• Power Input

• Built-in battery

• Supported SD Cards

• microSD (up to 512 GB)

• Recommended microSD Cards

• Kingston CANVAS Go! Plus 64GB U3 A2 V30 microSDXC
  Kingston CANVAS Go! Plus 128GB U3 A2 V30 microSDXC
  Kingston CANVAS Go! Plus 256GB U3 A2 V30 microSDXC
  Kingston CANVAS Go! Plus 512GB U3 A2 V30 microSDXC
  Lexar Professional 1066x 64GB U3 A2 V30 microSDXC
  Lexar Professional 1066x 128GB U3 A2 V30 microSDXC
  Lexar Professional 1066x 256GB U3 A2 V30 microSDXC
  Lexar Professional 1066x 512GB U3 A2 V30 microSDXC

Video Transmission

• Video Transmission

• When used with different aircraft, the goggles will automatically select the corresponding firmware to match the video transmission specification of the aircraft.
  With DJI Avata 2: DJI O4

• Operating Frequency

• 2.4000-2.4835 GHz
  5.150-5.250 GHz
  5.725-5.850 GHz

  Some countries and regions prohibit the use of the 5.1GHz or 5.8GHz frequency band, or both. In some countries and regions, the 5.1GHz frequency is only allowed for indoor use. Before flying, make sure to check and comply with local regulations.

• Transmitter Power (EIRP)

• 2.4 GHz:
  < 33 dBm (FCC)
  < 20 dBm (CE/SRRC/MIC)
  5.1 GHz:
  < 23 dBm (CE)
  5.8 GHz:
  < 33 dBm (FCC)
  < 30 dBm (SRRC)
  < 14 dBm (CE)


• Latency

• With DJI Avata 2:
  1080p/100fps video transmission quality: latency down to 24 ms
  ‌1080p/60fps video transmission quality: latency down to 40 ms

  Measured in an open outdoor environment without interference. Actual data varies with different aircraft models.

• Max Transmission Distance

• When used with DJI Avata 2, DJI Goggles 3 can achieve the following max video transmission distance:
  13 km (FCC); 10 km (CE/SRRC/MIC)

• Max Video Bitrate

• 60 Mbps

  Measured in an outdoor open environment without interference. Actual data varies with the operating environment.

Wi-Fi

• Protocol

• 802.11 a/b/g/n/ac

• Operating Frequency

• 2.4000-2.4835 GHz
  5.170-5.250 GHz
  5.725-5.850 GHz

  Some countries and regions prohibit the use of the 5.1GHz or 5.8GHz frequency band, or both. In some countries and regions, the 5.1GHz frequency is only allowed for indoor use. Before flying, make sure to check and comply with local regulations.

• Transmitter Power (EIRP)

• 2.4 GHz:
  < 20 dBm (FCC/CE/SRRC/MIC)
  5.1 GHz:
  < 20 dBm (FCC/CE/MIC)
  5.8 GHz:
  < 20 dBm (FCC/SRRC)
  < 14 dBm (CE)

Bluetooth

• Protocol

• Bluetooth 5.0

• Operating Frequency

• 2.400-2.4835 GHz

• Transmitter Power (EIRP)

• < 10 dBm

GFSK

• Operating Frequency

• 2.4000-2.4835 GHz

• Transmitter Power (EIRP)

• < 26 dBm (FCC)
  < 20 dBm (CE/SRRC/MIC)

Battery

• Dimensions

• 121×65×52.5 mm (L×W×H)

• Capacity

• 3000 mAh

• Voltage

• 5.6-8.4 V

• Category

• Li-ion

• Chemical System

• LiNiMnCoO2

• Energy

• 21.6 Wh

• Charging Temperature

• 0° C to 50° C (32° F to 122° F)

• Max Charging Power

• 20 W (charging when powered off)

• Runtime

• Approx. 3 hours

  The 3-hour max operating time was measured at an ambient temperature of 25° C (77° F), screen brightness at 4, connected to the DJI Avata 2 aircraft, video transmission set to 1080p/100fps, Head Tracking off, Real View off, and the battery of the goggles fully charged and not supplying power to external devices such as smartphones.

Includes:

• DJI Goggles 3 × 1
• DJI Goggles 3 -2.0D Corrective Lenses (Pair) × 1
• USB-C OTG Cable × 1
