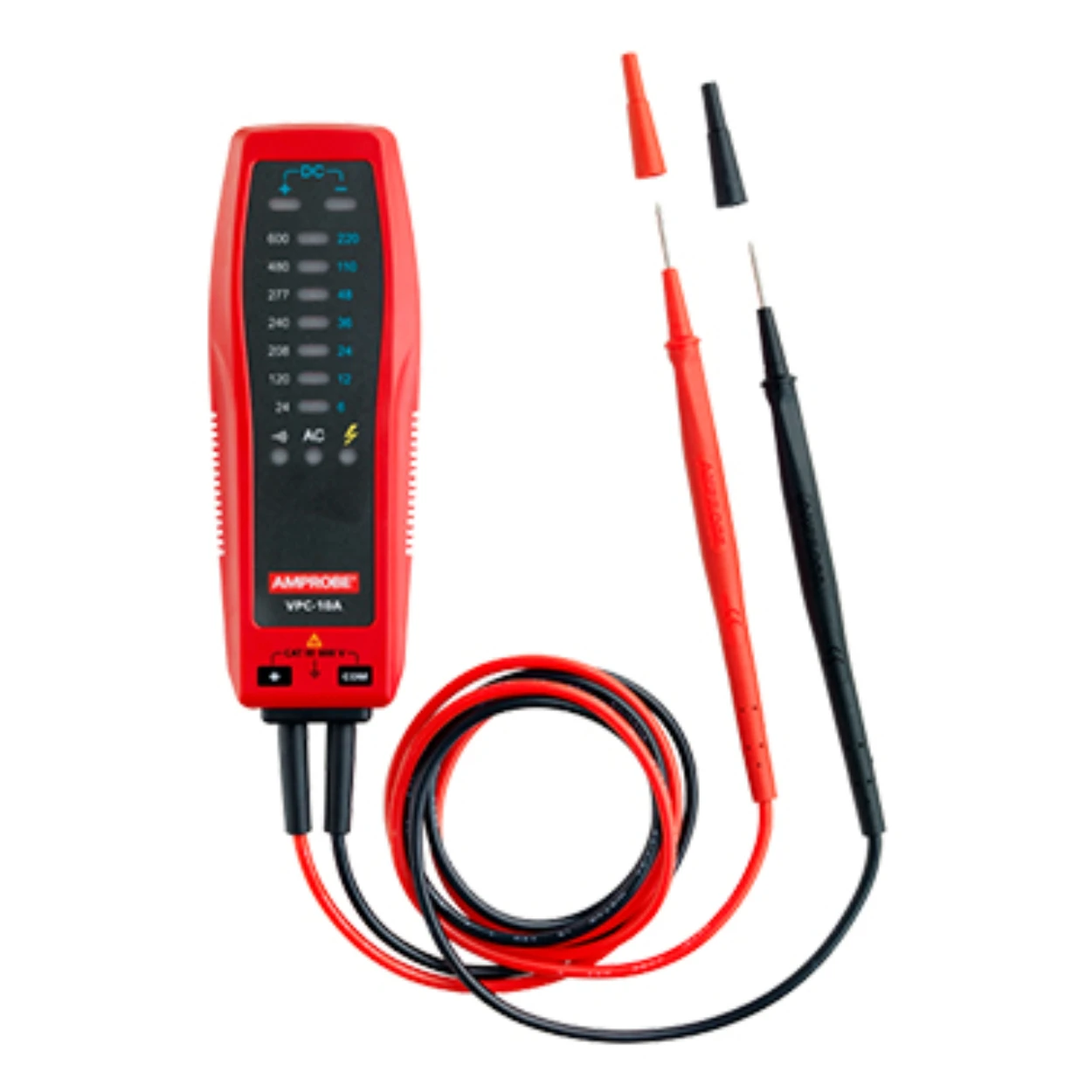

Amprobe VPC-10A Voltage and Continuity Tester

Home › Amprobe
Thumbnail
Shop : Tools Bangladesh
Product ID : 4656
Brand : Amprobe
Availability : Out of Stock
Price BDT : Ask for Price
Reviews :
Share :
Request Quote

  • Customer Support

    +8801965656380

  • Cash One Delivery

    Pay after getting the product on hand

  • Warranty

    1 Year warranty by manufacturer

  • Secured Payment Method

    Your cart is always secure to shop

  • Easy Return Policy

    24 hours return without physical defect.

Description

Amprobe’s hand-held residential and commercial Voltage and Continuity Testers are loaded with safety, time-saving and accuracy features. They allow you to quickly troubleshoot voltage and continuity for residential and commercial applications using visual and audible alerts.

Quickly measure AC and DC voltage in circuitry and its components—including outlets, light fixtures, batteries and extension cords— as well as test the continuity of fuses, light bulbs and electrical connections.

In addition to full range polarity detection, they both signal continuity and voltage with visual and audible alerts. On its face, seven LED indicators clearly differentiate between key voltage levels: 24, 120, 208, 240, 277, 480, 600 V AC; and 6, 12, 24, 36, 48,110, 220 V DC.

To increase accuracy and speed, the VPC-10A turns on when a complete circuit is sensed, automatically select AC or DC voltage or continuity mode, and auto-off when removed from a circuit.

Measuring under 6 inches long and weighing less than half a pound, its rugged, compact design allows for easy one-handed use. With an operating battery life of 40 hours and operating temperature ranging from 41 degrees F to 140 degrees F, this tool is just as rugged and reliable as it is safe.

Key Features

  • Quickly troubleshoot voltage and continuity and detect presence of voltages easily

  • Turns on when a complete circuit is sensed, automatically selects AC or DC voltage or continuity mode, and autos-off when removed from a circuit

  • Seven visual voltage indicators clearly differentiating between key voltage levels

Specifications

Features
LED Voltage range 24…600 VAC, 6…220 V DC
LED voltage indicators AC volts: 24 V, 120 V, 208 V, 240 V, 277 V, 480 V, 600 V, DC volts: 6 V, 12 V, 24 V, 36 V, 48 V, 110 V, 220 V
Frequency range 50 to 60 Hz
Acoustic indication ≥ 24 VAC, ≥ 6 V DC
Built-in vibration alert –
Tolerances LEDs -30% to 0% of reading
Voltage detection Automatic
Hazardous voltage indication ≥ 24 VAC; ≥ 48 V DC
Range detection Automatic
Polarity detection Full range
Continuity indication LED and buzzer ( 0 to 45 kΩ ON; >85 kΩ OFF)
Continuity range 0 to 45 kΩ
Continuity tolerances 0% to +50%
Continuity buzzer 3 kHz
VolTect™ non-contact voltage –
Work light –
Input impedance 1 MΩ
Operating time 30 seconds ON maximum and wait for five minutes before taking another measurement
Operating altitude ≤ 6561 ft (2000 m)
Operating temperature 41 °F to 122 °F (5 °C to 50 °C)
Storage conditions -22 °F to 140 °F (-30 °C to 60 °C)
Humidity (Without Condensation) ≥ 80% RH at 41 °F to 104 °F (5 °C to 40 °C); ≥ 50% RH at > 104 °F to 122 °F (> 40 °C to 50 °C)
Pollution degree 2
Power supply Three 1.5 V battery AAA, LR03, UM4 or equivalent
Battery life 40 hours (alkaline) (typical)
Electrical safety CAN/CSA-C22.2 No. 61010-1-12, UL Std. No. 61010-1 (3rd Edition),
CAN/CSA-C22.2 No. 61010-031-07, UL 61010-031 (1st Edition – 2007),
CAN/CSA-C22.2 No. 61010-2-030-12, UL 61010-2-030(1st Edition -2012)
Overvoltage category CAT III 600 V
In CAT III environments, use the test probes with the probe caps on.This decreases the exposed probe tip to reduce the possibility of an arc flash from short circuits. When the probe cap is off, the probe tip is 18 mm and rated to CAT II 1000 V.
EMC Conforms to IEC 61326-1
Dimensions (H x W x D) 5.90 x 2.13 x 1.34 in (150 x 54 x 34 mm)
Weight Approximately 0.45 lb (205 g) with batteries installed

What’s Included

  • VPC-10A
  • 3 x 1.5 V AAA batteries

What’s Included

  • VPC-10A
  • 3 x 1.5 V AAA batteries
