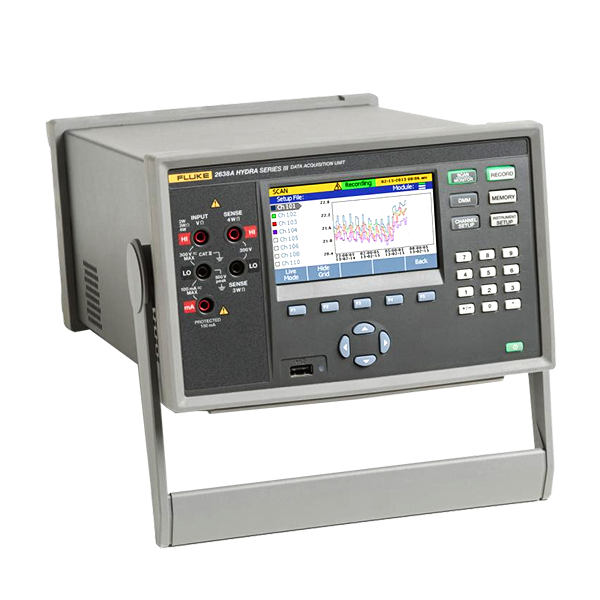

Model: Fluke 2638A Hydra Series III Data Acquisition System

Fluke 2638A Hydra Series III Data Acquisition System, multi-channel data acquisition. The new Series III improves on Hydra's industry-leading thermocouple accuracy and adds a new dimension to how you collect and view data in a portable system.

DC measurement accuracy of 0.0024 %, basic 0.5 °C thermocouple accuracy, full-color display, easy-to-use menu system, and industrial safety ratings put the 2638A in a category of its own as a precision data acquisition system. The dedicated 6.5 digits digital multimeter (DMM) mode provides additional utility and value.

The 2638A is expandable from 22 to 66 channels of differential analog inputs. A flexible, 22-channel Universal Input Connector lets you connect and disconnect any type of input to any channel, quickly and easily. Selectable inputs include dc voltage, ac voltage, resistance, thermocouple, RTD, thermistor, frequency and dc, and ac current. You can also use the 2638A with optional software and other Fluke data loggers to create a flexible, customized data acquisition system with an almost unlimited number of channels.

So, the benefits, accuracy and many more this are going to these Fluke Hydra Series III Data Acquisition System. Now, Easily you can depend on. Keep this and find out the best result that you always want for. Buy buy now from Tools Bangladesh.

Key features: Fluke 2638A Hydra Series III Data Acquisition System

  • DC accuracy of 0.0024%
  • Thermocouple accuracy of 0.5°C
  • 22 universal differential isolated inputs
  • On-screen color trend graphing and analysis
  • Easy-to-use menu system for setup and data management
  • Input types: ac V, dc V, ac I, dc I, thermocouple, PRT (2, 3, 4 w), thermistor, resistance (2-4 w), frequency
  • Multi-channel real-time data display
  • 6.5-digit bench DMM function for front-panel inputs
  • Monitor function for real-time viewing and charting between scans
  • 20 on-board math channels
  • One-button screen capture of chart or data displays
  • 45 channels/second basic DC scan rate
  • Internal 75,000 scan/setup file memory
  • USB flash drive support
  • Data security features
  • CAT II 300 V input safety rated
  • Supported by TQSoft and TQAero thermal validation software for enhanced data collection in regulated industries

Specifications: Fluke 2638A/05 Hydra Series III 22-Channel Data Acquisition System

Accuracy quoted as ± % measurement; quoted best value in range; 1 year specifications

Technical Specifications
DC volts Range 100 MV to 300 V
Resolution 0.1 µV to 1 mV
Accuracy 0.0024%
AC volts Range 100 MV to 300 V
Resolution 0.1 µV to 1 mV
Accuracy 0.11%
Resistance Range 100 Ω to 100 MΩV
Resolution 0.1 mΩ to 100 Ω
Accuracy 0.01%
Frequency Range 20 Hz to 1 MHz
Accuracy 0.01%
RTD (Pt 100) Range -200°C
Resolution 0.001°C
Accuracy 0.016°C
J thermocouples Range -200°C to 1,000°C
Resolution 0.01°C
Accuracy 0.53°C
K thermocouples Range -200°C to 1,000°C
Resolution 0.01°C
Accuracy 0.60°C
T thermocouples Range -270°C to 400°C
Resolution 0.01°C
Accuracy 0.62°C
Other thermocouple types R, S, N, E, B, C, D, G, L, M, U, W
General Specifications
Channel capacity Analog inputs 22 channels; 8 digital I/O and 6 alarm outputs (TTL)
Totalizer 1
Power Voltage 100 V to 264 A in 4 power model selections (100 V, 120 V, 220 V, 240 V)
Frequency 47 Hz to 440 Hz (automatically sensed when turned on)
Power consumption 34 V A peak (24 W average)
Communication LAN 10/100 Mb TCPIP DHCP
Remote commands SCPI command set
Internal memory 57,000 scans 1000 setup files
File security Dual level, Administrator, five secure users, Guest status
Alarm outputs 6 TTL alarm outputs -- assignable to one or multiple channels
Alarm setpoints 2 assignable setpoints/channel, Hi Lo, Hi Hi, Lo Lo
Language menus English, Chinese, French, German, Japanese, Korean, Portuguese, Russian, Spanish
Temperature Operating 0°C to 50°C
Storage 20°C to 70°C
Warm-up One hour to full uncertainty specifications
Relative humidity (non-condensing) Operating 0°C to 28°C < 90%, 28°C to 40°C < 75%, 40°C to 50°C < 50%
Storage 20°C to 70°C <95%
Weight 6 kg (13.2 lbs)
Dimensions 150 x 285 x 385 mm (5.91 x 11.22 x 15.16 in)
Standard rack height 3 U

Includes: Fluke 2638A Hydra Series III Data Acquisition System

Model Name Description
2638A/60

Data Acquisition Unit / Data Logger: 60 universal channels. Includes three relay boards (2638A-RLY) and three 2638A-100 connectors.

This product ships with the relay board and Universal Input Connectors installed, test leads, product manual, safety information and warranty registration on CD, power cord, screwdriver, and traceable report with data.

2638A/40

Data Acquisition Unit / Data Logger: 40 universal channels. Includes two relay boards (2638A-RLY) and two 2638A-100 connectors.

This product ships with the relay board and Universal Input Connectors installed, test leads, product manual, safety information and warranty registration on CD, power cord, screwdriver, and traceable calibration report with data.

2638A/20

Data Acquisition Unit / Data Logger: 20 universal channels. Includes one relay board (2638A-RLY) and one 2638A-100 connector.

This product ships with the relay board and Universal Input Connectors installed, test leads, product manual, safety information and warranty registration on CD, power cord, screwdriver, and traceable calibration report with data.

2680A-APSW v6.0

Fluke DAQ 6.0 Application Software for Fluke data acquisition products.

TQSOFT-IQ/OQ

TQSoft Pharma Process Analysis and Validation Software

TQAERO

TQAero Furnace Validation Software

VAL-BNDR-TQS

Validation Reference Binder

Accessories: Fluke 2638A Hydra Series III Data Acquisition System

Accessory Description
2638A-20CHKIT

 20-Channel Expansion Kit for 2638A (includes 1 relay board and 2638A-100 connector)

2638A-100

 Extra Universal Input Module for 2638A

2638A-RLY

 Extra Relay Board for 2638A (Replacement)

Y2638S

19-Inch Rackmount, Single/Dual Mounting, 2638A

Y2638D

19-inch Rackmount, Dual Mounting, 2638A

2638A-101

10 Ohm Shunt Resistors (Quantity 10 Each) 100 mA Max, 0.05%

2638A-1GB

 1 GB USB Flash Memory

2638A/CASE

 2638A Transit Case

Priority Gold Instrument CarePlan

Fluke Calibration Priority Gold Instrument CarePlans are available for most calibration products. Please contact your local Fluke Calibration sales representative for details or to request a quote.

Silver CarePlan

Fluke Calibration Silver CarePlans are available for most calibration products. Please contact your local Fluke Calibration sales representative for details or to request a quote.
