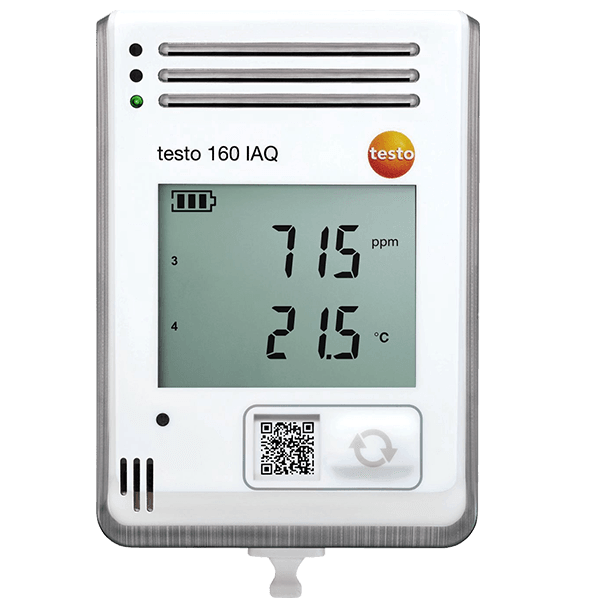

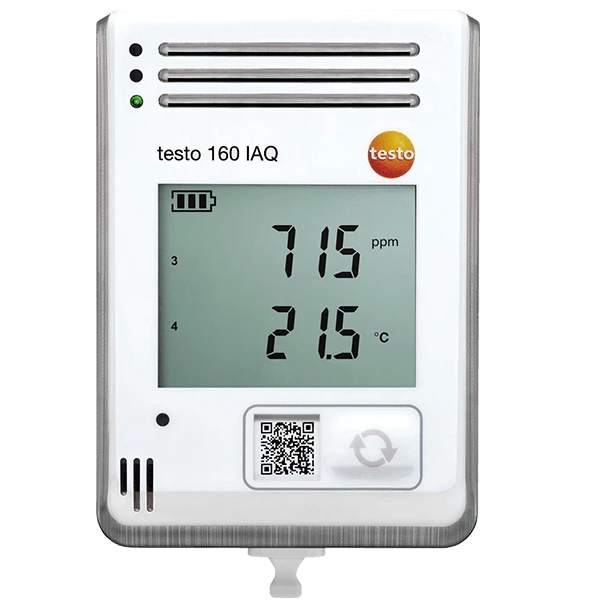

Testo 160 IAQ WiFi data logger with display and integrated sensors for temperature in a room, the atmosphere setting deteriorates. Reliable monitoring is particularly important because the indoor sky mood is linked to our dexterously-innate. The WiFi data logger testo 160 IAQ is ideal for monitoring indoor atmosphere air in gift running.
Key Features: Testo 160 IAQ WiFi data logger with display and integrated sensors for temperature
-
Ideal for monitoring indoor air quality (IAQ)
-
Blends in perfectly with the surroundings thanks to an optional, customizable deco-cover
-
Simple to install, integrate and operate – particularly user-friendly with air quality displayed in the form of a traffic light system
-
Perfectly networked: data storage in the Testo Cloud, real-time alarm via email or SMS (optional in conjunction with an Advanced license)
Specifications: Testo 160 IAQ WiFi data logger with display and integrated sensors for temperature
| Humidity - Capacitive |
|
Measuring range
|
0 to 100 %RH (non-condensing)
|
|
Accuracy
|
±2.0 %RH at +25.0 and 20 to 80 %RH
±3.0 %RH at +25.0 and < 20 and > 80 %RH
±1.0 %RH hysteresis
±1.0 %RH / year drift
|
|
Resolution
|
0.1 %RH
|
| Absolute Pressure |
|
Measuring range
|
600 to 1100 mbar
|
|
Accuracy
|
±3 mbar at +22 °C
|
|
Resolution
|
1 mbar
|
| Ambient CO₂ |
|
Measuring range
|
0 to 5000 ppm
|
|
Accuracy
|
±(50 ppm + 3 % of mv) at 25 °C
Without external power supply:
±(100 ppm + 3 % of mv) at 25 °C
|
|
Resolution
|
1 ppm
|
| Temperature |
|
Measuring range
|
0 to +50 °C
|
|
Accuracy
|
±0.5 °C
|
|
Resolution
|
0.1 °C
|
| General technical data |
|
Dimensions
|
117 x 82 x 32 mm (LxWxH)
|
|
Operating temperature
|
0 to +50 °C
|
|
Product-/housing material
|
PC - ABS
|
|
Protection class
|
IP20
|
|
Product colour
|
white
|
|
Communication rate
|
Dependent on Cloud licence; Basic: 15 min … 24 h / Advanced: 1 min … 24 h
|
|
WLAN Connectivity
|
supported wireless LAN standards: IEEE 802.11 b/g/n and IEEE 802.1X; Possible encryption methods: WPA2 Enterprise: EAP-TLS, EAP-TTLS-TLS, EAP-TTLS-MSCHAPv2, EAP-TTLS-PSK, EAP-PEAP0-TLS, EAP-PEAP0-MSCHAPv2, EAP-PEAP0-PSK, EAP-PEAP1-TLS, EAP-PEAP1-MSCHAPv2, EAP-PEAP1-PSK, WPA Personal, WPA2 (AES), WPA (TKIP), WEP
|
|
Measuring rate
|
Dependent on Cloud licence; Basic: 15 min … 24 h / Advanced: 1 min … 24 h
|
|
Alarm function
|
LED (traffic light function: red, yellow, green)
|
|
Battery life
|
1 year
|
|
Display type
|
LCD (Liquid Crystal Display)
|
|
Power supply
|
4 x AA batteries 1.5 V, alternatively mains unit via USB connection
|
|
Interface
|
USB
|
|
Radio range
|
100 m
|
|
Memory
|
32,000 Measuring values / Sum of all channels
|
|
Storage temperature
|
0 to +50 °C
|
|
Weight
|
269 g
|
|
Dimension display
|
55 x 42 mm
|
