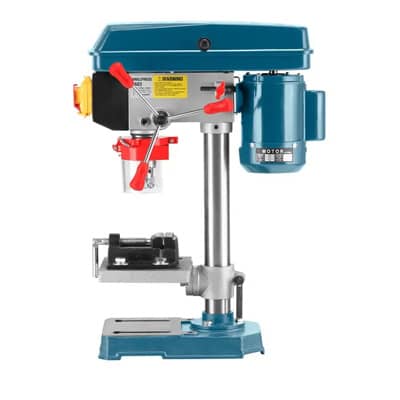

Ronix 2603 Electric Drill Press 350W-13mm:
The Ronix 2603 drill press has a 350W motor with 5-speed settings and overload protection to prevent motor damage. This drill press offers 5 pulley speeds for drilling into wood or metal. Its wide, heavy-duty feed handles provide additional leverage and control over the tool.
The chuck includes a 1.5mm to 13mm changeable keyed chuck for increased bit capacity. This chuck size is ideal for all applications. There is also an adjustable table for simple and accurate height adjustment and 0-45° (L&R) tilt capability for angled drilling. To reinforce the body of this drill, the working table and base are made of iron cast. The operator’s safety for the chuck is provided by a guard, which allows the user to operate more efficiently and effectively.
Are you trying to find a perfect set of drill machines? Yes, you are in the right place at the right time. Tools Bangladesh provides testing materials and equipment. You may purchase your desired tool from us in Bangladesh at a reasonable price with the greatest shipping options.
Key Features:
- 5 pulley speeds for drilling in to wood or metal
- Large, heavy-duty feed handles for increased leverage and maximum control
- 1.5 – 13mm adjustable keyed chuck for greater bit capacity
- Adjustable table for easy and accurate height adjustment includes with 0-45o (L&R) tilt ability for angled drilling
- Cast Aluminum belt Pulley
- Cast iron working tableAnd base
- Front Emergency Switch
- CHUCK GUARD
- 2.5' Bench vise
Specifications:
| Model |
2603 |
| Power |
350W |
| Chuck Capacity |
1.5-13mm |
| Voltage |
220-240V |
| Frequency |
50-60Hz |
| Drill Capacity wood |
20mm |
| Drill Capacity steel |
13mm |
| Drill Capacity Plastic |
16mm |
| Spindle Travel |
50mm |
| Class of Speed |
5 |
| Speed |
620-2620RPM |
| Spindle Taper |
B16 |
| Swing |
210mm |
| Distance from Spindle End to the Surface of Table |
220mm |
| Distance from Spindle End to the Surface of Base |
300mm |
| Table Size |
160*160 |
| Base Size |
190*290 |
| Column Diameter |
46mm |
| Height |
580mm |
| Weight |
15.5Kg |
| Supplied In |
Ronix color box |
| Includes |
Base, Bench vice, Chuck and chuck key, Pulley cover tip and nut, Handle, Working table, Column, Chuck guard |
