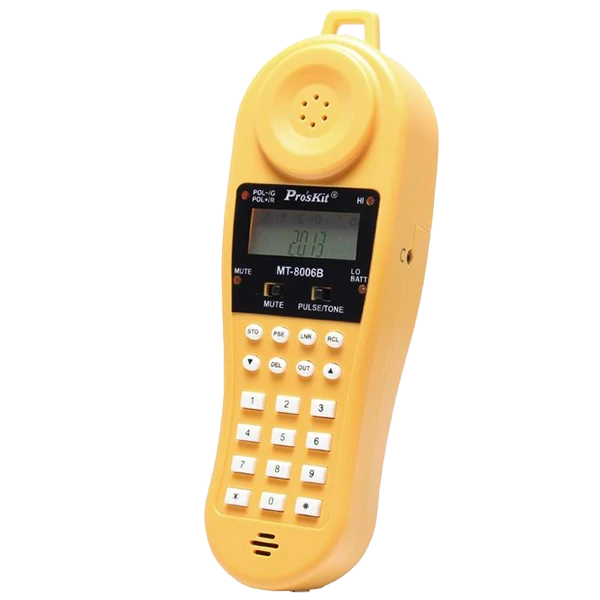

Name: Proskit MT-8006B Data Diver
Brand: ProsKit
Availability: InStock

Add To Cart

LCD display, Talk/Monitor, Polarity indication, Power saving, Hands-Free

LCD display for dialing number, Caller ID, Clock and other information
Indicator for determining the Line service and speed
High impedance monitor for data safe operation without disrupting existing traffic.
Smart power-saving enables battery life up to 6 months
12 phone number memory for speed dialing
16 dialing number of memories
Tone (DTMF) and pulse operation
Up to 32 digits phone number memory for speed dialing key
Pre-dialing and last number redial function
PBX pause key, insert a PBX pause in stored numbers
Telephone line polarity indicators
Low battery indication
Backlight function
RJ-11 port for easy test leads change
Ringer and voltage LED indication
Angled bed of nails and RJ-11 plug

Electrical
Loop limit	2 KΩ maximum at 48 Vdc (nominal 20 mA minimum loop current)
DC resistance
Talk Mode Monitor impedance	300Ω typical >39kΩ nominal at 1 KHz
Rotary dial output
Pulsing rate Percent break Inter digit interval Leakage during Break	10pps+0.8pps 60/40%±2% 1000 ms typical >130 KΩ
DTMF output
Tone frequency error Tone level High versus low tone Difference	±1.5% maximum -8±2dBm combined (typical) 4 dB maximum
Memory dialing
Memory capacity Digit capacity PBX pause duration Power source	12 memories 16 digits per memory 1~3.6 seconds 4pcs 1.5V AAA batteries (not included)
PHYSICAL(Hook included)
Measurement Weight	218.5 ×69.5 × 49mm (8.6” × 2.7” × 1.9”) 208g typical
