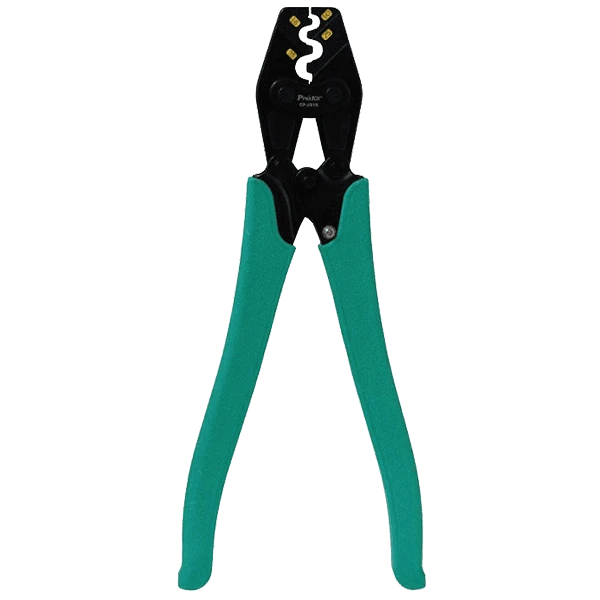

Name: Proskit CP 351B Non insulated Terminals Ratchet Crimping Tool
Brand: ProsKit
Availability: InStock

Proskit CP 351B Non insulated Terminals Ratchet Crimping Tool that is the AWG 8-2 - Visit and view our entire SkyGeek, Tools & Hangar Equipment.

The accurate crimping mold and self-locking/releasing mechanical unit design ensure high crimping quality when crimping repeatedly.

New mechanism ratcheting crimper designed for non-insulated terminals, energy-saving up to 35%.
High leverage handles, compound action mechanism provides superior mechanical advantage.
The accurate crimping mold and self-locking/ releasing mechanical unit design ensure high crimping quality when crimping repeatedly.
Made of high-quality carbon steel with black oxide finish for anti-rust.
Ergonomically shaped non-slip TPR handle with eyelet design for user comfort and easy storage.
There are 4 different sizes for choosing to meet most applications.
Ideal for electronics, electrical and home electricity installation purpose.

Model No.	Material	HRC	Handle	Crimper die profile	Application	OAL(mm)	Individual packing
CP-151B	Frame:S45C Die: AISI 4140	40˚- 42˚	TPR		Non-insulated spade/ring terminals,AWG 22-16/16-14/12/10, JIS 1.25/2.0/3.5/5.5 mm² DIN 1.5/2.5/4.0/6.0 mm²	176	Blister card
CP-251B	Frame:S50C Die: AISI 4140	45˚±3˚	TPR		Non-insulated spade/ring terminals,AWG 22-16/16-14/12-10/8/6,DIN 1.5/2.5/6.0/10/16 mm² JIS 1.25/2.0/5.5/8.0/14 mm²	245
CP-351B	Frame:S50C Die: AISI 4340	45˚±3˚	TPR		Non-insulated spade/ring terminals, AWG 8/6/4/2, DIN 10/16/25/35 mm², JIS 8/14/22/38 mm²	350
CP-353	Frame:S45C Die: AISI 4140	45˚±3˚	TPR		AWG 12-10 / 8 / 6 / 4, DIN 4-6 / 10 / 16 / 25 mm² , JIS 5.5 / 8.0 /14 / 22 mm²	332
