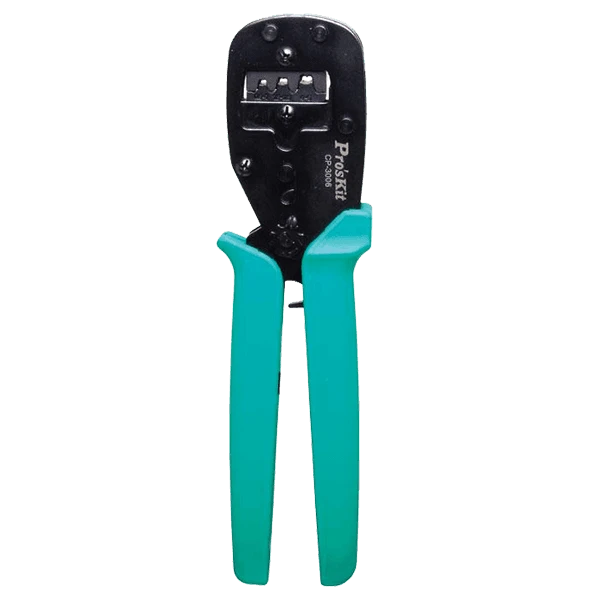

Proskit CP 3006FD2 Parallel Action Crimping Tool is a premium quality Crimping Plier from Proskit. This is a well-known eCommerce platform for the qualitative range of Crimping Plier.
Proskit CP-3006FD2, Parallel Action Crimping Tool For Non-insulated Open Barrel Connectors, Commercial Type
Key Features: Proskit CP 3006FD2 Parallel Action Crimping Tool
- Reliable: Parallel action crimping performance is consistent and accurate
- Practical: Safety crimp release helps eliminate rejected terminations due to incorrect positioning.
- Comfortable: Ergonomically shaped non-slip TPR handle for comfortable use in all conditions
- Versatile: Interchangeable die sets for a wide range of applications.
Specifications: Proskit CP 3006FD2 Parallel Action Crimping Tool
|
Material |
Handle |
HRC |
OAL(mm) |
Individual Packing |
|
S50C |
TPR |
45?±3? |
254 |
Blister card |
| Model No. | DIE Set | Crimp die profile | Application | Terminails |
| CP-3006F | Frame only | |||
| CP-3006FD2 |  |
 |
Non insulated open barrel connectors, commercial type AWG 22-18/16-14/12-10 DIN 0.5-1.0/1.5-2.5/4.0-6.0 mm2 JIS 0.35-0.9/1.25-2.0/3.5-5.5 mm2 |
 |
| CP-3006FD18 |  |
 |
Pin terminal insulated or non-insulated ferrules, cord end terminals AWG 22/20/18/16/14/12 DIN 0.5/0.75/1.0/1.5/2.5/4.0 mm2 JIS 0.35/0.5/0.9/1.25/2.0/3.5 mm2 |
 |
| CP-3006FD36 |  |
 |
Non-insulated open barrel connectors &D-SUB V.35 contact pins AWG 30-24/22-18 DIN 0.05-0.25/0.50-1.0 mm2 JIS 0.05-0.25/0.35-0.9 mm2 |
|
| CP-3006FD45 |  |
|
Non-insulated open barrel connectors AWG 22-18/16-14/12-10 DIN 0.5-1.0/1.5-2.5/4.0-6.0 mm2 JIS 0.5-0.9/1.25-2.0/3.5-5.5 mm2 |
|
| CP-3006FD46 |  |
|
Insulated open barrel connectors commercial type AWG 22-18/16-14 DIN 0.5-1.0/1.5-2.5 mm2 JIS 0.5-1.0/1.25-2.0 mm2 |
|
| CP-3006FD47 |  |
|
Insulated open barrel connectors commercial type AWG 20-18/16-14/12-10 DIN 0.5-1.0/1.5-2.5/4.0-6.0 mm2 JIS 0.5-1.0/1.25-2.0/3.5-5.5 mm2 |
|
| CP-3006FS1 |  |
 |
For MC 3 solar connector (Multi-Contact)& 2.5/4.0/6.0 mm2 (AWG 14/12/10) solar cable AWG 14/12/10 DIN 2.5/4.0/6.0 mm2 |
 |
| CP-3006FS2 |  |
|
For MC 4 solar connector (Multi-Contact)& 2.5/4.0/6.0 mm2(AWG 14/12/10) solar cable AWG 14/12/10 DIN 2.5/4.0/6.0 mm2 |
