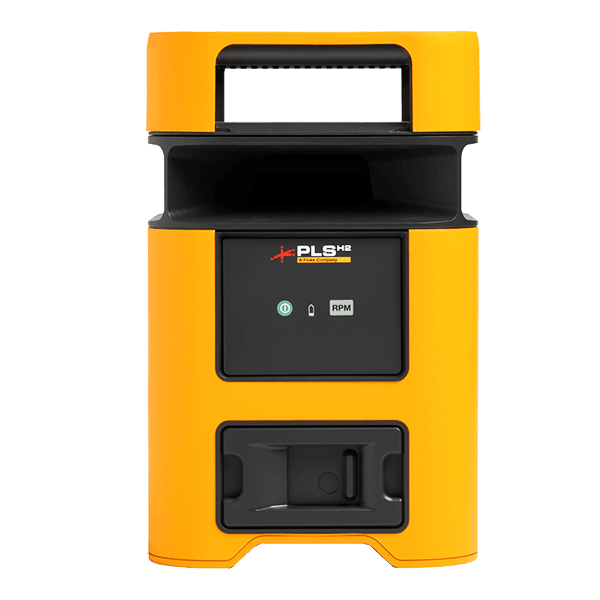

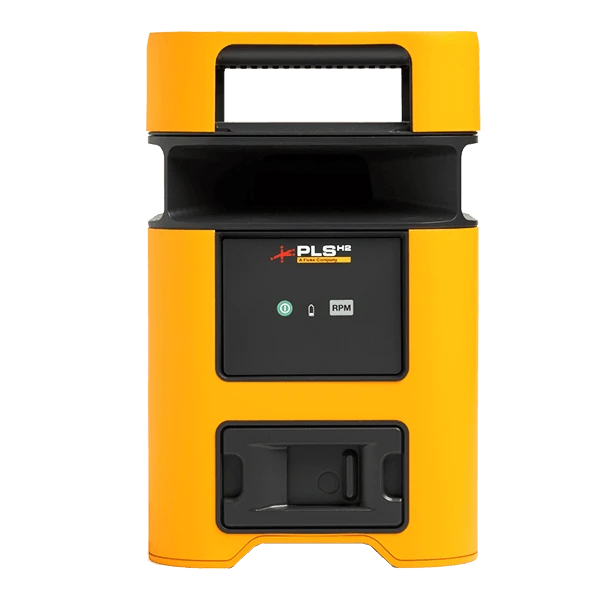

The PLS H2 rotary laser is meant for the construction job site, offering a rugged ergonomic design and simplified controls. The H2 model is a horizontal isolated rotary laser that offers a easy one-button operation.
The H2 rotary laser is ideal for use by general contractors, electricians, plumbers, and landscapers in both interior and exterior applications.
Key features: PLS H2 Rotary Laser Level
- Accuracy: ≤ 2.2 mm @ 30 m (≤ 3/32 in @ 100 ft)
- Working range: ≤ 30 m (100 ft)
- Working range with XLD: ≤ 300 m (1000 ft)
- 1-meter drop tested
- IP67 certified protected from dust and immersion in water with a depth of up to 1 m (or 3.3 ft) for up to 30 minutes
Specifications: PLS H2 Rotary Laser Level
| Rotary levels |
PLS H2 |
|
| Laser |
Class II red |
| Laser axis |
Horizontal only |
| Accuracy |
≤ 2.2 mm @ 30 m (≤ 3/32 in @ 100 ft) |
| Auto-leveling range |
± 5-degrees |
| Manual slope range |
± 5-degrees |
| Working range |
Without XLD laser detector |
≤ 30 m (100 ft) |
| With XLD laser detector |
≤ 300 m (1000 ft) |
| Weight |
2.89 kg (6.4 lb) |
| Drop test |
1 m |
| IP rating |
IP67 |
| Operating temperature |
-20 °C to 50 °C (-4 °F to 122 °F) |
| Battery |
4 x D Alkaline or NiMH rechargeable |
| Battery life |
> 60 hours |
| Accessories |
PLS XLD Rotary Laser Detector |
| Working range |
300m (1000 ft) |
| Dimensions |
135 mm x 69 mm x 25 mm |
| Weight |
0.19 kg (0.42 lbs) |
| Drop test |
1 m |
| IP rating |
IP67 |
| Operating temperature |
-20 °C to 50 °C (-4 °F to 122 °F) |
| Battery |
1 x AA Alkaline |
| Battery life |
> 50 hours |
| Visible spectrum |
450 nm – 800 nm |
| Accuracy |
Fine |
1 mm (0.05 in) |
| Medium |
2 mm (0.1 in) |
| Coarse |
5 mm (0.2 in) |
| Electromagnetic Compatibility (EMC) |
| International |
IEC 61326-1: Basic Electromagnetic Environment CISPR 11: Group 1, Class B |
| Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself. |
| Class B: Equipment is suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes. |
| Emissions that exceed the levels required by CISPR 11 can occur when the equipment is connected to a test object |
| Korea (KCC) |
Class B Equipment (Broadcast communications equipment for home) |
| USA (FCC) |
47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103. |
Models: PLS H2 Rotary Laser Level
- PLS H2 Rotary Laser Level
- PLS BP10 Alkaline Battery Tray with 4x D batteries
- Safety Sheet and Quick Reference Guide
