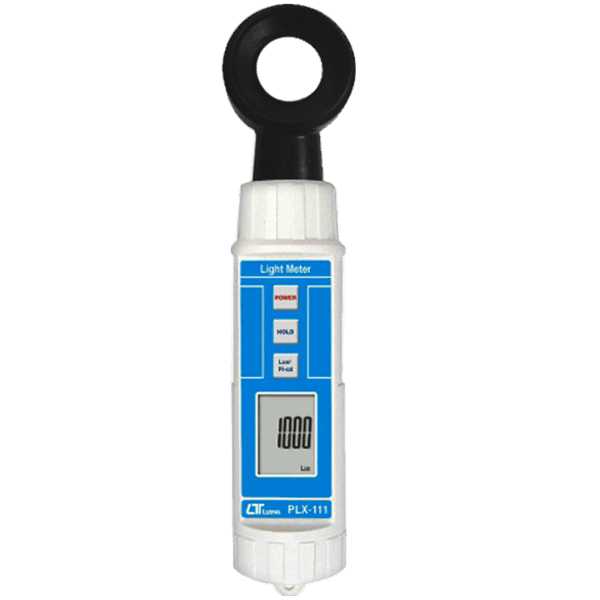

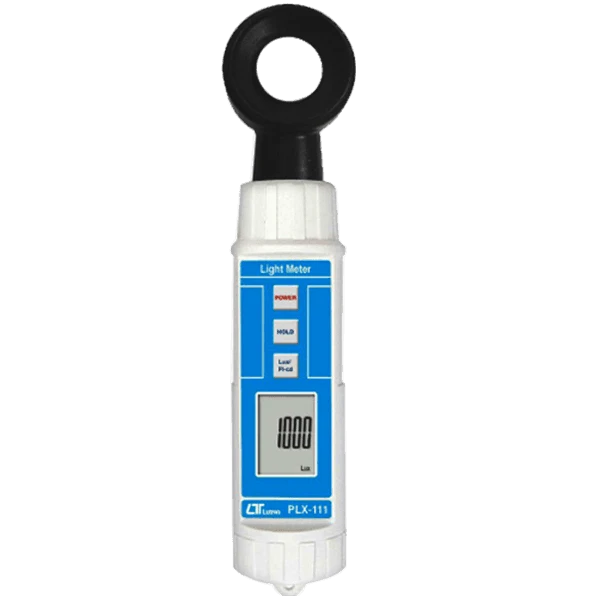

Lutron PLX 111 Light Meter is the ruggedly and keep the ability to bring out the accurate result. Wide measuring range, 0 to 20,000 Lux. Lux & Foot-candle ( Ft-cd ) unit selection. High resolution : 1 Lux, 0.1 Ft-cd. The sensor used the exclusive photo diode & color correction filter, spectrum meets C.I.E. photopic. The sensor cosine correction factor meets the standard. All in one, meter build in the light sensor, easy operation
Key Features: Lutron PLX 111 Light Meter
- Wide measuring range, 0 to 20,000 Lux.
- Lux & Foot-candle ( Ft-cd ) unit selection.
- High resolution : 1 Lux, 0.1 Ft-cd.
- Sensor used the exclusive photo diode & color correction filter, spectrum meet
- C.I.E. photopic.
- Sensor cosine correction factor meet standard.
- All in one, meter build in the light sensor, easy operation.
- Microprocessor circuit ensures high accuracy and provides special functions and
- features.
- Data hold, to freeze the desired reading value.
- Auto power off saves battery life.
- Operates from DC 1.5V ( UM4/AAA ) x 4 PCs batteries.
- Light sensor protection cover is the standard accessory.
- Microprocessor circuit ensure high accuracy, and also and also provides special
- functions and features.
- Durable, long-lasting components, enclosed in strong, compact ABS-plastic housing
SPECIFICATIONS: Lutron PLX 111 Light Meter
- Display: LCD size 28×19 mm
- Measurement range/unit :
- Lux : 0 to 20.000 lux (auto range)
- Footcandle : 0 to 1.860 lux (auto range)
- Sensor: The exclusive photo diode and color correction filter, spectrum meet C I E Cosine correction factor meet the standard
- Circuit: Custom one-chip of microprocessor LSI circuit
- Data hold : freeze the display reading
- Over indication : show “—-“
- Sampling time : Approx. 1 second
- Power off : Auto shut off saves battery life
- Operating Temp : 0 to 50 ° C.
- Operating humidity : Less than 80% RH
- Power supply : DC 1.5 V battery (UM4/AAA) x 4 PCs
- Power current : Approx DC 5.5 mA
- Weight : 190g/ 0.2 LB
- Dimension : 210x49x40 mm
