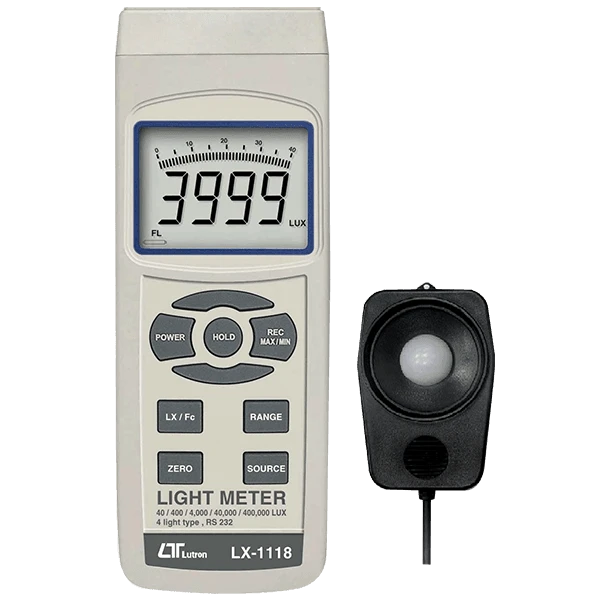

Key Features: Lutron LX 1118 Light Meter
• Large LCD display with bar graph.
• 40.00/400.0/4,000/40,000/400,000 Lux.
• Lux or Foot-candle unit selection.
• 4 light type select.
• Sensor meet C.I.E. spectrum, 2 filters.
• Data hold, Record ( max., min. ).
• DC 1.5V battery ( UM-4, AAA ) x 6.

Specifications: Lutron LX 1118 Light Meter

• Display Large LCD display.
• LCD size 52 x 38 mm, 4 digits.
• with bar graph indicator.
• Measurement & ranges 5 ranges : 40.00 Lux, 400.0 Lux,
• 4,000 Lux, 40,000 Lux, 400,000 Lux. 4.000 Fc
• Unit Lux, Foot-candle ( Ft-cd ).
• Lighting TypeSelection Tungsten lamp, Fluorescent lamp,
• Sodium lamp, Mercury lamp.
• Sensor 9,300 Fc : The exclusive photo diode & color
• correction filter, spectrum meet C.I.E.
• Cosine correction factor meet standard.
• Zero Adjustment External adjustment by pushing button.
• 00 Lux range only
• Peak Hold To hold the peak display.
• Data Hold To freeze the display value.
• Memory Save the max. & min. value with Recall.
• Power Off Auto or manual power off.
• Over and Under Range Indication Over range indicator : “—— “
• Under range indicator : ” _ _ _ _ “
• Data Output RS-232 serial data output.
• Operating Temperature 0 ℃ to 50 ℃ ( 32 ℉ to 122 ℉ ).
• Operating Humidity Less than 80% RH.
• Power Supply DC 1.5 V battery ( UM4, AAA ) x 6 PCs, or equivalent.
• Power Consumption Approx. DC 8 mA.
• Weight 357 g/0.79 LB. * Battery is included.
• Dimension Main instrument : 174 x 68 x 42 mm ( 6.9 x 2.7 x 1.7 inch ).
• Light Sensor probe : 82 x 55 x 7 mm ( 3.2 x 2.2 x 0.3 inch )
• Accessories Instruction Manual. 1 PC.
• Included Light Sensor with protection cover. 1 PC
• Optional * Hard Carrying case, CA-06
• Accessories * Soft Carrying case, CA-05A
• RS232 cable, UPCB-02
• USB cable, USB-01
• Data Acquisition software,
• SW-801-WIN
