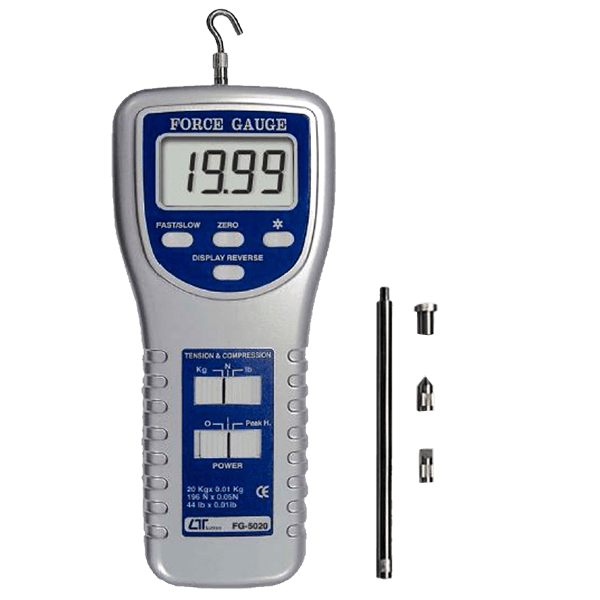

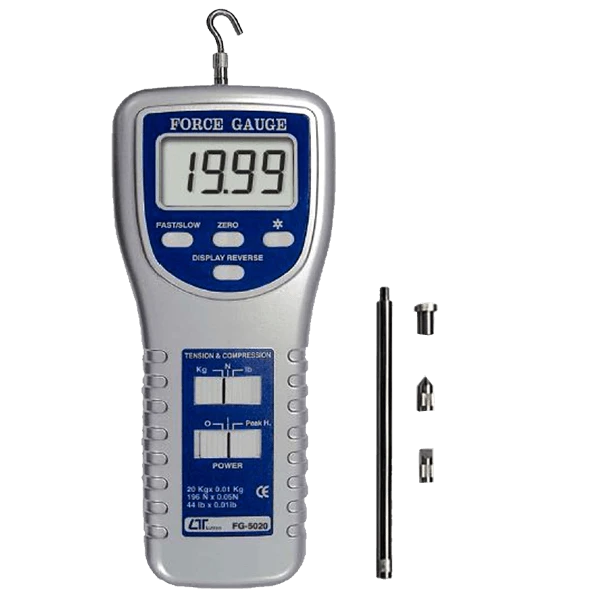

Lutron FG 5020 Force Gauge from Lutron is equipped with 5 digits LCD with backlight. Its RS-232 computer interface provides easy operation. Made of top grade materials, this force gauge is sure to provide reliable usage. Established in 1976, Lutron provides the most comprehensive and professional instruments to over 70 countries in the world. Lutron has an excellent global reputation via its wide range of high-quality products.
Key Features: Lutron FG 5020 Force Gauge
- Tension or compression measurements
- Range: 20kg, units: kg/LB/Newton
- Resolution: 10g
- Overload protection
- Fast/slow measurements
- Peak hold, zero functions
- RS-232 computer interface
Specifications: Lutron FG 5020 Force Gauge
- Display:LCD(liquid crystal display).5 digits, 16mm(0.63’’) digits size. Backlight.
- Display Direction: positive or Reverse direction, select by the push button on the front panel.
- Function:Tension & Compression(Push & Pull).Normal force, Peak hold(Max. Load).
- Circuit:exclusive microprocessor LSI-circuit.
- Power Supply: 6*1.5V AA(UM-3) size battery or DC 9V adapter(not included)
- Power Consumption: Approx. DC 28 mA.
- Transducer: Exclusive load cell.
- Operating Temperature:0oC to 50oC(32oF to 122oF).
- Operating Humidity: Less than 80% RH.
- Dimension:215*90*45mm(8.5*3.5*1.8 inch).
- Weight: 650g(1.43LB)/with batteries.
- Mounting Holes: the Main instrument with mounting holes is provided on the back case, easy stand mounting.
- Accessories Included:
- Operating manual...............................1 PC.
- Flat-head adapter..............................1 PC.
- Hook adapter..................................1 PC.
- Conehead adapter.............................1 PC.
- Chisel head adapter..............................1 PC.
- 120 mm extension rod.........................1 PC.
- Carrying case.........................................1 PC.
- Optional Accessories:
- Test stand, Model: FS-1001
- Wedge grip, Model: WG-01
- RS232 cable, Model: UPCB-01
- A USB cable, Model USB-01
- Software for data logging & data recorder.
- Model: SW-U801-WIN.
