KYORITSU KEW 4105DL EARTH TESTER:
The KYORITSU KEW 4105DL is a reliable earth tester designed for accurate measurement of earth resistance and soil resistivity. It features a dual display that allows users to view measurements simultaneously, enhancing convenience and efficiency. The device supports multiple testing modes, including 2-pole and 4-pole methods, making it versatile for various applications. With a built-in memory function to store measurement data and a user-friendly interface, the KEW 4105DL is ideal for professionals conducting grounding system evaluations and ensuring compliance with electrical safety standards in residential, commercial, and industrial environments.
Are you looking for an Earth Tester? Tools Bangladesh is an exclusive supplier in Bangladesh. Yes, now you are in the right place and can get this rugged and reliable earth tester at the best price in Bangladesh.
Key Features:
IP67 Dust & Water-Proof rugged EARTH TESTER
Cable Reel Set Model
- 3-Pole and 2-Pole Earth Resistance measurement (0.01-2000Ω)

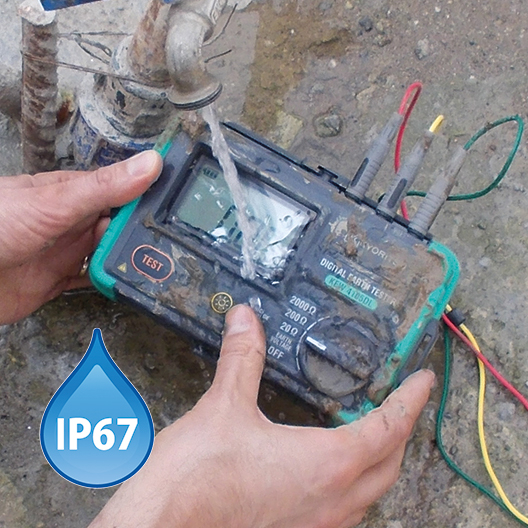

- Waterproof design (IP67)
- Rotary Switch makes the user interface very intuitive
- Large LCD Display with Backlight
- LED to monitor correct / non-correct auxiliary earth spike resistance
- Earth Voltage Measurement (AC/DC 0-300V)
- CAT Ⅳ 100V
Specifications:
Earth resistance
measurement |
20Ω |
200Ω |
2000Ω |
| |
Measuring range |
0.00 - 2000 Ω |
| Display range |
0.00 - 20.99 Ω |
0.0 - 209.9 Ω |
0 - 2099 Ω |
| Accuracy*1 |
±1.5%rdg±0.08 Ω*2 |
±1.5%rdg±4dgt |
| Auxiliary earth resistance*3 |
<10kΩ |
<50kΩ |
<100kΩ |
| Comparator reference value |
10Ω |
100Ω |
500Ω |
| Earth voltage measurement |
| |
Measuring range |
0 - 300 V AC (45 - 65Hz)
±0 - ±300 V DC |
| Display range |
0.0 - 314.9 V
0.0 - ±314.9 V |
| Accuracy |
±1%rdg±4dgt |
| Applicable Standards |
IEC 61010-1 CAT Ⅳ 100V / CAT Ⅲ 150V / CAT Ⅱ 300V Pollution degree 3
IEC 61010-2-030, IEC 61010-031, IEC 61557-1, 5
IEC 60529 (IP67), IEC 61326-1, 2-2 |
| Power source |
LR6(AA)(1.5V) × 6 |
| Dimension |
121(L) × 188(W) × 59(D) mm (including case lid) |
| Weight |
Approx. 690g (including batteries and case lid) |
| Accessories |
7127B (Simplified measurement probe)
8041 (Auxiliary earth spikes [2spikes/1set])
9121 (Shoulder strap)

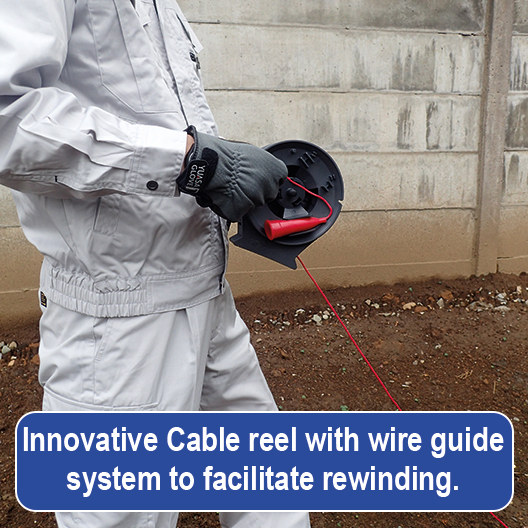

7267 (Cable reel for Earth resistance tester [red:20m])
7268 (Cable reel for Earth resistance tester [yellow:10m])
7271 (Earth resistance test lead [green:5m])

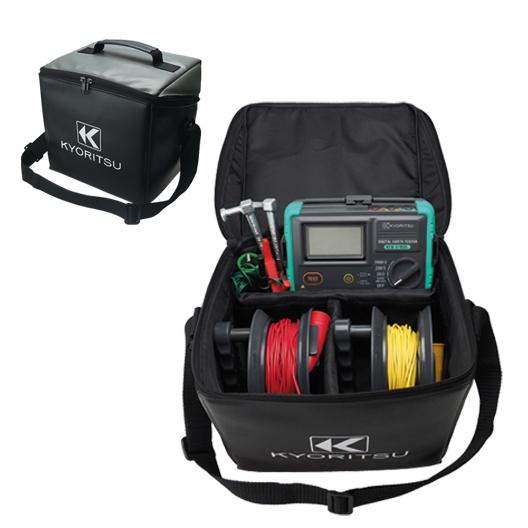

9190 (Carrying case)
LR6(AA) × 6, Instruction manual |
| Optional Accessories |
7266 (Earth resistance test leads [red:20m, yellow:10m, green:5m/1set])
7269 (Earth resistance test leads [red:20m])
7270 Earth resistance test leads [yellow:10m])
7272 (Precision measurement Cord set)
8259 (Adapter for measurement terminal)
9191 (Carrying case[Hard])
9192 (Carring case for cord reels) |
| Accessories |
7127B (Simplified measurement probe)
8041 (Auxiliary earth spikes [2spikes/1set])
9121 (Shoulder strap)
7267 (Cable reel for Earth resistance tester [red:20m])
7268 (Cable reel for Earth resistance tester [yellow:10m])
7271 (Earth resistance test lead [green:5m])
9190 (Carrying case)
LR6(AA) × 6, Instruction manual |
| Accessories |
7127B (Simplified measurement probe)
8041 (Auxiliary earth spikes [2spikes/1set])
9121 (Shoulder strap)
7267 (Cable reel for Earth resistance tester [red:20m])
7268 (Cable reel for Earth resistance tester [yellow:10m])
7271 (Earth resistance test lead [green:5m])
9190 (Carrying case)
LR6(AA) × 6, Instruction manual |
