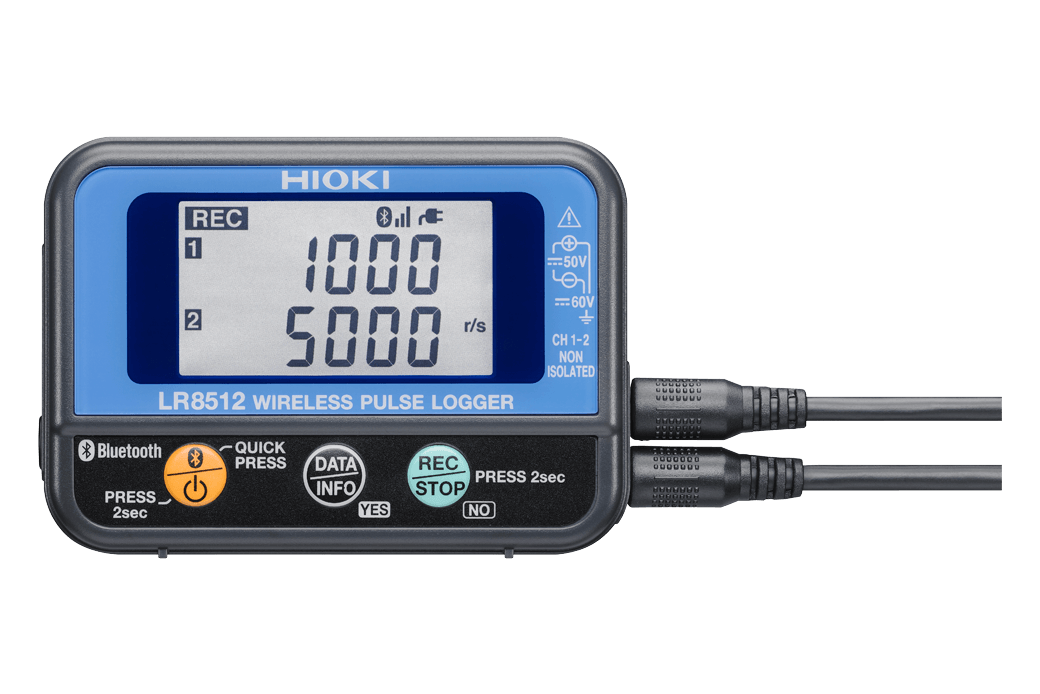

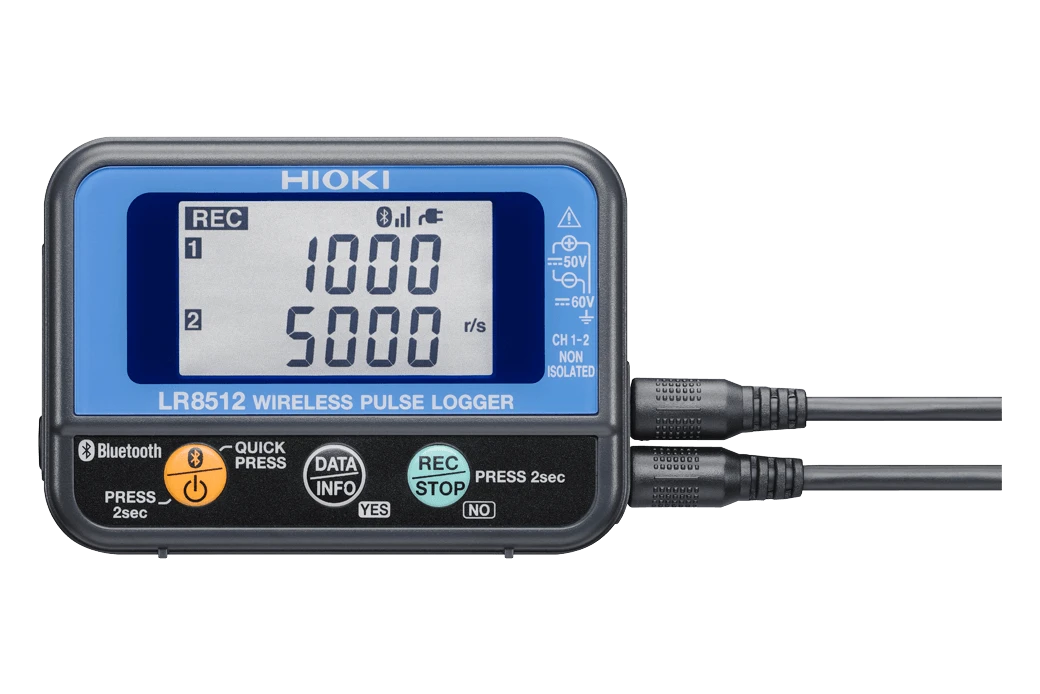

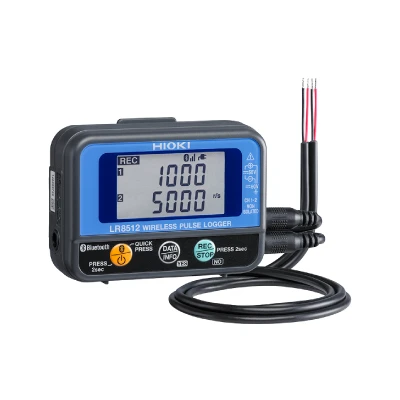

Hioki Memory HiLoggers are high-speed data loggers for recording multiple channels of voltage, temperature, resistance, or humidity signals, some models providing complete isolation between channels and strong noise resistance. The Hioki LR8512 is a wireless, 2-channel pulse input module that utilizes Bluetooth® technology to send measured data to an Android (TM) tablet. Discover the HIOKI Wireless Pulse Logger LR8512 price in Bangladesh. Reliable, compact data logging for pulse signal measurements.
Key Features
- For pulse totalization and measuring logical ON/OFF signals or revolutions
- Compact, two-channel model fits where other devices don’t
- Download measurement data to a tablet or computer with Bluetooth® wireless technology
- Three-way power (AC adapter, AA alkaline batteries, or external 5 to 13.5 V power supply)
- Store 500,000 data points per channel
Basic specifications
Accuracy guaranteed: 1 year
| Functionality |
[Used as standalone product (Data collected manually) ]
Windows PC or Windows tablet (CD-R with software included)
Android smartphone or Android tablet terminal
(Software can be downloaded free of charge from Google Play.)
*Communication range varies with the performance of the computer or tablet
(up to a line-of-sight distance of roughly 30 m)
[Used as logging module (Real-time measurement) ]
Device can be used as an LR8410 logging module to record and display data in real time and to control up to 7 units, Communication distance: 30 m |
| Number of channels |
2ch (common GND) |
| Measurement items |
Integrating (cumulative/ Instant), Revolution, Logic (Records a 1/0 for each recording interval) |
| Supported input format |
Non-voltage “a” contact (always-open contact point), open collector, or voltage input (DC 0 to 50 V) |
| Measurement range |
[Totalization] 0 to 1000 M pulse, Max. resolution 1 pulse,
[No. of revolutions] 0 to 5000/n [r/s], Max. resolution 1/n [r/s] |
| Display items |
Measurement value, date, time, number of recorded data, maximum value, minimum value, and average value |
| Functions |
Alarm, Scaling, Recording operation hold function, Erroneous operation prevention, Comment recording function, Power saving function, Authentication function |
| Recording |
[Capacity] 500,000 data items for each channel [Mode] Instantaneous value [Interval] 0.1 to 30 sec, 1 to 60 min, 16 selections |
| Power source |
AC Adapter Z2003 (100 to 240 V AC, 50/60 Hz), AA alkaline batteries (LR6) ×2, External power 5 to 13.5 V DC (can also be supplied from USB bus power, with a conversion cable) |
Continuous operating time
([Capacity] 500,000 data items for each channel) (23˚C) |
2 months (Recording interval of 1 min, Bluetooth® OFF), 14 days (Recording interval of 1 sec, Bluetooth® ON), 5 days (Recording interval of 0.1 sec, during real-time measurement with the LR8410) |
| Dimensions and mass |
85 mm (3.35 in) W × 61 mm (2.40 in) H × 31 mm (1.22 in) D, 95 g (3.4 oz) (excluding the battery) |
| Included accessories |
CD-R ×1 (Instruction Manual, Logger Utility, Wireless Logger Collector), Measurement Guide ×1, Caution for Using Radio Waves ×1, AA alkaline batteries (LR6) ×2, Connection cable L1010 ×2 |
Included accessories
CD-R ×1 (Instruction Manual, Logger Utility, Wireless Logger Collector), Measurement Guide ×1, Caution for Using Radio Waves ×1, AA alkaline batteries (LR6) ×2, Connection cable L1010 ×2
Included accessories
CD-R ×1 (Instruction Manual, Logger Utility, Wireless Logger Collector), Measurement Guide ×1, Caution for Using Radio Waves ×1, AA alkaline batteries (LR6) ×2, Connection cable L1010 ×2
