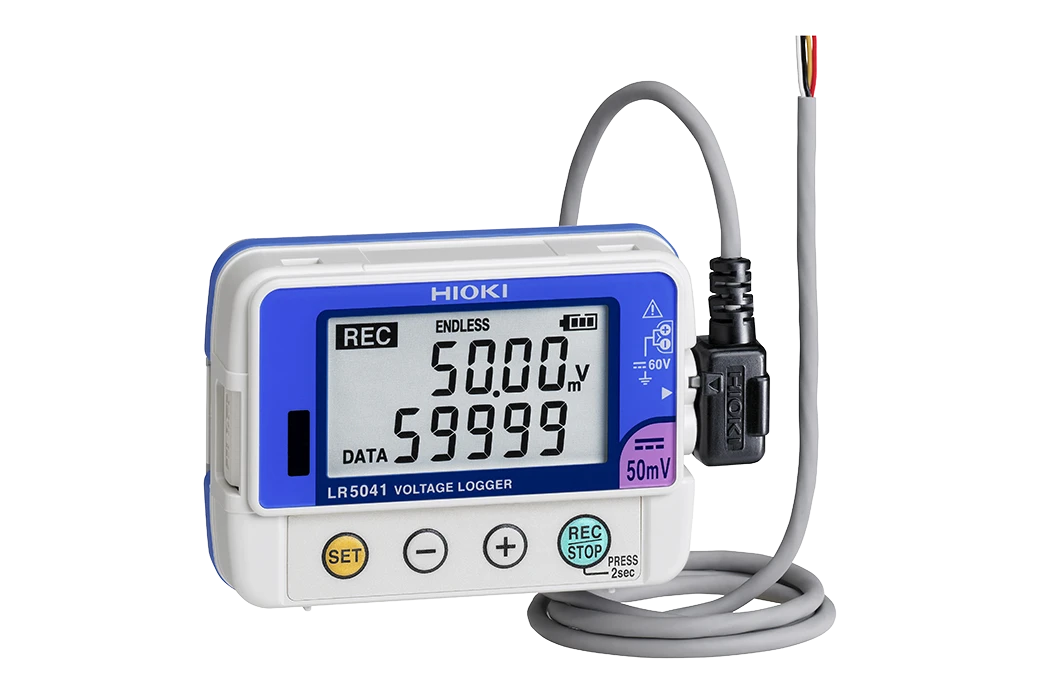

Record Instrumentation Signals and Measure Analog Output from Sensors and other Devices. Hioki compact 1 or 2-channel data loggers feature a 60,000 data set/channel memory to measure temperature, humidity, voltage or instrumentation signals. The LR504X series logs DC voltage over 1 channel in as fast as 1-second intervals, available in three different ranges. Discover the HIOKI Voltage Logger LR5041, LR5042, LR5043 price in Bangladesh. Reliable data logging for voltage monitoring needs.
Key Features
- Easily mount the light-weight , pocket-sized loggers in tight spaces
- Easy-to-see dual display
- Transfer data to PC even during recording*
- Replace batteries while recording (30 second limit)
- 3 times the memory capacity than predecessor (Record 60,000 data per channel)
- Record without missing fluctuations in STAT mode
- Measurement data is preserved even after the battery dies
- Worry-free backup preserves recorded data even if a new measurement is started by mistake
Basic specifications
Accuracy guaranteed: 1 year
| |
LR5041 |
LR5042 |
LR5043 |
| Measurement items |
DC voltage 1ch |
DC voltage 1ch |
DC voltage 1ch |
| Measurement range |
-50.00 to 50.00 mV |
-5.000 to 5.000 V |
-50.00 to 50.00 V |
| Accuracy |
±0.5 %rdg. ±5 dgt. |
| Storage capacity |
Instantaneous value mode: 60,000 data, Statistical value mode: 15,000 data |
| Recording interval |
1 to 30 sec., 1 to 60 min., 15 selections |
| Recording modes |
Instantaneous recording: at every recording interval
Statistical value recording: Measure at one second intervals, and record the instantaneous, maximum, minimum, and average values within every recording interval |
| Recording methods |
One-time recording: Stop recording when the memory capacity is full
Endless recording: Continue recording even when the memory capacity is full (old data is overwritten)
Start: Logger button operation or scheduled time
Stop: Logger button operation or scheduled time, or auto-stop when the memory capacity is full (at one-time recording) |
| Other functions |
Pre-heat function (requires external power supply during use of function), Always backs up last recorded data; backs up recorded data and setting conditions when battery power is low; guarantees approx. 30 sec. of recording operation and clock while battery is replaced |
| Waterproof and dust-proof |
IP54 (EN60529) (with connection cable connected, but not including cable tip) |
| Interfaces |
Infrared optical communications with LR5091, LR5092-20 |
| Power supply |
LR6 (AA) Alkaline battery ×1, Battery life: Approx. 2 years (Instantaneous recording, with 1-minute interval and auto power saving, at 20 °C), Approx. 2 months (Instantaneous recording, with 1-second interval at 20 °C) |
| Dimensions and mass |
79 mm (3.11 in) W × 57 mm (2.246 in) H × 28 mm (1.10 in) D, 105 g (3.7 oz) |
| Included accessories |
LR6 (AA) Alkaline battery (built-in internal) ×1, Connection cable LR9802 ×1, Instruction manual ×1, Operation guide ×1, Kickstand ×1 |
Included accessories
LR6 (AA) Alkaline battery (built-in internal) ×1, Connection cable LR9802 ×1, Instruction manual ×1, Operation guide ×1, Kickstand ×1
Included accessories
LR6 (AA) Alkaline battery (built-in internal) ×1, Connection cable LR9802 ×1, Instruction manual ×1, Operation guide ×1, Kickstand ×1
