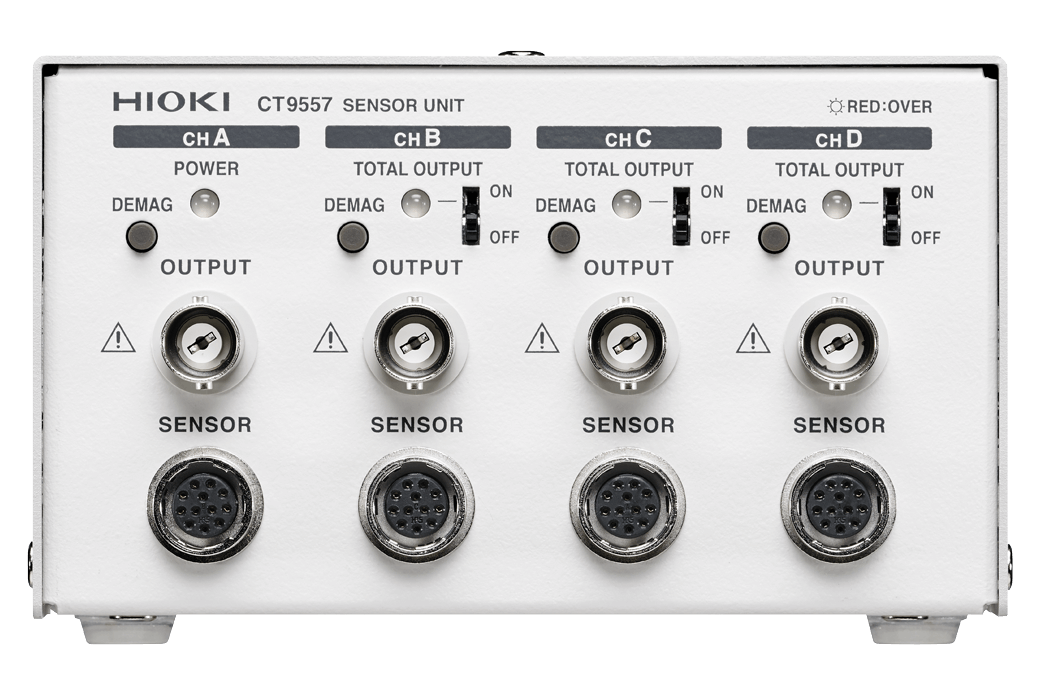

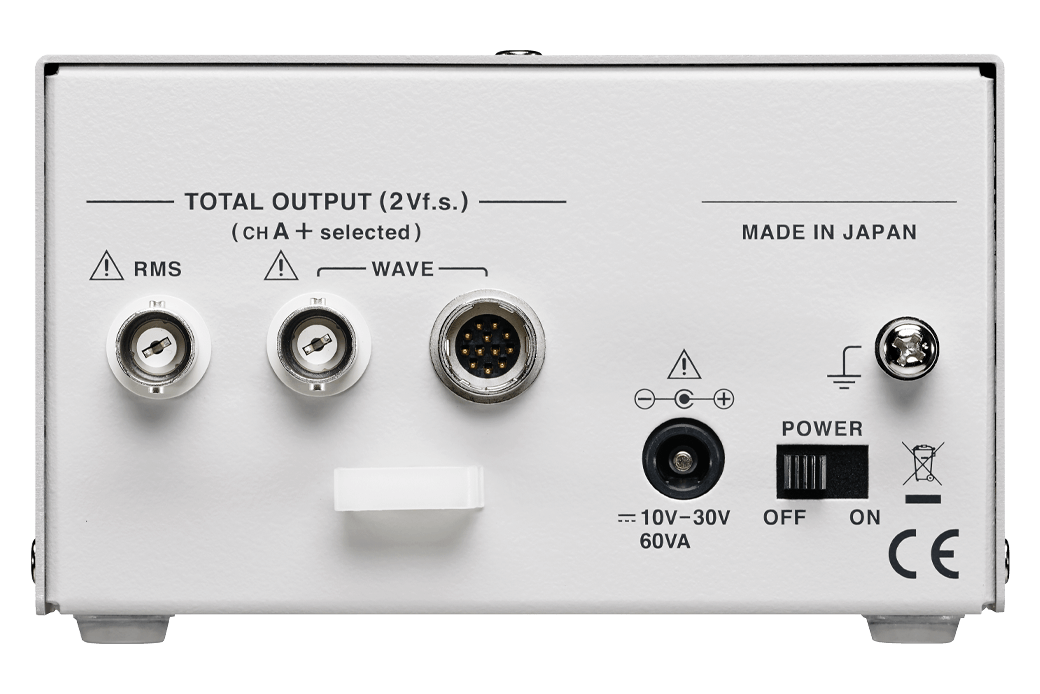

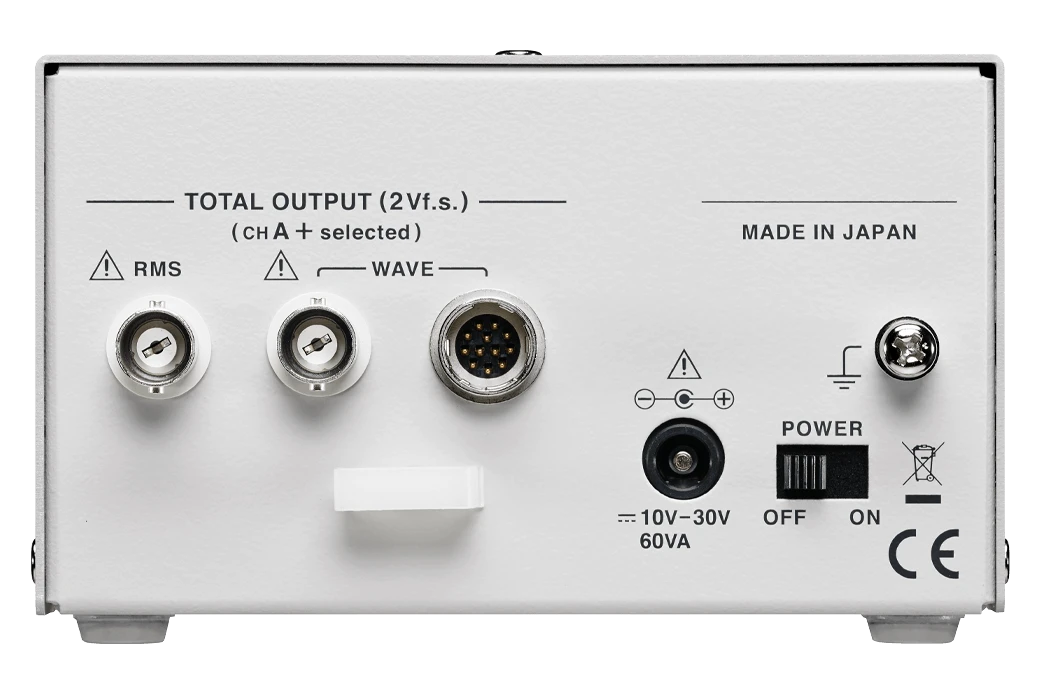

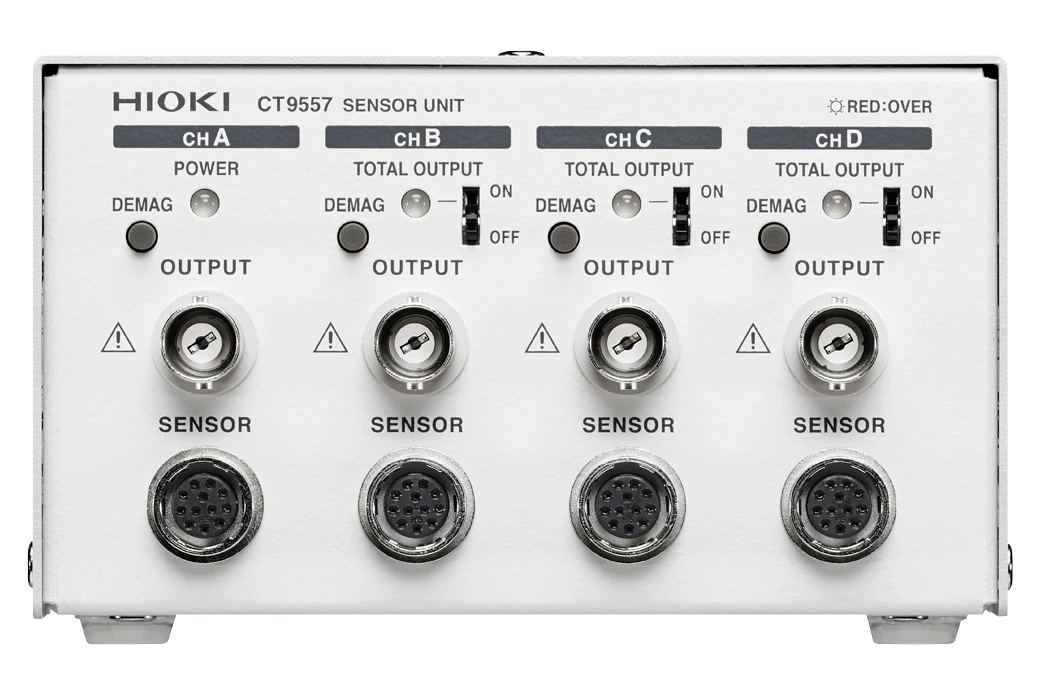

HIOKI SENSOR UNIT CT9557

Home › Hioki
Thumbnail
Shop : Tools Bangladesh
Product ID : 4328
Brand : Hioki
Availability : Out of Stock
Price BDT : Ask for Price
Reviews :
Share :
Request Quote

  • Customer Support

    +8801965656380

  • Cash One Delivery

    Pay after getting the product on hand

  • Warranty

    1 Year warranty by manufacturer

  • Secured Payment Method

    Your cart is always secure to shop

  • Easy Return Policy

    24 hours return without physical defect.

Hioki pass-through current sensors and clamp-on current probes are best-in-class current sensing devices for use with power meters, Memory Hi Corders, and high-performance oscilloscopes. The CT9557 is a 4-channel sensor unit and power adapter for any of the CT686x series, 9709, and CT684x series current sensors and probes, providing waveform and RMS output. HIOKI SENSOR UNIT CT9557 Price in Bangladesh reflects a premium value for precise current measurement. This unit ensures high accuracy, reliability, and compatibility with various Hioki measuring instruments. Ideal for professionals needing consistent performance in testing environments. Choose wisely with HIOKI SENSOR UNIT CT9557, Price in Bangladesh for superior electrical diagnostics.

Key Features

  • Power supply for high-precision current sensors with waveform output functionality
  • Output a single waveform from an aggregate of input waveforms

Basic specifications

Accuracy guaranteed: 1 year

Connectable current sensors Current sensors with a Hioki ME15W (male) output connector (CT686x-05, 9709-05, CT684x-05, etc.)
*The separately available Conversion Cable CT9900 is required in order to use a current sensor equipped with a PL23 (10-pin) terminal
Output Terminal BNC Terminal
Output voltage Waveform output/ Total waveform output: 2 V f.s.
Total RMS output: 2 V DC f.s.
Waveform output (4CH), total waveform output and total RMS output can be used simultaneously
Output resistance 50 Ω
Operating temperature range -10 °C to 50 °C (14 °F to 122 °F)
Power supply AC Adapter Z1002 (100 to 240 V AC, 50/60 Hz, maximum rated power when used with sensors: 155 VA)
External power supply (10 to 30 V DC; maximum rated power: 60 VA)
Dimensions and mass 116 mm (4.57 in)W × 67 mm (2.64 in)H × 132 mm (5.20 in)D (excluding protruding parts),420 g (14.8 oz)
Included accessories AC Adapter Z1002 ×1, Power cord ×1, Instruction manual ×1
Included accessories AC Adapter Z1002 ×1, Power cord ×1, Instruction manual ×1
Included accessories AC Adapter Z1002 ×1, Power cord ×1, Instruction manual ×1

Hioki pass-through current sensors and clamp-on current probes are best-in-class current sensing devices for use with power meters, Memory Hi Corders, and high-performance oscilloscopes. The CT9557 is a 4-channel sensor unit and power adapter for any of the CT686x series, 9709, and CT684x series current sensors and probes, providing waveform and RMS output. HIOKI SENSOR UNIT CT9557 Price in Bangladesh reflects a premium value for precise current measurement. This unit ensures high accuracy, reliability, and compatibility with various Hioki measuring instruments. Ideal for professionals needing consistent performance in testing environments. Choose wisely with HIOKI SENSOR UNIT CT9557, Price in Bangladesh for superior electrical diagnostics.

Key Features

  • Power supply for high-precision current sensors with waveform output functionality
  • Output a single waveform from an aggregate of input waveforms

Basic specifications

Accuracy guaranteed: 1 year

Connectable current sensors Current sensors with a Hioki ME15W (male) output connector (CT686x-05, 9709-05, CT684x-05, etc.)
*The separately available Conversion Cable CT9900 is required in order to use a current sensor equipped with a PL23 (10-pin) terminal
Output Terminal BNC Terminal
Output voltage Waveform output/ Total waveform output: 2 V f.s.
Total RMS output: 2 V DC f.s.
Waveform output (4CH), total waveform output and total RMS output can be used simultaneously
Output resistance 50 Ω
Operating temperature range -10 °C to 50 °C (14 °F to 122 °F)
Power supply AC Adapter Z1002 (100 to 240 V AC, 50/60 Hz, maximum rated power when used with sensors: 155 VA)
External power supply (10 to 30 V DC; maximum rated power: 60 VA)
Dimensions and mass 116 mm (4.57 in)W × 67 mm (2.64 in)H × 132 mm (5.20 in)D (excluding protruding parts),420 g (14.8 oz)
Included accessories AC Adapter Z1002 ×1, Power cord ×1, Instruction manual ×1

Included accessories AC Adapter Z1002 ×1, Power cord ×1, Instruction manual ×1

Included accessories AC Adapter Z1002 ×1, Power cord ×1, Instruction manual ×1
