HIOKI LCR METER IM3523A

Home › Hioki
Thumbnail
Shop : Tools Bangladesh
Product ID : 4176
Brand : Hioki
Availability : Out of Stock
Price BDT : Ask for Price
Reviews :
Share :
Request Quote

  • Customer Support

    +8801965656380

  • Cash One Delivery

    Pay after getting the product on hand

  • Warranty

    1 Year warranty by manufacturer

  • Secured Payment Method

    Your cart is always secure to shop

  • Easy Return Policy

    24 hours return without physical defect.

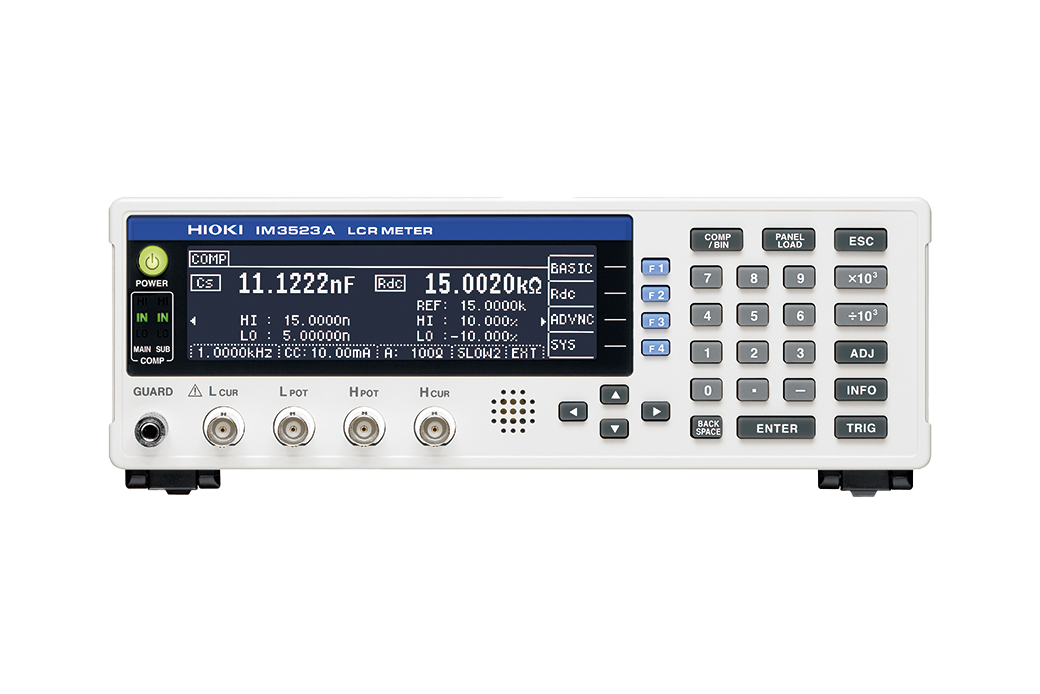

Hioki LCR Meters and Impedance Analyzers range from 1 mHz to 3 GHz devices to suit a wide range of applications in the testing of electronic components. The IM3523A is designed for basic measurement on production lines so that it can be offered at a low price point, and delivers improved measurement reliability thanks to its contact check function. HIOKI LCR METER IM3523A Price in Bangladesh is affordable for precise component testing—ideal for R&D and production with high-speed, accurate measurements.

Key Features

  • ±0.05% accuracy with wide measurement range (DC, 40Hz to 200kHz, 5mV to 5V, 10uA to 50mA)
  • Rapid 2 msec test time
  • Built-in comparator and BIN functions
  • Non-stop testing over mixed measurement conditions such as C-D(120 Hz) and ESR(100 kHz) at 10 times the speed of previous models (compared with Model 3532-50)

Basic specifications

Accuracy guaranteed: 1 year

Measurement modes LCR (Measurement with single condition), Continuous testing (Continuous measurement under saved conditions)
Measurement parameters Z, Y, θ, X, G, B, Q, Rdc (DC resistance), Rs (ESR), Rp, Ls, Lp, Cs, Cp, D (tanδ)
Measurement range 100 mΩ to 100 MΩ, 10 ranges (All parameters defined in terms of Z.)
Displayable range Z, Y, Rs, Rp, Rdc, X, G, B, Ls, Lp, Cs, Cp :
± (0.00000 [unit] to 9.99999G [unit]) Real value display for Z and Y only
θ: ± (0.000° to 180.000°), D: ± (0.00000 to 9.99999)
Q: ± (0.00 to 99999.9), Δ%: ± (0.0000% to 999.999%)
Basic accuracy Z : ±0.05% rdg. θ: ±0.03°
Measurement frequency 40 Hz to 200 kHz (5 digits setting resolution)
Measurement signal level V mode, CV mode: 5 mV to 5 Vrms, 1 mVrms steps
CC mode: 10 μA to 50 mArms, 10 μArms steps
Output impedance 100 Ω
Display Monochrome LCD
Measurement time 2 ms (1 kHz, FAST, representative value)
Functions Comparator, BIN measurement (classify function), Panel loading/saving, Memory function

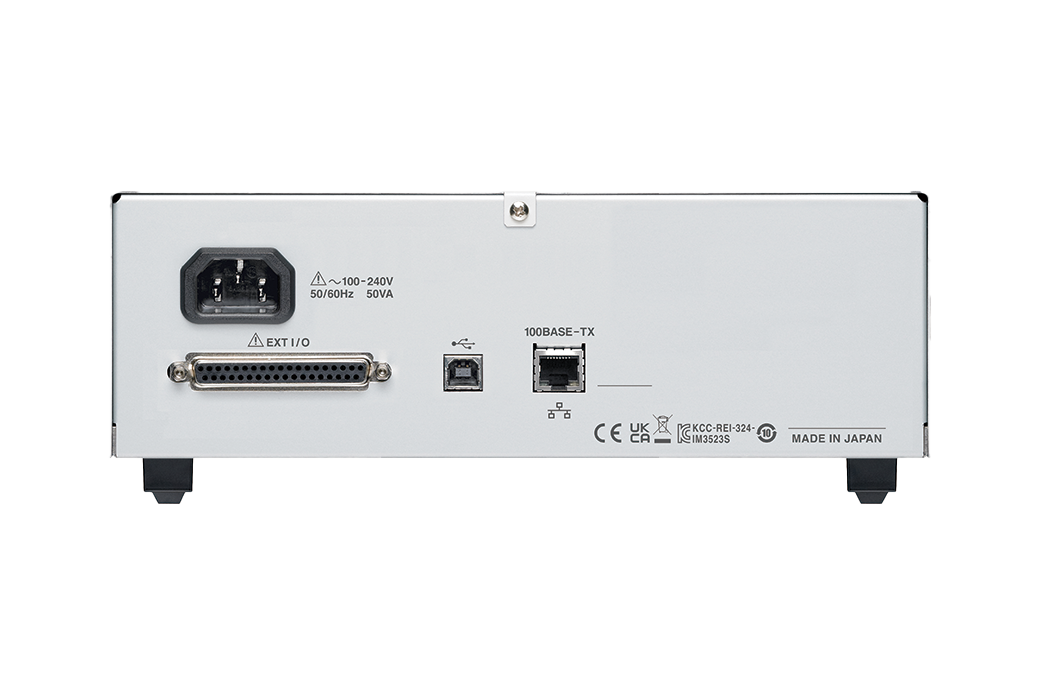

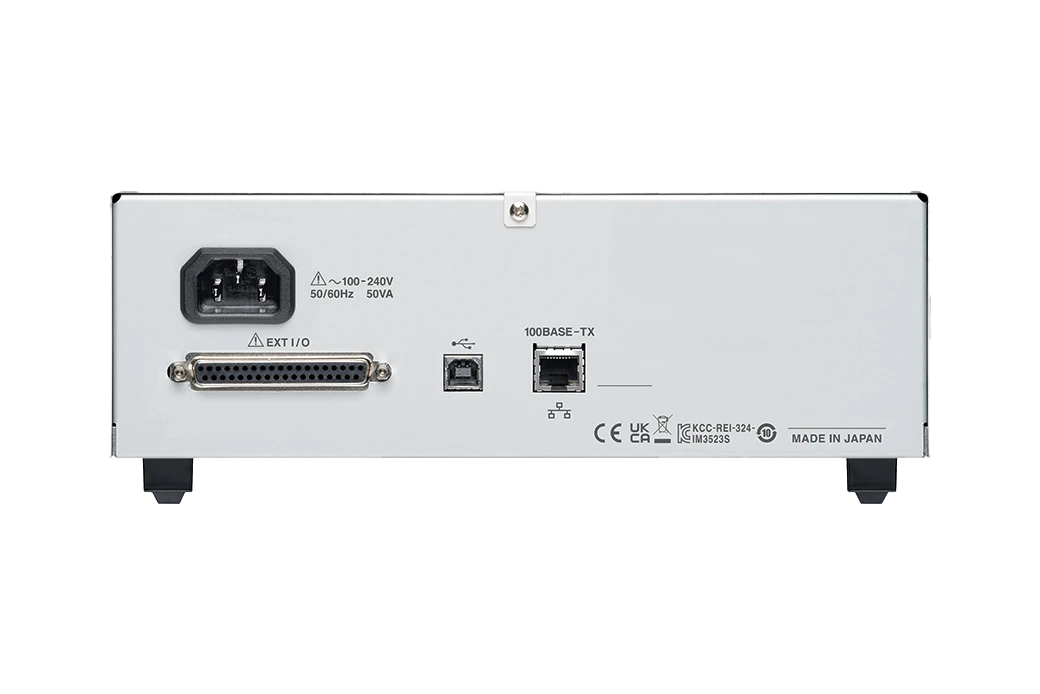

Interfaces EXT I/O (handler), USB communication (full-speed), LAN
Power supply 100 to 240 V AC, 50/60 Hz, 50 VA max
Dimensions and mass 260 mm (10.24 in) W × 88 mm (3.46 in) H × 203 mm (7.99 in) D, 2.1 kg (84.7 oz)
Included accessories Power cord × 1 , CD-R (Includes Instruction manual, PC commands and Sample software) × 1, Startup guide× 1, Operating precautions× 1

Included accessories

Power cord × 1 , CD-R (Includes Instruction manual, PC commands and Sample software) × 1, Startup guide× 1, Operating precautions× 1

Included accessories

Power cord × 1 , CD-R (Includes Instruction manual, PC commands and Sample software) × 1, Startup guide× 1, Operating precautions× 1

Hioki LCR Meters and Impedance Analyzers range from 1 mHz to 3 GHz devices to suit a wide range of applications in the testing of electronic components. The IM3523A is designed for basic measurement on production lines so that it can be offered at a low price point, and delivers improved measurement reliability thanks to its contact check function. HIOKI LCR METER IM3523A Price in Bangladesh is affordable for precise component testing—ideal for R&D and production with high-speed, accurate measurements.

Key Features

  • ±0.05% accuracy with wide measurement range (DC, 40Hz to 200kHz, 5mV to 5V, 10uA to 50mA)
  • Rapid 2 msec test time
  • Built-in comparator and BIN functions
  • Non-stop testing over mixed measurement conditions such as C-D(120 Hz) and ESR(100 kHz) at 10 times the speed of previous models (compared with Model 3532-50)

Basic specifications

Accuracy guaranteed: 1 year

Measurement modes LCR (Measurement with single condition), Continuous testing (Continuous measurement under saved conditions)
Measurement parameters Z, Y, θ, X, G, B, Q, Rdc (DC resistance), Rs (ESR), Rp, Ls, Lp, Cs, Cp, D (tanδ)
Measurement range 100 mΩ to 100 MΩ, 10 ranges (All parameters defined in terms of Z.)
Displayable range Z, Y, Rs, Rp, Rdc, X, G, B, Ls, Lp, Cs, Cp :
± (0.00000 [unit] to 9.99999G [unit]) Real value display for Z and Y only
θ: ± (0.000° to 180.000°), D: ± (0.00000 to 9.99999)
Q: ± (0.00 to 99999.9), Δ%: ± (0.0000% to 999.999%)
Basic accuracy Z : ±0.05% rdg. θ: ±0.03°
Measurement frequency 40 Hz to 200 kHz (5 digits setting resolution)
Measurement signal level V mode, CV mode: 5 mV to 5 Vrms, 1 mVrms steps
CC mode: 10 μA to 50 mArms, 10 μArms steps
Output impedance 100 Ω
Display Monochrome LCD
Measurement time 2 ms (1 kHz, FAST, representative value)
Functions Comparator, BIN measurement (classify function), Panel loading/saving, Memory function
Interfaces EXT I/O (handler), USB communication (full-speed), LAN
Power supply 100 to 240 V AC, 50/60 Hz, 50 VA max
Dimensions and mass 260 mm (10.24 in) W × 88 mm (3.46 in) H × 203 mm (7.99 in) D, 2.1 kg (84.7 oz)
Included accessories Power cord × 1 , CD-R (Includes Instruction manual, PC commands and Sample software) × 1, Startup guide× 1, Operating precautions× 1

Included accessories

Power cord × 1 , CD-R (Includes Instruction manual, PC commands and Sample software) × 1, Startup guide× 1, Operating precautions× 1

Included accessories

Power cord × 1 , CD-R (Includes Instruction manual, PC commands and Sample software) × 1, Startup guide× 1, Operating precautions× 1
