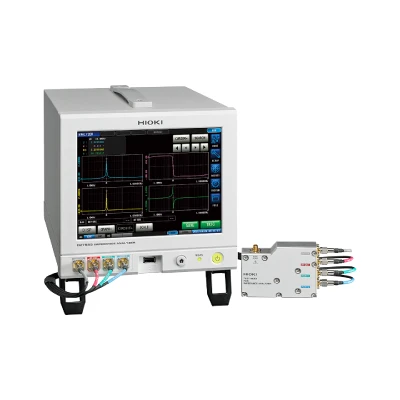

Hioki LCR Meters and Impedance Analyzers range from 1 mHz to 3 GHz devices to suit a wide range of applications in the testing of electronic components. The IM7585 Impedance Analyzer offers a top measurement time of 0.5 ms over a 1 MHz to 1.3 GHz frequency range and superior stability, making it ideal for R&D as well as high volume production of ferrite chip beads and chip inductors.

Discover high-speed and high-precision measurement with the HIOKI Impedance Analyzer IM7585. Designed for advanced component analysis, the HIOKI IMPEDANCE ANALYZER IM7585 Price in Bangladesh ensures great value for its performance. Ideal for R&D and production lines, it delivers accuracy and reliability in every test.

Key Features

  • 1 MHz to 1.3 GHz testing source frequency
  • Fastest test speed of 0.5 msec (Analog measurement time)
  • 0.07% measured value variability (when measuring at 1GHz)
  • ±0.65% rdg. basic accuracy
  • RF I-V method
  • Half-rack size body and palm-sized test head
  • Comprehensive contact check (via DCR testing, Hi-Z reject or waveform judgment)
  • Make frequency sweeps, level sweeps and time interval measurements in Analyzer Mode

Basic specifications

Accuracy guaranteed: 1 year

Measurement modes LCR mode, Analyzer mode (sweeps with measurement frequency and measurement level), Continuous measurement mode
Measurement parameters Z, Y, θ, Rs (ESR), Rp, X, G, B, Cs, Cp, Ls, Lp, D (tanδ), Q
Measurable range 100 mΩ to 5 kΩ
Display range Z: 0.00 m to 9.99999 GΩ / Rs, Rp, X: ± (0.00 m to 9.99999 GΩ)
Ls, Lp: ± (0.00000 n to 9.99999 GH) / Q: ± (0.00 to 9999.99)
θ: ± (0.000° to 180.000°), Cs, Cp: ± (0.00000 p to 9.99999 GF)
D: ± (0.00000 to 9.99999), Y: (0.000 n to 9.99999 GS)
G, B: ± (0.000 n to 9.99999 GS), Δ%: ± (0.000 % to 999.999 %)
Basic accuracy Z: ±0.65 % rdg. θ: ±0.38°
Measurement frequency 1 MHz to 1.3 GHz (100 kHz setting resolution)
Measurement signal level Power: -40.0 dBm to +1.0 dBm
Voltage: 4 mV to 502 mVrms
Current: 0.09 mA to 10.04 mArms
Output impedance 50 Ω (at 10 MHz)
Display 8.4-inch color TFT with touch screen
Measurement speeds FAST: 0.5 ms (Analog measurement time, typical value)
Functions Contact check, Comparator, BIN measurement (classification), Panel loading/saving, Memory function, Equivalent circuit analysis, Correlation compensation
Interfaces EXT I/O (Handler), USB communication, USB memory, LAN, RS-232C (optional), GP-IB (optional)
Power supply 100 to 240 V AC, 50/60 Hz, 70 VA max.
Dimensions and mass Main unit: 215 mm (8.46 in) W × 200 mm (7.87 in) H × 348 mm (13.70 in) D, 8.0 kg (282.2 oz)
Test head: 90 mm (3.54 in) W × 64 mm (2.52 in) H × 24 mm (0.94 in) D, 300 g (10.58 oz)
Included accessories Test head ×1, Connection cable ×1, Instruction manual ×1, LCR application disc (Communications user manual) ×1, Power cord ×1

Included accessories

Test head ×1, Connection cable ×1, Instruction manual ×1, LCR application disc (Communications user manual) ×1, Power cord ×1

Included accessories

Test head ×1, Connection cable ×1, Instruction manual ×1, LCR application disc (Communications user manual) ×1, Power cord ×1

Hioki LCR Meters and Impedance Analyzers range from 1 mHz to 3 GHz devices to suit a wide range of applications in the testing of electronic components. The IM7585 Impedance Analyzer offers a top measurement time of 0.5 ms over a 1 MHz to 1.3 GHz frequency range and superior stability, making it ideal for R&D as well as high volume production of ferrite chip beads and chip inductors.

Discover high-speed and high-precision measurement with the HIOKI Impedance Analyzer IM7585. Designed for advanced component analysis, the HIOKI IMPEDANCE ANALYZER IM7585 Price in Bangladesh ensures great value for its performance. Ideal for R&D and production lines, it delivers accuracy and reliability in every test.

Key Features

  • 1 MHz to 1.3 GHz testing source frequency
  • Fastest test speed of 0.5 msec (Analog measurement time)
  • 0.07% measured value variability (when measuring at 1GHz)
  • ±0.65% rdg. basic accuracy
  • RF I-V method
  • Half-rack size body and palm-sized test head
  • Comprehensive contact check (via DCR testing, Hi-Z reject or waveform judgment)
  • Make frequency sweeps, level sweeps and time interval measurements in Analyzer Mode

Basic specifications

Accuracy guaranteed: 1 year

Measurement modes LCR mode, Analyzer mode (sweeps with measurement frequency and measurement level), Continuous measurement mode
Measurement parameters Z, Y, θ, Rs (ESR), Rp, X, G, B, Cs, Cp, Ls, Lp, D (tanδ), Q
Measurable range 100 mΩ to 5 kΩ
Display range Z: 0.00 m to 9.99999 GΩ / Rs, Rp, X: ± (0.00 m to 9.99999 GΩ)
Ls, Lp: ± (0.00000 n to 9.99999 GH) / Q: ± (0.00 to 9999.99)
θ: ± (0.000° to 180.000°), Cs, Cp: ± (0.00000 p to 9.99999 GF)
D: ± (0.00000 to 9.99999), Y: (0.000 n to 9.99999 GS)
G, B: ± (0.000 n to 9.99999 GS), Δ%: ± (0.000 % to 999.999 %)
Basic accuracy Z: ±0.65 % rdg. θ: ±0.38°
Measurement frequency 1 MHz to 1.3 GHz (100 kHz setting resolution)
Measurement signal level Power: -40.0 dBm to +1.0 dBm
Voltage: 4 mV to 502 mVrms
Current: 0.09 mA to 10.04 mArms
Output impedance 50 Ω (at 10 MHz)
Display 8.4-inch color TFT with touch screen
Measurement speeds FAST: 0.5 ms (Analog measurement time, typical value)
Functions Contact check, Comparator, BIN measurement (classification), Panel loading/saving, Memory function, Equivalent circuit analysis, Correlation compensation
Interfaces EXT I/O (Handler), USB communication, USB memory, LAN, RS-232C (optional), GP-IB (optional)
Power supply 100 to 240 V AC, 50/60 Hz, 70 VA max.
Dimensions and mass Main unit: 215 mm (8.46 in) W × 200 mm (7.87 in) H × 348 mm (13.70 in) D, 8.0 kg (282.2 oz)
Test head: 90 mm (3.54 in) W × 64 mm (2.52 in) H × 24 mm (0.94 in) D, 300 g (10.58 oz)
Included accessories Test head ×1, Connection cable ×1, Instruction manual ×1, LCR application disc (Communications user manual) ×1, Power cord ×1

Included accessories

Test head ×1, Connection cable ×1, Instruction manual ×1, LCR application disc (Communications user manual) ×1, Power cord ×1

Included accessories

Test head ×1, Connection cable ×1, Instruction manual ×1, LCR application disc (Communications user manual) ×1, Power cord ×1
