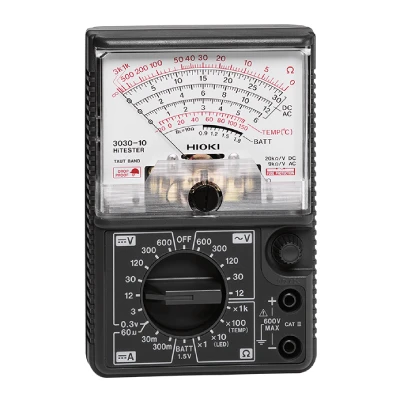

HIOKI HiTESTER ANALOG MULTIMETER 3030-10

Home › Hioki
Thumbnail
Shop : Tools Bangladesh
Product ID : 4377
Brand : Hioki
Availability : Out of Stock
Price BDT : Ask for Price
Reviews :
Share :
Request Quote

  • Customer Support

    +8801965656380

  • Cash One Delivery

    Pay after getting the product on hand

  • Warranty

    1 Year warranty by manufacturer

  • Secured Payment Method

    Your cart is always secure to shop

  • Easy Return Policy

    24 hours return without physical defect.

The Hioki 3030-10 is an analog multimeter that measures voltage, current, and resistance, with robust construction that withstands a 1-meter drop onto a concrete floor. Safety CAT III 600 V. The HIOKI HiTESTER ANALOG MULTIMETER 3030-10 Price in Bangladesh offers precise and reliable measurements for professionals and hobbyists alike. Known for its durability and accuracy, this analog multimeter is perfect for various electrical testing needs. Available at competitive prices in Bangladesh, the 3030-10 model ensures top performance and user-friendly operation. Get the best deal on the HIOKI HiTESTER ANALOG MULTIMETER 3030-10 Price in Bangladesh today!

Key Features

  • Drop proof design withstands drop onto a concrete floor from a height of 1 meter
  • LED check, Battery check support

Basic specifications

Accuracy guaranteed: 1 year

DC voltage range 0.3 V (16.7 kΩ/V), 3/12/30/120/300/600 V (20 kΩ/V)
Accuracy: ±2.5 % f.s. Max. rated voltage: 600 V
AC voltage range 12 V (9 kΩ/V) Accuracy: ±4 % f.s.
30/120/300/600 V (9 kΩ/V) Accuracy: ±2.5 % f.s.
Average rectifier effective value, Max. rated voltage: 600 V
DC current range 60 µA/30 m/300 mA (300 mV internal voltage drop)
Accuracy: ±3 % f.s.
Resistance range 0 to 3 kΩ (center scale 30 Ω), R × 1, R × 10, R × 100, R × 1 k
Accuracy: ±3 % of scale length
Battery check 0.9 to 1.8 V, load resistance 10 Ω, Accuracy: ±6 % f.s.
Temperature scale Note: The 3030-10 includes a temperature measurement scale, but because the optional Thermister Temperature Probe 9021-01 has been discontinued, the scale is not available for new customers.
Power supply For resistance measurement range, R6P (AA) ×2 batteries
Dimensions and mass 95 mm (3.74 in) W × 141 mm (5.55 in) H × 39 mm (1.54 in) D, 280 g (9.9 oz)
Included accessories Test Lead L9207-30 ×1, Spare fuse ×1, R6P (AA) manganese batteries ×2, Instruction manual ×1, Carrying case 9390 ×1
Included accessories Test Lead L9207-30 ×1, Spare fuse ×1, R6P (AA) manganese batteries ×2, Instruction manual ×1, Carrying case 9390 ×1
Included accessories Test Lead L9207-30 ×1, Spare fuse ×1, R6P (AA) manganese batteries ×2, Instruction manual ×1, Carrying case 9390 ×1

The Hioki 3030-10 is an analog multimeter that measures voltage, current, and resistance, with robust construction that withstands a 1-meter drop onto a concrete floor. Safety CAT III 600 V. The HIOKI HiTESTER ANALOG MULTIMETER 3030-10 Price in Bangladesh offers precise and reliable measurements for professionals and hobbyists alike. Known for its durability and accuracy, this analog multimeter is perfect for various electrical testing needs. Available at competitive prices in Bangladesh, the 3030-10 model ensures top performance and user-friendly operation. Get the best deal on the HIOKI HiTESTER ANALOG MULTIMETER 3030-10 Price in Bangladesh today!

Key Features

  • Drop proof design withstands drop onto a concrete floor from a height of 1 meter
  • LED check, Battery check support

Basic specifications

Accuracy guaranteed: 1 year

DC voltage range 0.3 V (16.7 kΩ/V), 3/12/30/120/300/600 V (20 kΩ/V)
Accuracy: ±2.5 % f.s. Max. rated voltage: 600 V
AC voltage range 12 V (9 kΩ/V) Accuracy: ±4 % f.s.
30/120/300/600 V (9 kΩ/V) Accuracy: ±2.5 % f.s.
Average rectifier effective value, Max. rated voltage: 600 V
DC current range 60 µA/30 m/300 mA (300 mV internal voltage drop)
Accuracy: ±3 % f.s.
Resistance range 0 to 3 kΩ (center scale 30 Ω), R × 1, R × 10, R × 100, R × 1 k
Accuracy: ±3 % of scale length
Battery check 0.9 to 1.8 V, load resistance 10 Ω, Accuracy: ±6 % f.s.
Temperature scale Note: The 3030-10 includes a temperature measurement scale, but because the optional Thermister Temperature Probe 9021-01 has been discontinued, the scale is not available for new customers.
Power supply For resistance measurement range, R6P (AA) ×2 batteries
Dimensions and mass 95 mm (3.74 in) W × 141 mm (5.55 in) H × 39 mm (1.54 in) D, 280 g (9.9 oz)
Included accessories Test Lead L9207-30 ×1, Spare fuse ×1, R6P (AA) manganese batteries ×2, Instruction manual ×1, Carrying case 9390 ×1

Included accessories Test Lead L9207-30 ×1, Spare fuse ×1, R6P (AA) manganese batteries ×2, Instruction manual ×1, Carrying case 9390 ×1

Included accessories Test Lead L9207-30 ×1, Spare fuse ×1, R6P (AA) manganese batteries ×2, Instruction manual ×1, Carrying case 9390 ×1
