Name: HIOKI FA1221 SHORT-OPEN TESTER
Brand: Hioki
Availability: OutOfStock

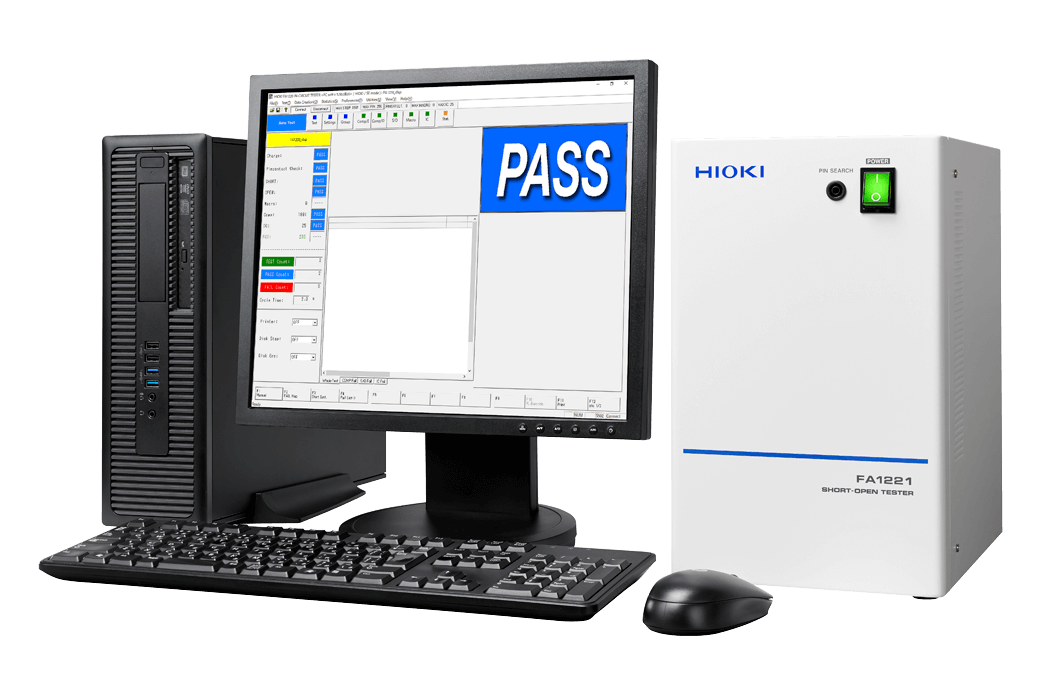

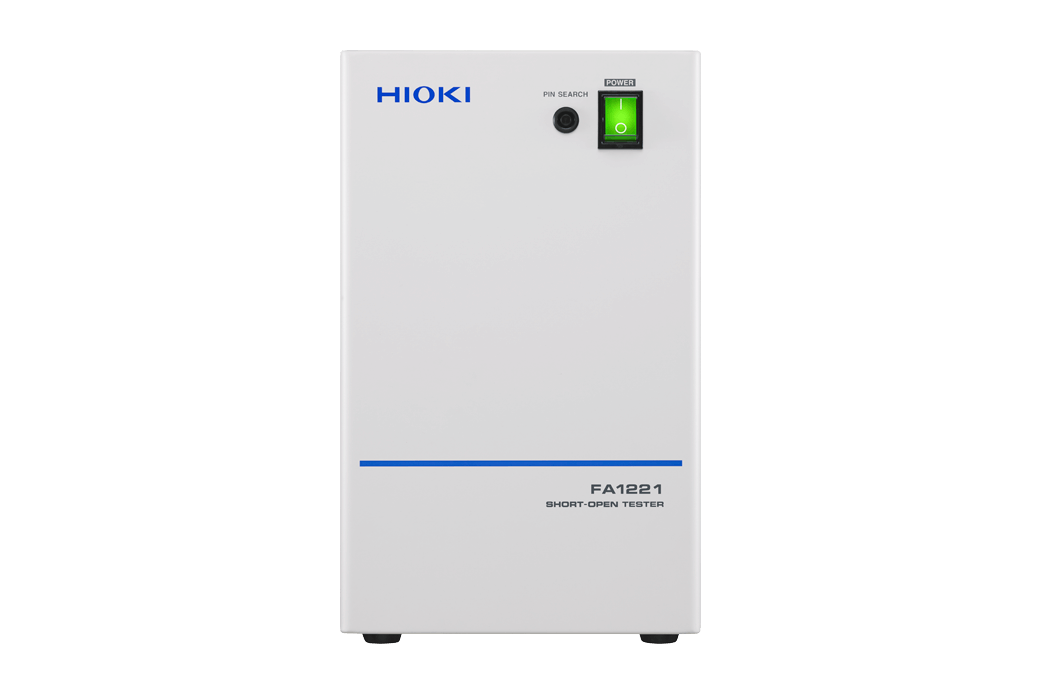

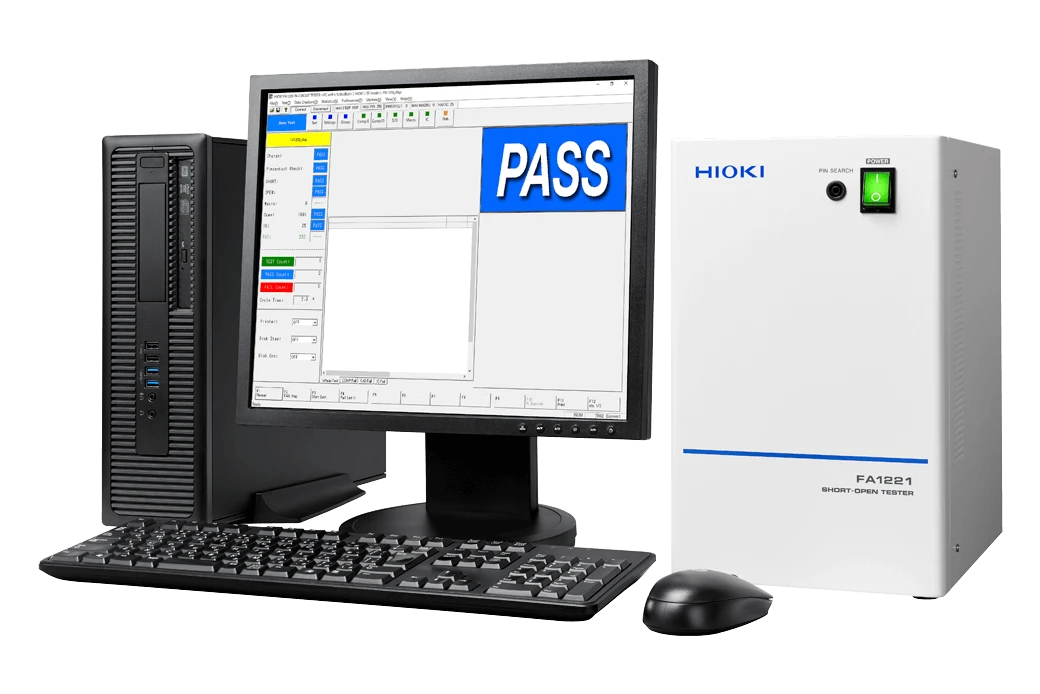

The FA1221 is a multichannel short/open 4-wire test equipment for populated board testing. Its small form factor lets you embed the unit into existing systems, which helps reduce installation time and costs.

Key Features

Functionality has been consolidated in a single, desktop tower that can be easily embedded in existing equipment
Specifically designed for short/open testing
Four-terminal low-resistance measurement for stable measurement of low resistance

Key Features

Functionality has been consolidated in a single, desktop tower that can be easily embedded in existing equipment
Specifically designed for short/open testing
Four-terminal low-resistance measurement for stable measurement of low resistance

FA1221 Specifications Overview

Number of test points	128 pins (during 4-terminal measurement, up to 32 sets)
Number of test steps	Round-robin short/open : 128 pins Component data : Max. 10000 steps Charge data : 40 sets Pin contact data : 128 pins Group data : 255 groups
Test parameters and measurement ranges	Round-robin short/open :	4 Ω to 400 kΩ (Default: 40 Ω)
	Component tests :	Possible
Component tests	Resistance :	400 μΩ to 40 MΩ
	Open :	4 Ω to 4 MΩ
	Short :	400 mΩ to 40 Ω
Test signals	DC constant voltage :	100 m / 400 mV : 2 ranges
	DC constant current :	2 m / 20 mA, 2 ranges
Measurement unit	DC ammeter :	Ammeter 80 μ / 800 μ / 4 m / 40 m Arms, 4 ranges
	DC ammeter :	250 n / 2.5 μ / 25 μ / 250 μ / 2.5 m / 25 m A f.s., 6 ranges
Scanner unit	Analog software :	128 channels/board (2-/4-terminal switchable, no guarding)
Judgment range	-99.9% to +999.9% or absolute value
Measurement times	Round-robin short/open : From approx. 0.8 ms per pin Component : From approx. 0.9 ms per step
Statistics functionality	Defect rate tabulation and graph display test, group, and overall; component test histogram; operating time cumulative and subtotal displays
External I/O (*2)	Using I/O Board E4220 (*1) : 60 inputs, 56 outputs
Power supply	100 to 240 V AC (±10%), single-phase, 50 Hz / 60 Hz, max. 130 W
Dimensions and mass	200 mm (7.87 in) W × 323 mm (12.72 in) H × 298 mm (11.73 in) D, 10 kg (352.7 oz)
Included accessories	Instruction manual ×1, Test leads ×1, Power cord ×1, Metal fittings ×1, Installation CD ×1

Included accessories	Instruction manual ×1, Test leads ×1, Power cord ×1, Metal fittings ×1, Installation CD ×1

Included accessories	Instruction manual ×1, Test leads ×1, Power cord ×1, Metal fittings ×1, Installation CD ×1

Key Features

Functionality has been consolidated in a single, desktop tower that can be easily embedded in existing equipment
Specifically designed for short/open testing
Four-terminal low-resistance measurement for stable measurement of low resistance

Key Features

Functionality has been consolidated in a single, desktop tower that can be easily embedded in existing equipment
Specifically designed for short/open testing
Four-terminal low-resistance measurement for stable measurement of low resistance

FA1221 Specifications Overview

Number of test points	128 pins (during 4-terminal measurement, up to 32 sets)
Number of test steps	Round-robin short/open : 128 pins Component data : Max. 10000 steps Charge data : 40 sets Pin contact data : 128 pins Group data : 255 groups
Test parameters and measurement ranges	Round-robin short/open :	4 Ω to 400 kΩ (Default: 40 Ω)
	Component tests :	Possible
Component tests	Resistance :	400 μΩ to 40 MΩ
	Open :	4 Ω to 4 MΩ
	Short :	400 mΩ to 40 Ω
Test signals	DC constant voltage :	100 m / 400 mV : 2 ranges
	DC constant current :	2 m / 20 mA, 2 ranges
Measurement unit	DC ammeter :	Ammeter 80 μ / 800 μ / 4 m / 40 m Arms, 4 ranges
	DC ammeter :	250 n / 2.5 μ / 25 μ / 250 μ / 2.5 m / 25 m A f.s., 6 ranges
Scanner unit	Analog software :	128 channels/board (2-/4-terminal switchable, no guarding)
Judgment range	-99.9% to +999.9% or absolute value
Measurement times	Round-robin short/open : From approx. 0.8 ms per pin Component : From approx. 0.9 ms per step
Statistics functionality	Defect rate tabulation and graph display test, group, and overall; component test histogram; operating time cumulative and subtotal displays
External I/O (*2)	Using I/O Board E4220 (*1) : 60 inputs, 56 outputs
Power supply	100 to 240 V AC (±10%), single-phase, 50 Hz / 60 Hz, max. 130 W
Dimensions and mass	200 mm (7.87 in) W × 323 mm (12.72 in) H × 298 mm (11.73 in) D, 10 kg (352.7 oz)
Included accessories	Instruction manual ×1, Test leads ×1, Power cord ×1, Metal fittings ×1, Installation CD ×1

Included accessories	Instruction manual ×1, Test leads ×1, Power cord ×1, Metal fittings ×1, Installation CD ×1

Included accessories	Instruction manual ×1, Test leads ×1, Power cord ×1, Metal fittings ×1, Installation CD ×1
