HIOKI FA1220 IN-CIRCUIT TESTER

Home › Hioki
Thumbnail
Shop : Tools Bangladesh
Product ID : 4508
Brand : Hioki
Availability : Out of Stock
Price BDT : Ask for Price
Reviews :
Share :
Request Quote

  • Customer Support

    +8801965656380

  • Cash One Delivery

    Pay after getting the product on hand

  • Warranty

    1 Year warranty by manufacturer

  • Secured Payment Method

    Your cart is always secure to shop

  • Easy Return Policy

    24 hours return without physical defect.

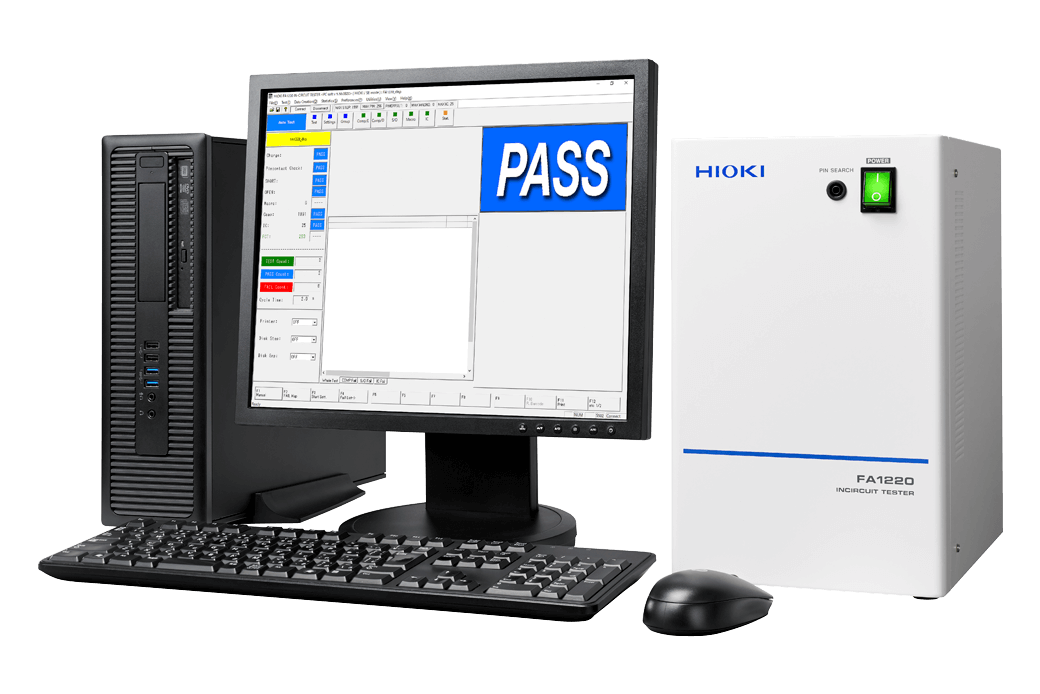

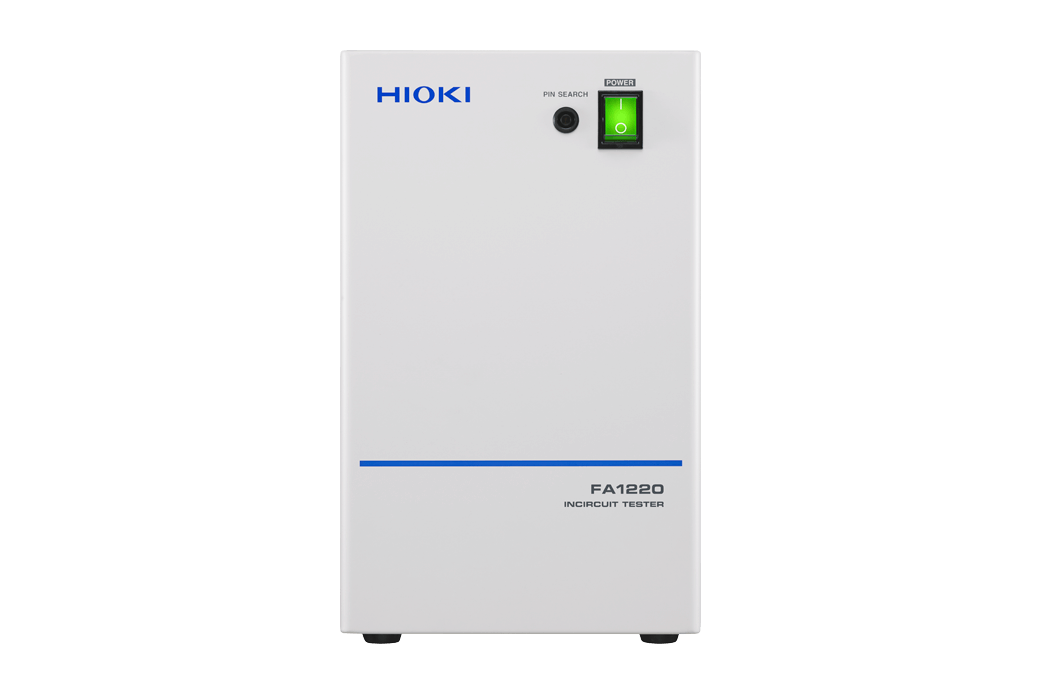

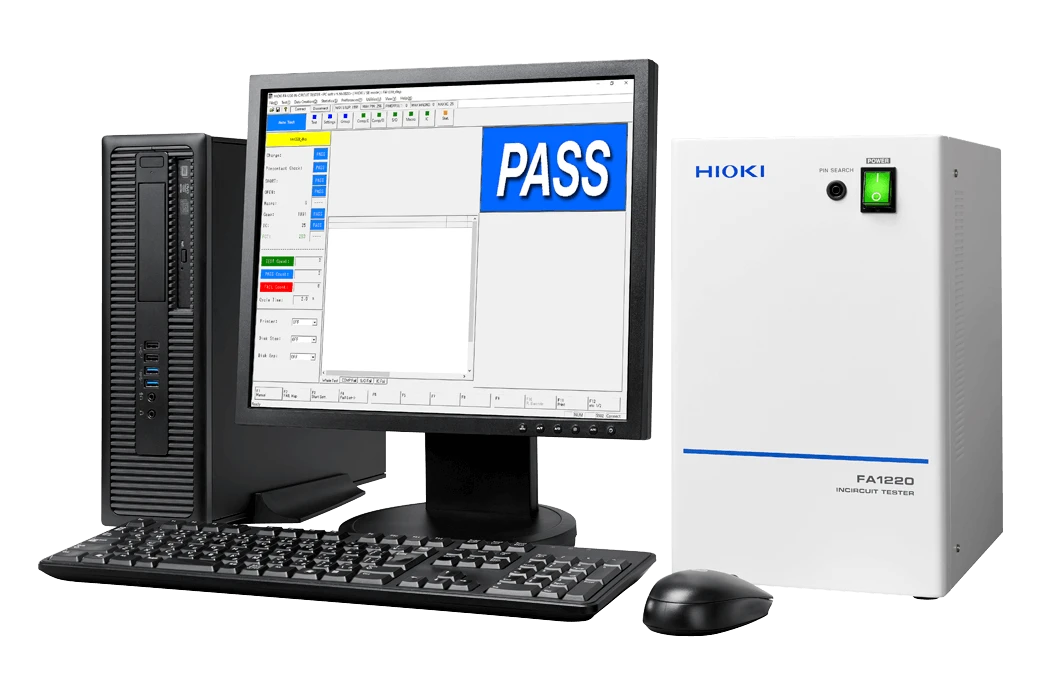

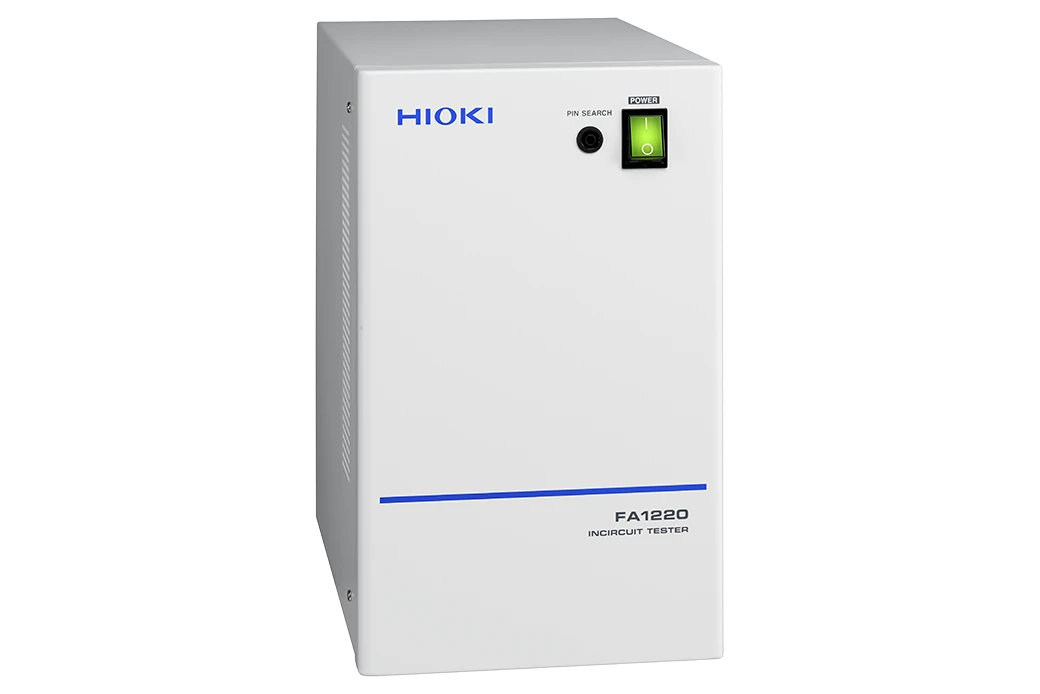

Hioki PCB and substrate inspection equipment leverages our core competency in high precision component testing. The FA1220 an embeddable PCB measuring component that provides extensive function testing capabilities to complement existing automatic testing equipment.

Key Features

  • Functionality has been consolidated in a single, desktop tower that can be easily embedded in existing equipment
  • Extensive function testing
  • Electrolytic capacitor and IC reverse insertion detection
  • Macro-testing function to increase test efficiency
  • Four-terminal low-resistance measurement for stable measurement of low resistance

Key Features

  • Functionality has been consolidated in a single, desktop tower that can be easily embedded in existing equipment
  • Extensive function testing
  • Electrolytic capacitor and IC reverse insertion detection
  • Macro-testing function to increase test efficiency
  • Four-terminal low-resistance measurement for stable measurement of low resistance

FA1220 Specifications Overview

Number of test points Max. 1024 pins (Can be added in blocks of 128 pins.)
Standard : 0 pins (Scanner boards are sold as options.)
Number of test steps Round-robin short/open data : 1024 pins
Component data : Max. 10000 steps
Macro data : 1024 pins/1024 steps (regardless of number of pins)
IC data : 500 steps (max. 1024 pins/step)
Charge data : 40 sets
Pin contact data : 1024 pins
Group data : 255 groups
Test parameters and measurement ranges Round-robin short/open : 4 Ω to 400 kΩ (Default: 40 Ω)
　 Macro testing (impedance) : 1 Ω to 10 MΩ
　 Component tests : Possible
　 IC reverse insertion detection : Possible
Measurement unit DC voltmeter : 800 μV f.s. to 25 V f.s., 8 ranges
　 DC ammeter : 100 nA f.s. to 250 mA f.s., 9 ranges
　 AC ammeter : 10 μArms f.s. to 10 mA rms f.s., 4 ranges
　 Macro test : Ammeter 10 μ / 100 μ / 1 m / 10 m Arms, 4 ranges
Scanner unit (*2) Software used : Analog switch (Scanner board E4201, E4202)
　 Number of channels : 128 channels/board (2-/4-terminal switchable)
　 Input protection : ±15 V / ±0.5 V (Batch-configurable, Scanner Board E4201 / E4202 only)
External I/O (*2) Using I/O Board E4220 (*1) : 60 inputs, 56 outputs
Control unit External computer (sold separately)
FA1220: Real-time operating system, LAN for PC connectivity (10 / 100 ×1 port)
Power supply 100 to 240 V AC (±10%), single-phase, 50 Hz / 60 Hz, max. 260 W (with full 1024 pins of scanner boards)
Dimensions and mass 200 mm (7.87 in) W × 323 mm (12.72 in) H × 298 mm (11.73 in) D, 10 kg (352.7 oz)
Accessories Instruction manual ×1, Test leads ×1, Power cord ×1, Metal fittings ×1, Installation CD ×1
Accessories Instruction manual ×1, Test leads ×1, Power cord ×1, Metal fittings ×1, Installation CD ×1
Accessories Instruction manual ×1, Test leads ×1, Power cord ×1, Metal fittings ×1, Installation CD ×1

Hioki PCB and substrate inspection equipment leverages our core competency in high precision component testing. The FA1220 an embeddable PCB measuring component that provides extensive function testing capabilities to complement existing automatic testing equipment.

Key Features

  • Functionality has been consolidated in a single, desktop tower that can be easily embedded in existing equipment
  • Extensive function testing
  • Electrolytic capacitor and IC reverse insertion detection
  • Macro-testing function to increase test efficiency
  • Four-terminal low-resistance measurement for stable measurement of low resistance

Key Features

  • Functionality has been consolidated in a single, desktop tower that can be easily embedded in existing equipment
  • Extensive function testing
  • Electrolytic capacitor and IC reverse insertion detection
  • Macro-testing function to increase test efficiency
  • Four-terminal low-resistance measurement for stable measurement of low resistance

FA1220 Specifications Overview

Number of test points Max. 1024 pins (Can be added in blocks of 128 pins.)
Standard : 0 pins (Scanner boards are sold as options.)
Number of test steps Round-robin short/open data : 1024 pins
Component data : Max. 10000 steps
Macro data : 1024 pins/1024 steps (regardless of number of pins)
IC data : 500 steps (max. 1024 pins/step)
Charge data : 40 sets
Pin contact data : 1024 pins
Group data : 255 groups
Test parameters and measurement ranges Round-robin short/open : 4 Ω to 400 kΩ (Default: 40 Ω)
　 Macro testing (impedance) : 1 Ω to 10 MΩ
　 Component tests : Possible
　 IC reverse insertion detection : Possible
Measurement unit DC voltmeter : 800 μV f.s. to 25 V f.s., 8 ranges
　 DC ammeter : 100 nA f.s. to 250 mA f.s., 9 ranges
　 AC ammeter : 10 μArms f.s. to 10 mA rms f.s., 4 ranges
　 Macro test : Ammeter 10 μ / 100 μ / 1 m / 10 m Arms, 4 ranges
Scanner unit (*2) Software used : Analog switch (Scanner board E4201, E4202)
　 Number of channels : 128 channels/board (2-/4-terminal switchable)
　 Input protection : ±15 V / ±0.5 V (Batch-configurable, Scanner Board E4201 / E4202 only)
External I/O (*2) Using I/O Board E4220 (*1) : 60 inputs, 56 outputs
Control unit External computer (sold separately)
FA1220: Real-time operating system, LAN for PC connectivity (10 / 100 ×1 port)
Power supply 100 to 240 V AC (±10%), single-phase, 50 Hz / 60 Hz, max. 260 W (with full 1024 pins of scanner boards)
Dimensions and mass 200 mm (7.87 in) W × 323 mm (12.72 in) H × 298 mm (11.73 in) D, 10 kg (352.7 oz)
Accessories Instruction manual ×1, Test leads ×1, Power cord ×1, Metal fittings ×1, Installation CD ×1

Accessories Instruction manual ×1, Test leads ×1, Power cord ×1, Metal fittings ×1, Installation CD ×1

Accessories Instruction manual ×1, Test leads ×1, Power cord ×1, Metal fittings ×1, Installation CD ×1
