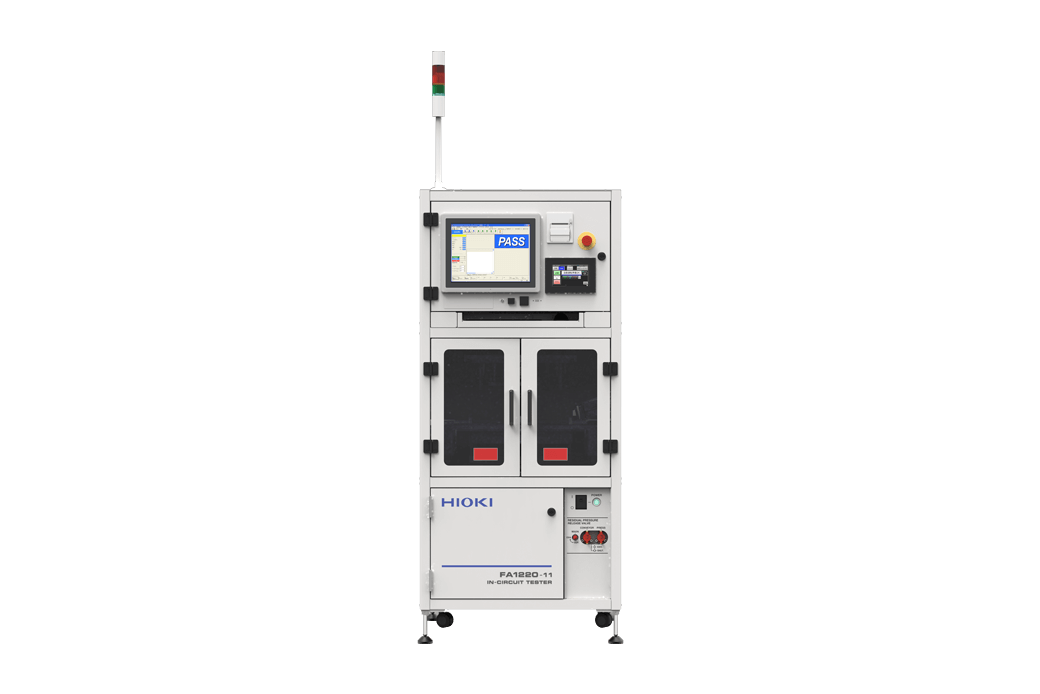

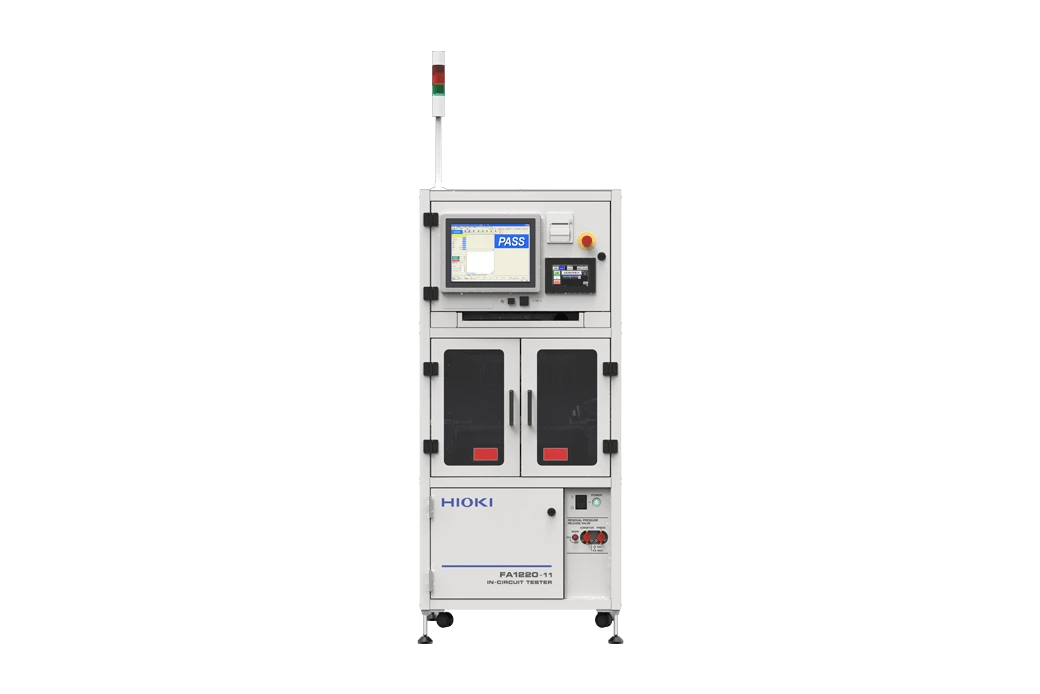

HIOKI FA1220-11 IN-CIRCUIT TESTER

Home › Hioki
Thumbnail
Shop : Tools Bangladesh
Product ID : 4506
Brand : Hioki
Availability : In Stock (1)
Price BDT : Ask for Price
Reviews :
Share :
Request Quote

  • Customer Support

    +8801965656380

  • Cash One Delivery

    Pay after getting the product on hand

  • Warranty

    1 Year warranty by manufacturer

  • Secured Payment Method

    Your cart is always secure to shop

  • Easy Return Policy

    24 hours return without physical defect.

Slash preparation man-hours. Shorten takt times. Reduce waste. Detect and exclude defective boards. Expand your testing coverage. Maximize test functionality. Hioki provides robust support for populated circuit board quality assurance through sure measurement and man-hour-saving automation.

Key Features

  • Installation area about 23% smaller than the previous model. Offers new flexibility for production line layout by saving space.
  • Extension range of options that reduces setup man-hours and boosts productivity.
  • Numerous measurement parameters and detecting defects for a wide variety of inspections
  • Safeguard people, products, and lines with many safety features.
  • Data creation support functionality: ATG function.

Key Features

  • Installation area about 23% smaller than the previous model. Offers new flexibility for production line layout by saving space.
  • Extension range of options that reduces setup man-hours and boosts productivity.
  • Numerous measurement parameters and detecting defects for a wide variety of inspections
  • Safeguard people, products, and lines with many safety features.
  • Data creation support functionality: ATG function.

FA1220-11 Specifications Overview

Number of test points Standard: 0 pins (scanner boards optional)
Max. 2048 pins (expandable in blocks of 128 pins)*
* The maximum number of active pins for each test type depends on the total number of scanner board pins installed in the product.
Number of test steps Group data: 256 groups
Round-robin short/open data: 2048 pins*
Macro data: 2048 pins/2048 steps (regardless of pin count)*
Component data: 10000 steps
Charge data: 40 groups
Pin contact data: 2048 pins*
IC data: 500 steps (max. 2048 pins/step)*

* The maximum number of active pins for each test type depends on the total number of scanner board pins installed in the product.
Measurement unit DC voltmeter: 800 μV f.s. to 25 V f.s., 8 ranges
DC ammeter: 100 nA f.s. to 250 mA f.s., 9 ranges
AC ammeter: 10 μA rms to 10 mA rms, 4 ranges
Scanner unit Switch type: analog (E4201 and E4202), read relay (E4203)
Number of channels: 128 per board
Input protection: ±15 V / ±0.5 V (batch-configurable, E4201 and E4202), none (E4203)
External I/O Ethernet (LAN) 100Base-TX ×1 (please contact Hioki for communication with external devices.)
USB 2.0 ×1
Control unit - Measurement control
Operating system: Real-time operating system
Storage device: SD card (for booting system)

- Main unit control
Operating system: Windows 10 Pro (64-bit)
Storage device: 64 GB SSD
Operation: keyboard and mouse
Display: 15-inch display
Printer: E4243 (option)
Power supply Rated supply voltage: 100 to 240 V AC, 50 Hz/60 Hz
Maximum power consumption: 1 kW
Maximum current consumption: 10 A
Dimensions and mass 780 mm (30.71 in.) W × 1760 mm (69.29 in.) H × 750 mm (29.53 in.) D, 390 kg (13756.6 oz.)
Included accessories Instruction Manual ×1, Test lead ×1, Application disc ×1, Positioning screws ×4, Maintenance key (for opening and closing the maintenance door) ×1, Set of transport motor accessories ×1, Before and after process communication connector set ×2
Included accessories Instruction Manual ×1, Test lead ×1, Application disc ×1, Positioning screws ×4, Maintenance key (for opening and closing the maintenance door) ×1, Set of transport motor accessories ×1, Before and after process communication connector set ×2
Included accessories Instruction Manual ×1, Test lead ×1, Application disc ×1, Positioning screws ×4, Maintenance key (for opening and closing the maintenance door) ×1, Set of transport motor accessories ×1, Before and after process communication connector set ×2

Slash preparation man-hours. Shorten takt times. Reduce waste. Detect and exclude defective boards. Expand your testing coverage. Maximize test functionality. Hioki provides robust support for populated circuit board quality assurance through sure measurement and man-hour-saving automation.

Key Features

  • Installation area about 23% smaller than the previous model. Offers new flexibility for production line layout by saving space.
  • Extension range of options that reduces setup man-hours and boosts productivity.
  • Numerous measurement parameters and detecting defects for a wide variety of inspections
  • Safeguard people, products, and lines with many safety features.
  • Data creation support functionality: ATG function.

Key Features

  • Installation area about 23% smaller than the previous model. Offers new flexibility for production line layout by saving space.
  • Extension range of options that reduces setup man-hours and boosts productivity.
  • Numerous measurement parameters and detecting defects for a wide variety of inspections
  • Safeguard people, products, and lines with many safety features.
  • Data creation support functionality: ATG function.

FA1220-11 Specifications Overview

Number of test points Standard: 0 pins (scanner boards optional)
Max. 2048 pins (expandable in blocks of 128 pins)*
* The maximum number of active pins for each test type depends on the total number of scanner board pins installed in the product.
Number of test steps Group data: 256 groups
Round-robin short/open data: 2048 pins*
Macro data: 2048 pins/2048 steps (regardless of pin count)*
Component data: 10000 steps
Charge data: 40 groups
Pin contact data: 2048 pins*
IC data: 500 steps (max. 2048 pins/step)*

* The maximum number of active pins for each test type depends on the total number of scanner board pins installed in the product.
Measurement unit DC voltmeter: 800 μV f.s. to 25 V f.s., 8 ranges
DC ammeter: 100 nA f.s. to 250 mA f.s., 9 ranges
AC ammeter: 10 μA rms to 10 mA rms, 4 ranges
Scanner unit Switch type: analog (E4201 and E4202), read relay (E4203)
Number of channels: 128 per board
Input protection: ±15 V / ±0.5 V (batch-configurable, E4201 and E4202), none (E4203)
External I/O Ethernet (LAN) 100Base-TX ×1 (please contact Hioki for communication with external devices.)
USB 2.0 ×1
Control unit - Measurement control
Operating system: Real-time operating system
Storage device: SD card (for booting system)

- Main unit control
Operating system: Windows 10 Pro (64-bit)
Storage device: 64 GB SSD
Operation: keyboard and mouse
Display: 15-inch display
Printer: E4243 (option)
Power supply Rated supply voltage: 100 to 240 V AC, 50 Hz/60 Hz
Maximum power consumption: 1 kW
Maximum current consumption: 10 A
Dimensions and mass 780 mm (30.71 in.) W × 1760 mm (69.29 in.) H × 750 mm (29.53 in.) D, 390 kg (13756.6 oz.)
Included accessories Instruction Manual ×1, Test lead ×1, Application disc ×1, Positioning screws ×4, Maintenance key (for opening and closing the maintenance door) ×1, Set of transport motor accessories ×1, Before and after process communication connector set ×2

Included accessories Instruction Manual ×1, Test lead ×1, Application disc ×1, Positioning screws ×4, Maintenance key (for opening and closing the maintenance door) ×1, Set of transport motor accessories ×1, Before and after process communication connector set ×2

Included accessories Instruction Manual ×1, Test lead ×1, Application disc ×1, Positioning screws ×4, Maintenance key (for opening and closing the maintenance door) ×1, Set of transport motor accessories ×1, Before and after process communication connector set ×2
