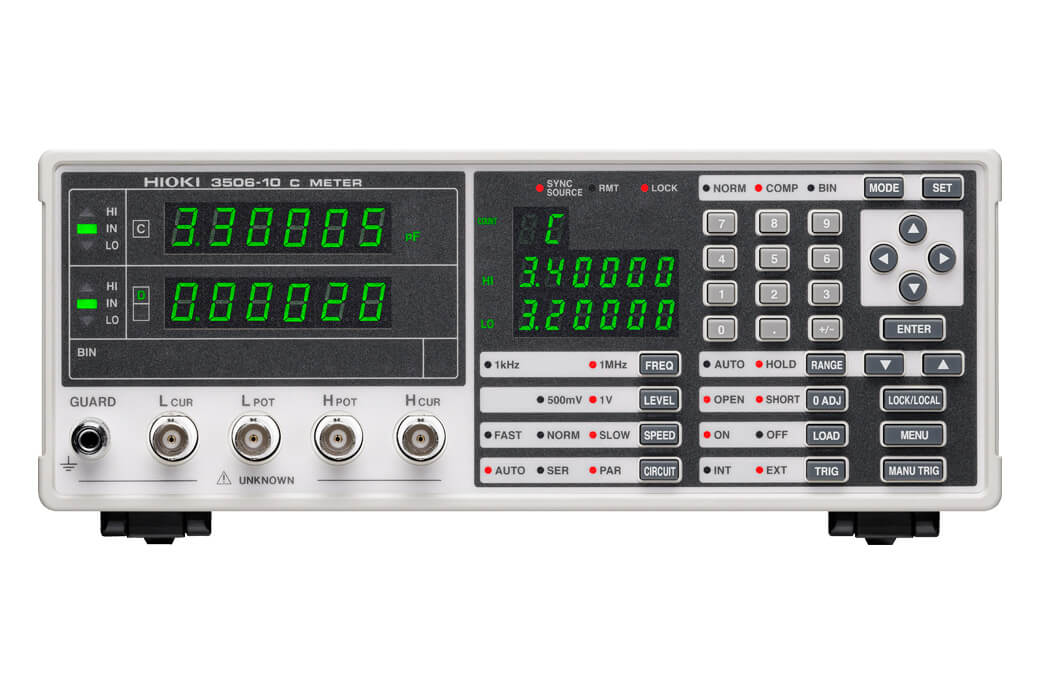

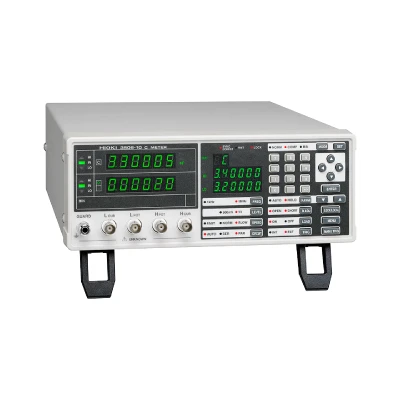

Name: HIOKI C METER 3506-10
Brand: Hioki
Availability: OutOfStock

Hioki LCR Meters and Impedance Analyzers range from 1mHz to 3GHz devices to suit a wide range of applications in the testing of electronic components. The 3506-10 is a dual-band capacitance meter designed to be integrated with automatic taping machines and sorters for production of MLCC (multi-layer ceramic capacitors).

The HIOKI C METER 3506-10 Price in Bangladesh offers precise capacitance measurement with reliable performance. Ideal for professionals seeking accuracy and durability. Check the latest HIOKI C METER 3506-10 Price in Bangladesh to get the best deal and enhance your testing capabilities today.

Key Features

High-speed analog test time of 0.6 ms (at 1 MHz)
Improved noise resistance and enhanced repeatability in measurement precision even for production lines
1 kHz and 1 MHz measurement frequency supports stable low capacitance testing with taping machines
BIN function, for easy component screening

Basic specifications

Accuracy guaranteed: 1 year

Measurement parameters	C (Capacitance), D (loss coefficient, tan δ), Q (1/tan δ)
Measurement range	C: 0.001 fF to 15.0000 μF, D: 0.00001 to 1.99999, Q: 0.0 to 19999.9
Basic accuracy	(Typ.) C: ±0.14 % rdg., D: ±0.0013
Measurement frequency	1 kHz, 1 MHz
Measurement signal level	500 mV, 1 V rms
Output impedance	1 Ω (at 1 kHz in 2.2 μF and higher ranges), 20 Ω (in ranges other than the above)
Display	LED (six digits, full scale count depends on measurement range)
Measurement time	1.5 ms: 1 MHz, 2.0 ms: 1 kHz (Typ. value. Depends on measurement configuration settings)
Functions	BIN (measurement values can be classified by rank), Trigger-synchronous output, Setting configurations can be stored, Comparator, Averaging, Low-C reject (bad contact detection), Chatter detection, Current detection circuit monitoring, Applied voltage value monitoring, EXT. I/O, RS-232C, GP-IB
Power supply	Selectable from 100, 120, 220 or 240 V AC ±10 %, 50/60 Hz 40 VA max.
Dimensions and mass	260 mm (10.24 in) W × 100 mm (3.94 in) H × 298 mm (11.73 in) D, 4.8 kg (169.3 oz)
Included accessories	Power cord × 1, Instruction manual × 1, Spare fuse × 1

Included accessories	Power cord × 1, Instruction manual × 1, Spare fuse × 1

Included accessories	Power cord × 1, Instruction manual × 1, Spare fuse × 1

Key Features

High-speed analog test time of 0.6 ms (at 1 MHz)
Improved noise resistance and enhanced repeatability in measurement precision even for production lines
1 kHz and 1 MHz measurement frequency supports stable low capacitance testing with taping machines
BIN function, for easy component screening

Basic specifications

Accuracy guaranteed: 1 year

Measurement parameters	C (Capacitance), D (loss coefficient, tan δ), Q (1/tan δ)
Measurement range	C: 0.001 fF to 15.0000 μF, D: 0.00001 to 1.99999, Q: 0.0 to 19999.9
Basic accuracy	(Typ.) C: ±0.14 % rdg., D: ±0.0013
Measurement frequency	1 kHz, 1 MHz
Measurement signal level	500 mV, 1 V rms
Output impedance	1 Ω (at 1 kHz in 2.2 μF and higher ranges), 20 Ω (in ranges other than the above)
Display	LED (six digits, full scale count depends on measurement range)
Measurement time	1.5 ms: 1 MHz, 2.0 ms: 1 kHz (Typ. value. Depends on measurement configuration settings)
Functions	BIN (measurement values can be classified by rank), Trigger-synchronous output, Setting configurations can be stored, Comparator, Averaging, Low-C reject (bad contact detection), Chatter detection, Current detection circuit monitoring, Applied voltage value monitoring, EXT. I/O, RS-232C, GP-IB
Power supply	Selectable from 100, 120, 220 or 240 V AC ±10 %, 50/60 Hz 40 VA max.
Dimensions and mass	260 mm (10.24 in) W × 100 mm (3.94 in) H × 298 mm (11.73 in) D, 4.8 kg (169.3 oz)
Included accessories	Power cord × 1, Instruction manual × 1, Spare fuse × 1

Included accessories	Power cord × 1, Instruction manual × 1, Spare fuse × 1

Included accessories	Power cord × 1, Instruction manual × 1, Spare fuse × 1

Shop	:	Tools Bangladesh
Product ID	:	4187
Brand	:	Hioki
Availability	:	Out of Stock
Price BDT	:	Ask for Price
