HIOKI AC, DC CURRENT SENSOR CT7812 Price in Bangladesh offers an affordable and reliable solution for accurate current measurement in various industrial applications. This sensor is designed to measure both AC and DC currents with high precision, making it ideal for power monitoring and testing. Known for its durability and advanced technology, the CT7812 ensures consistent performance in challenging environments. Customers in Bangladesh can benefit from competitive pricing, fast delivery, and excellent after-sales support. If you’re looking for a quality current sensor, the HIOKI CT7812 stands out for its performance and value.
Key Feature
- Exceptional performance in a compact package
- Easy to install in confined locations with complex wiring
- Rated current: 2 A AC/DC
Basic specifications
Accuracy guaranteed: 1 year
| Rated measurement current |
2 A AC/DC |
| Max. allowable input |
3 A rms continuous (±4.3 Ap) |
| Bandwidth |
DC to 100 kHz |
| Basic accuracy |
DC± 0.3％ rdg. ±0.1％ f.s. |
| Core diameter |
φ 5 mm or less |

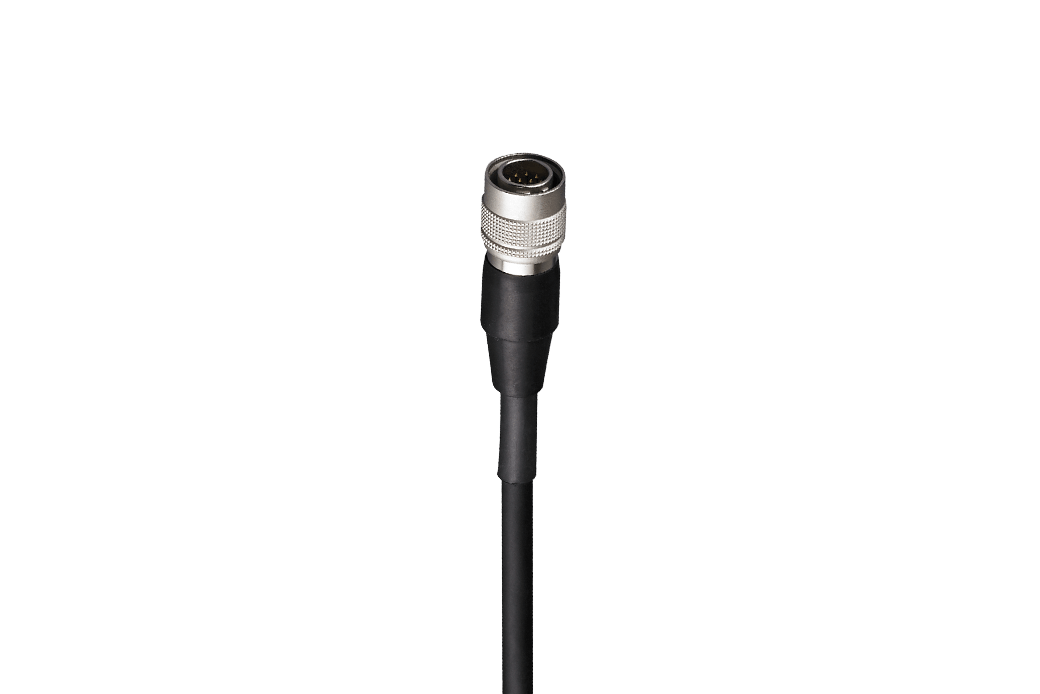

| Output connectors |
HIOKI PL 14 |
| Operating temperature range |
Sensor: -40°C to 85°C, 80% RH or less (non-condensing)
Relay box: -25°C to 50°C, 80% RH or less (non-condensing) |
| Dimensions |
Sensor: 76.5W × 23.4H ×14.2D mm (excluding protrusions and the cable)
Relay box: 80W × 20H × 26.5D mm (excluding protrusions and the cable) |
| Weight |
140 g |
| Output cable length |
4 m (between sensor and relay box), 0.2 m (between relay box and output connector) |
| Included accessories |
Colored labels (for channel identification), Carrying case, Instruction Manual, Operating Precautions |
| Included accessories |
Colored labels (for channel identification), Carrying case, Instruction Manual, Operating Precautions |
| Included accessories |
Colored labels (for channel identification), Carrying case, Instruction Manual, Operating Precautions |
