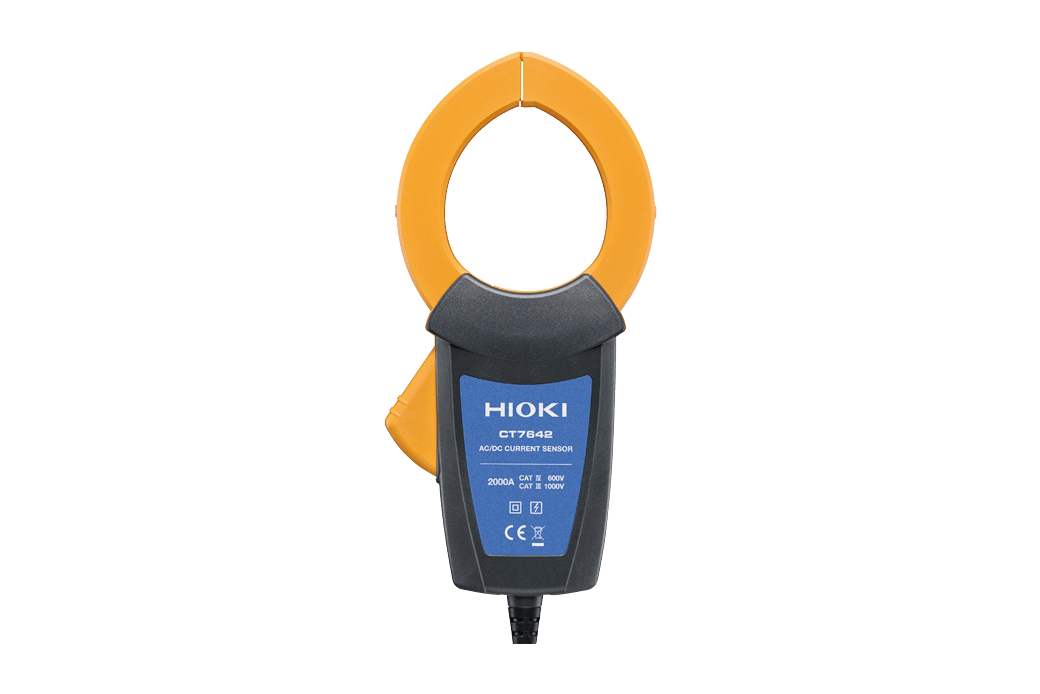

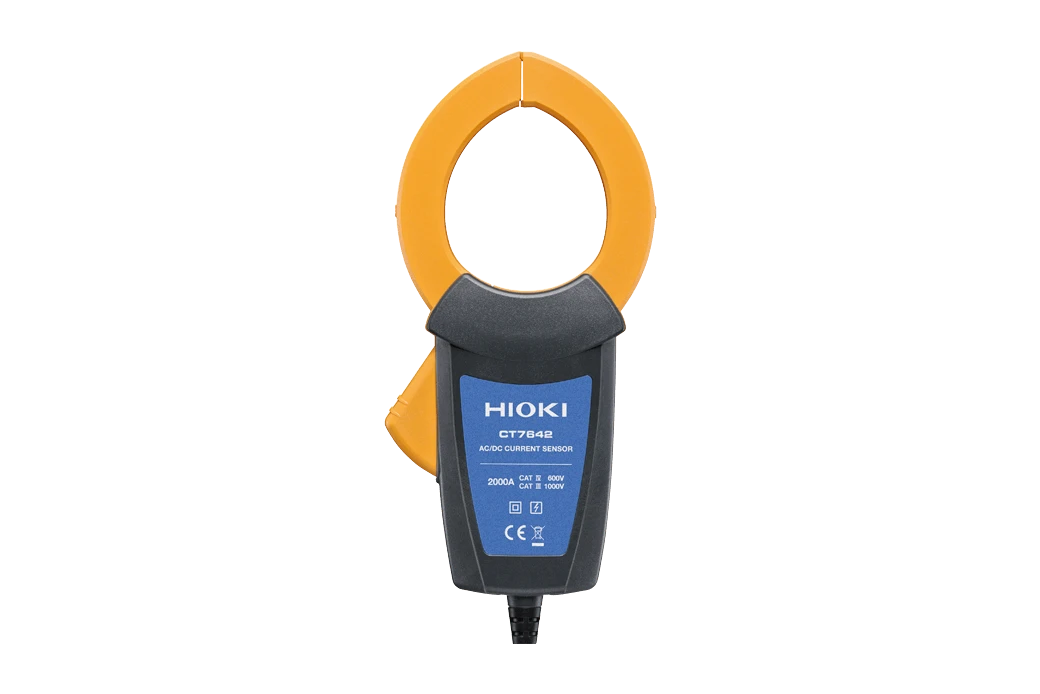

HIOKI AC, DC CURRENT SENSOR CT7642

Home › Hioki
Thumbnail
Shop : Tools Bangladesh
Product ID : 4347
Brand : Hioki
Availability : Out of Stock
Price BDT : Ask for Price
Reviews :
Share :
Request Quote

  • Customer Support

    +8801965656380

  • Cash One Delivery

    Pay after getting the product on hand

  • Warranty

    1 Year warranty by manufacturer

  • Secured Payment Method

    Your cart is always secure to shop

  • Easy Return Policy

    24 hours return without physical defect.

Hioki clamp on meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The CT7642 is a 2000 A AC/DC Current Sensor that pairs with the detachable Display Unit CM7290 or CM7291 to capture instantaneous waveforms that can be output to a Hioki memory recorder or logger for further analysis. Safety CAT IV 600 V. HIOKI AC, DC CURRENT SENSOR CT7642 Price in Bangladesh offers top-tier accuracy for high-precision current measurement. Ideal for lab and industrial use, it supports wide frequency ranges and seamless integration. For reliable performance and precise readings, choose HIOKI AC, DC CURRENT SENSOR CT7642 Price in Bangladesh.

Key Features

  • Ideal for observing instantaneous waveforms in laboratories and other temperature-controlled environments
  • Ideal for site inspections by using detachable Display Unit
  • Four output formats to output data to loggers or other devices (via Display Unit): WAVE, RMS, PEAK, Hz

Basic specifications

Accuracy guaranteed: 3 years

Rated measurement current 2000 A AC/DC
Max. measurement current 2000 A
(requires derating at frequency))
Max. allowable peak input 2840 A peak
Bandwidth DC to 10 kHz (-3dB)
(When used in combination with CM7290 or CM7291: DC 3 Hz to 1 kHz)
Typical phase accuracy ±2.3 deg. (DC < f ≤ 66 Hz)
Output rate 0.1 mV/A
Max. rated voltage to earth AC/DC 600 V (CAT IV)
AC/DC 1000 V (CAT III)
Core diameter φ 55 mm (2.17 in) or less
Output connectors HIOKI PL 14
Operating temperature range -25°C to 65°C (-13°F to 149°F)
Dimensions and mass 64 mm (2.52 in)W × 195 mm (7.68 in)H × 34 mm (1.34 in)D, 510 g (18.0 oz), Cable length 2.5 m (8.20 ft)
Included accessories None
Included accessories None
Included accessories None
