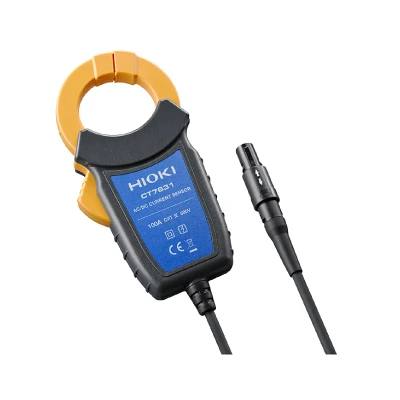

Hioki clamp on meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The CT7631 is a 100 A AC/DC Current Sensor that pairs with the detachable Display Unit CM7290 or CM7291 to capture instantaneous waveforms that can be output to a Hioki memory recorder or logger for further analysis. Mix and match with other sensors in the series for a cost-effective solution covering a broad measurement range. Safety CAT IV 600 V. HIOKI AC, DC CURRENT SENSOR CT7631 Price in Bangladesh offers reliable performance for precise current measurement in industrial applications. With advanced technology and durability, it's ideal for both AC and DC testing needs. Get accurate results every time with HIOKI AC, DC CURRENT SENSOR CT7631 Price in Bangladesh.
Key Features
- Ideal for observing instantaneous waveforms in laboratories and other temperature-controlled environments
- Ideal for site inspections by using detachable Display Unit
- Four output formats to output data to loggers or other devices (via Display Unit): WAVE, RMS, PEAK, Hz
Basic specifications
Accuracy guaranteed: 3 years
| Rated measurement current |
100 A AC/DC |
| Max. measurement current |
100 A
(requires derating at frequency)) |
| Max. allowable peak input |
150 A peak |
| Bandwidth |
DC to 10 kHz (-3dB)
(When used in combination with CM7290 or CM7291: DC 3 Hz to 1 kHz) |
| Typical phase accuracy |
±1.8 deg (DC < f ≤ 66 Hz) |
| Output rate |
1 mV/A |
| Max. rated voltage to earth |
AC/DC 600 V (CAT IV) |
| Core diameter |
φ 33 mm (1.30 in) or less |
| Output connectors |
HIOKI PL 14 |
| Operating temperature range |
-25°C to 65°C (-13°F to 149°F) |
| Dimensions and mass |
58 mm (2.28 in)W × 132 mm (5.20 in)H × 18mm (0.71 in)D, 250 g (8.8 oz), Cable length 2.5 m (8.20 ft) |
| Included accessories |
None |
| Included accessories |
None |
| Included accessories |
None |
