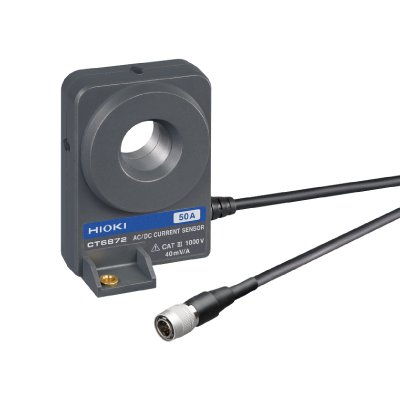

HIOKI AC, DC CURRENT SENSOR CT6872

Home › Hioki
Thumbnail
Shop : Tools Bangladesh
Product ID : 4313
Brand : Hioki
Availability : Out of Stock
Price BDT : Ask for Price
Reviews :
Share :
Request Quote

  • Customer Support

    +8801965656380

  • Cash One Delivery

    Pay after getting the product on hand

  • Warranty

    1 Year warranty by manufacturer

  • Secured Payment Method

    Your cart is always secure to shop

  • Easy Return Policy

    24 hours return without physical defect.

Hioki's pass-through type AC/DC current sensors can be connected directly to Hioki Power Analyzers and Memory HiCorders. Also, it can be connected to Power Meters, Oscilloscopes, DMMs, etc. by using an optional sensor unit.
The CT6872 has a frequency bandwidth of DC to 10 MHz and a rated current of 50 A. It is used for R&D, quality evaluation, manufacturing, and maintenance in markets such as wireless charging systems, inverter motors for industrial equipment, power conditioners for PV, and quick charging facilities for EVs. HIOKI AC, DC CURRENT SENSOR CT6872 Price in Bangladesh offers exceptional value for high-precision current measurements. Designed for wide frequency bandwidth and low noise, it ensures accurate analysis in advanced power applications. HIOKI AC, DC CURRENT SENSOR CT6872 Price in Bangladesh suits engineers demanding reliable, efficient testing tools.

Key Features

  • Combined accuracy with HIOKI power analyzer PW8001, PW6001 and PW3390 is specified. For details of combined accuracy, refer to the instruction manual.
  • Wide-bandwidth DC to 10 MHz excellent frequency characteristics
  • Applications in the fields of electric and hybrid electric vehicles
  • Wide operating temperature range(-40°C to 85°C) fit for automobile applications
  • Ideal for evaluation of solar power generation and fuel cells to measure battery charge and discharge and the secondary side of inverters
  • For observing waveforms to be used with the oscilloscopes or Memory HiCorders (use with Sensor Unit)

Basic specifications

Accuracy guaranteed: 1 year

Rated current 50 A AC/DC
Max. allowable input Within the derating range, up to ±150 A peak (design value) allowed at 40°C or less for 20 ms or less
Frequency bandwidth Amplitude: DC to 10 MHz
Phase: DC to 1 MHz
Basic accuracy DC (±0.03% rdg. ±0.002% f.s., no phase specification)
45 Hz ≤ f ≤ 66 Hz (±0.03% rdg. ±0.007% f.s., ±0.05°)
Specified up to 1 MHz
Output voltage rate 40 mV/A rated (This device outputs AC+DC voltage via the Sensor Unit)
Max. rated voltage to earth 1000 V CAT III
Core diameter φ 24 mm (0.94 in)
Operating temperature, humidity -40°C to +85°C (-40°F to 185°F), 80% RH or less (with no condensation)
Power supply Power suppled via the Power Analyzer PW8001, PW6001, PW3390, Sensor Unit CT9555, CT9556, CT9557, or 3CH CURRENT UNIT U8977
Max. rated power 4 VA max. (at 50 A/55 Hz, ±12 V power requirement)
Dimensions and mass 70 mm (2.76 in)W × 100 mm (3.94 in)H × 53 mm (2.09 in)D, CT6872: 370 g (13.1 oz), cable length: 3 m (9.84 ft), CT6872-01: 690g (24.3 oz), cable length 10 m (32.81 ft)
Included accessories Instruction Manual ×1, Mark bands ×6, Operating Precautions ×1

Compatible models

Compatible models CT6872
Power Analyzer
PW8001, PW6001, PW3390		 OK
Power Analyzer
3390		 Attention (Requires CT9901)
Power HiTester
3193 series		 Attention (Requires CT9901)
Current Unit
8971		 Attention (Requires the 9318, CT9901)
3CH Current Unit U8977 OK
Included accessories Instruction Manual ×1, Mark bands ×6, Operating Precautions ×1
Included accessories Instruction Manual ×1, Mark bands ×6, Operating Precautions ×1

Hioki's pass-through type AC/DC current sensors can be connected directly to Hioki Power Analyzers and Memory HiCorders. Also, it can be connected to Power Meters, Oscilloscopes, DMMs, etc. by using an optional sensor unit.
The CT6872 has a frequency bandwidth of DC to 10 MHz and a rated current of 50 A. It is used for R&D, quality evaluation, manufacturing, and maintenance in markets such as wireless charging systems, inverter motors for industrial equipment, power conditioners for PV, and quick charging facilities for EVs. HIOKI AC, DC CURRENT SENSOR CT6872 Price in Bangladesh offers exceptional value for high-precision current measurements. Designed for wide frequency bandwidth and low noise, it ensures accurate analysis in advanced power applications. HIOKI AC, DC CURRENT SENSOR CT6872 Price in Bangladesh suits engineers demanding reliable, efficient testing tools.

Key Features

  • Combined accuracy with HIOKI power analyzer PW8001, PW6001 and PW3390 is specified. For details of combined accuracy, refer to the instruction manual.
  • Wide-bandwidth DC to 10 MHz excellent frequency characteristics
  • Applications in the fields of electric and hybrid electric vehicles
  • Wide operating temperature range(-40°C to 85°C) fit for automobile applications
  • Ideal for evaluation of solar power generation and fuel cells to measure battery charge and discharge and the secondary side of inverters
  • For observing waveforms to be used with the oscilloscopes or Memory HiCorders (use with Sensor Unit)

Basic specifications

Accuracy guaranteed: 1 year

Rated current 50 A AC/DC
Max. allowable input Within the derating range, up to ±150 A peak (design value) allowed at 40°C or less for 20 ms or less
Frequency bandwidth Amplitude: DC to 10 MHz
Phase: DC to 1 MHz
Basic accuracy DC (±0.03% rdg. ±0.002% f.s., no phase specification)
45 Hz ≤ f ≤ 66 Hz (±0.03% rdg. ±0.007% f.s., ±0.05°)
Specified up to 1 MHz
Output voltage rate 40 mV/A rated (This device outputs AC+DC voltage via the Sensor Unit)
Max. rated voltage to earth 1000 V CAT III
Core diameter φ 24 mm (0.94 in)
Operating temperature, humidity -40°C to +85°C (-40°F to 185°F), 80% RH or less (with no condensation)
Power supply Power suppled via the Power Analyzer PW8001, PW6001, PW3390, Sensor Unit CT9555, CT9556, CT9557, or 3CH CURRENT UNIT U8977
Max. rated power 4 VA max. (at 50 A/55 Hz, ±12 V power requirement)
Dimensions and mass 70 mm (2.76 in)W × 100 mm (3.94 in)H × 53 mm (2.09 in)D, CT6872: 370 g (13.1 oz), cable length: 3 m (9.84 ft), CT6872-01: 690g (24.3 oz), cable length 10 m (32.81 ft)
Included accessories Instruction Manual ×1, Mark bands ×6, Operating Precautions ×1

Compatible models

Compatible models CT6872
Power Analyzer
PW8001, PW6001, PW3390		 OK
Power Analyzer
3390		 Attention (Requires CT9901)
Power HiTester
3193 series		 Attention (Requires CT9901)
Current Unit
8971		 Attention (Requires the 9318, CT9901)
3CH Current Unit U8977 OK

Included accessories Instruction Manual ×1, Mark bands ×6, Operating Precautions ×1

Included accessories Instruction Manual ×1, Mark bands ×6, Operating Precautions ×1
