Hioki's clamp type AC/DC current sensors can be connected directly to Hioki Power Analyzers and Memory HiCorders. Also, it can be connected to Power Meters, Oscilloscopes, DMMs, etc. by using an optional sensor unit.

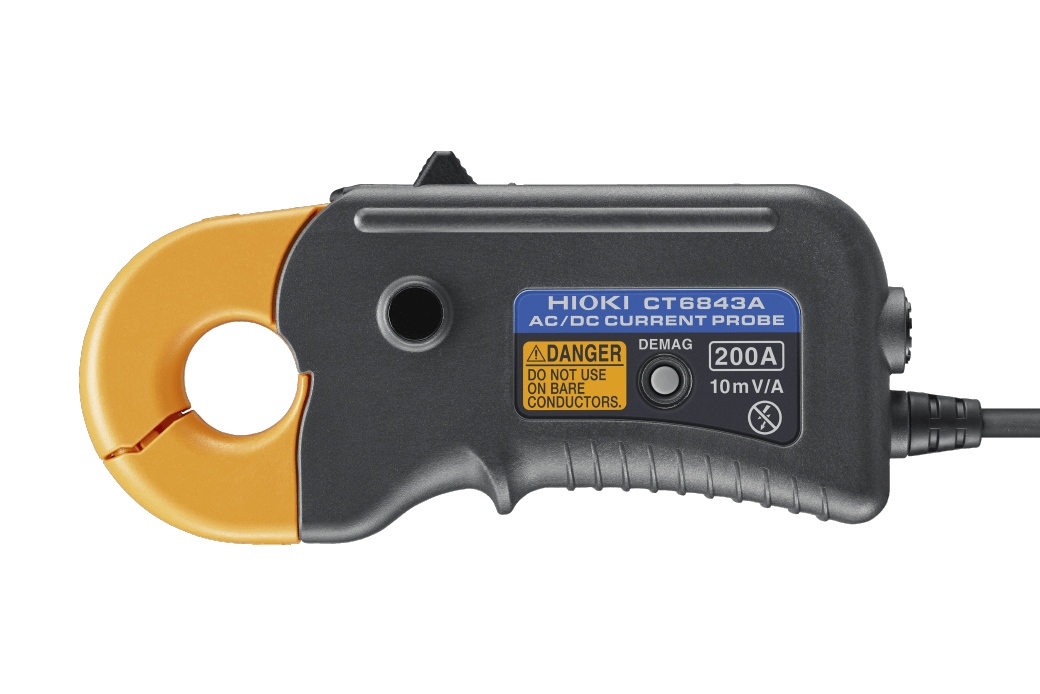

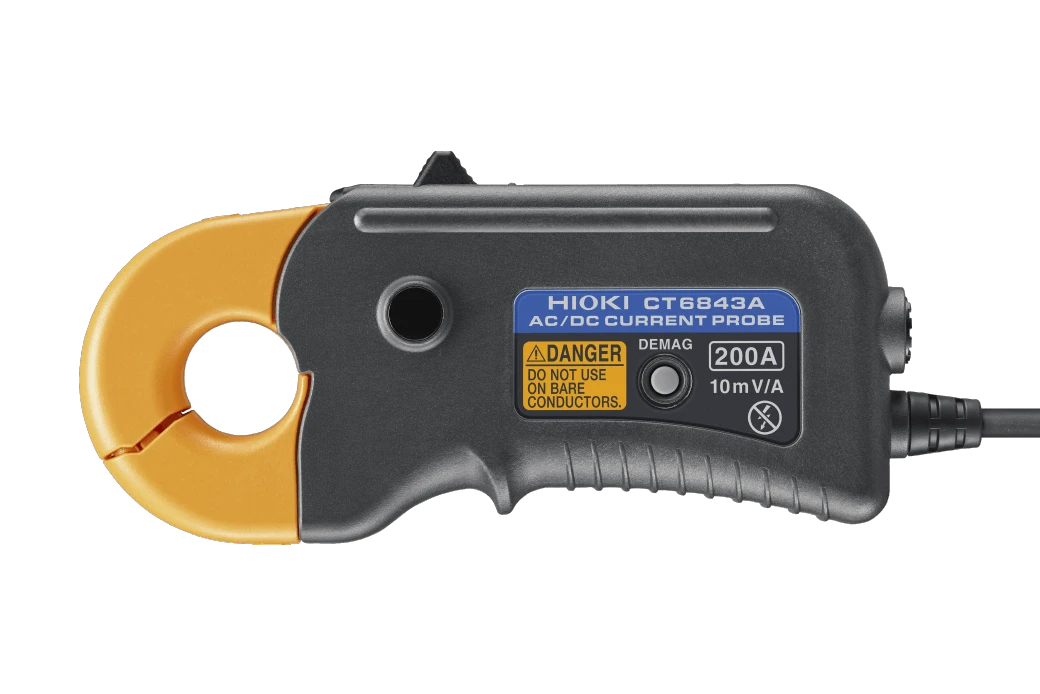

HIOKI AC, DC CURRENT PROBE CT6843A Price in Bangladesh reflects its premium performance and precision in current measurement solutions. This advanced probe is designed to measure both AC and DC currents with high accuracy, making it ideal for automotive, industrial, and power electronics applications. It supports wide bandwidth and excellent linearity, ensuring reliable results even in complex waveforms. With its compact design and robust build, the CT6843A is perfect for professional environments requiring dependable current sensing. If you're looking for top-tier performance and long-term value, the HIOKI AC, DC CURRENT PROBE CT6843A Price in Bangladesh ensures a worthwhile investment.
Key Features
- Frequency bandwidth DC to 700 kHz
- Rated current 200 A AC/DC
- Power supplied via the measurement instrument (when connecting Hioki Power Analyzer or Memory HiCorder)
- Ideal for use in environmental testing with broad -40°C to 85°C temperature range
- Ideal for EV inverter evaluation and PV power generation PCS evaluation
- Single-handed operation and robust locking mechanism
Basic specifications
Accuracy guaranteed: 1 year
| Rated current |
200 A AC/DC |
| Frequency bandwidth |
DC to 700 kHz |
| Diameter of measurable conductors |
Max. φ 20 mm (0.79 in.) |
| Max. allowable input |
±600 A peak
(Within 20 ms in an environment of 40°C/104°F or less) |
| Output voltage |
10 mV/A |
| Output resistance |
50 Ω ± 10 Ω |
Accuracy (amplitude)
±(% of reading + % of full scale) |
DC: 0.2% + 0.02%
DC < f ≤ 100 Hz: 0.2% + 0.01% |
| Linearity |
±20 ppm Typical |
Common-Mode Voltage Rejection Ratio
(CMRR) |
DC to 1 kHz：150 dB or greater
1 kHz to 10kHz：135 dB or greater
10 kHz to 100 kHz：115 dB or greater
100 kHz to 500 kHz：95 dB or greater
(effect on output voltage and common mode voltage) |
| Automatic phase correction |
Automatically performs phase correction when connected to PW8001 |
| Operating temperature, humidity |
-40°C to 85°C (-40°F to 185°F), 80% RH or less |
| Standards |
Safety IEC 61010 Type D
EMC IEC 61326 |
| Withstand voltage |
AC 4260 V |
| Power supply |
Power suppled via the Power Analyzer PW8001, PW6001, PW3390, Sensor Unit CT9555, CT9556, CT9557, or 3CH CURRENT UNIT U8977 |
| Max. rated power |
6 VA or less (When measuring 200 A/55 Hz with ±12 V power supply) |
| Dimensions and mass |
Approx. 153 mm W × 67 mm H × 25 mm D
(approx. 6.02 in. W × 2.64 in. H × 0.98 in. D), 380 g (13.4 oz.) |
| Cable length |
Approx. 3 m (9.84 ft.) |
| Included accessories |
Markup bands ×6, Carrying Case, Instruction Manual |
| Included accessories |
Markup bands ×6, Carrying Case, Instruction Manual |
| Included accessories |
Markup bands ×6, Carrying Case, Instruction Manual |
