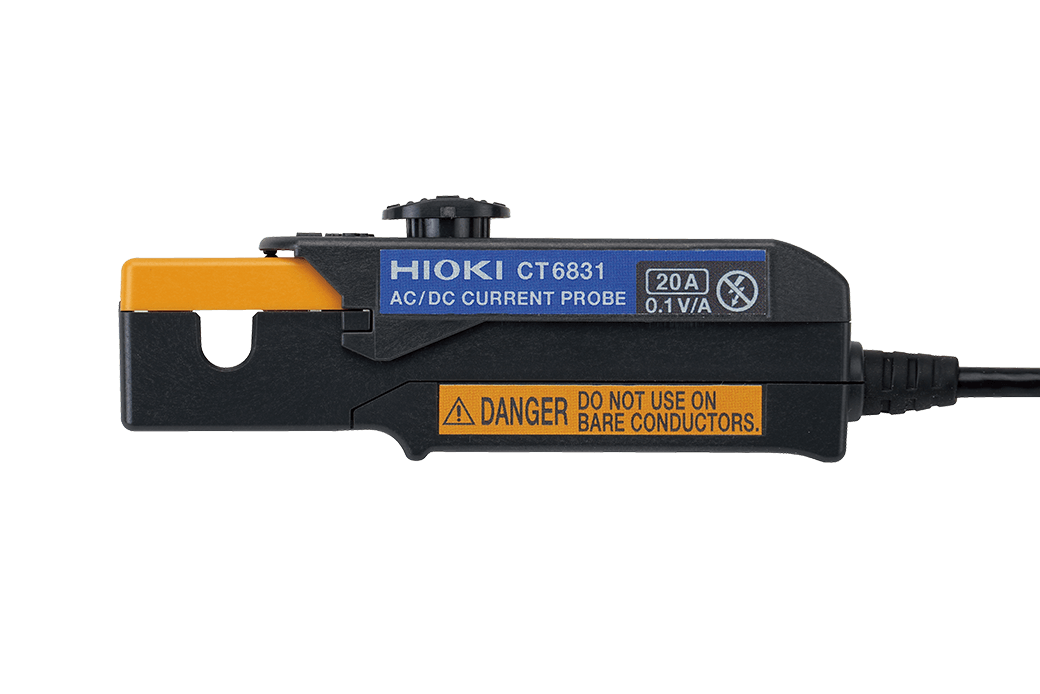

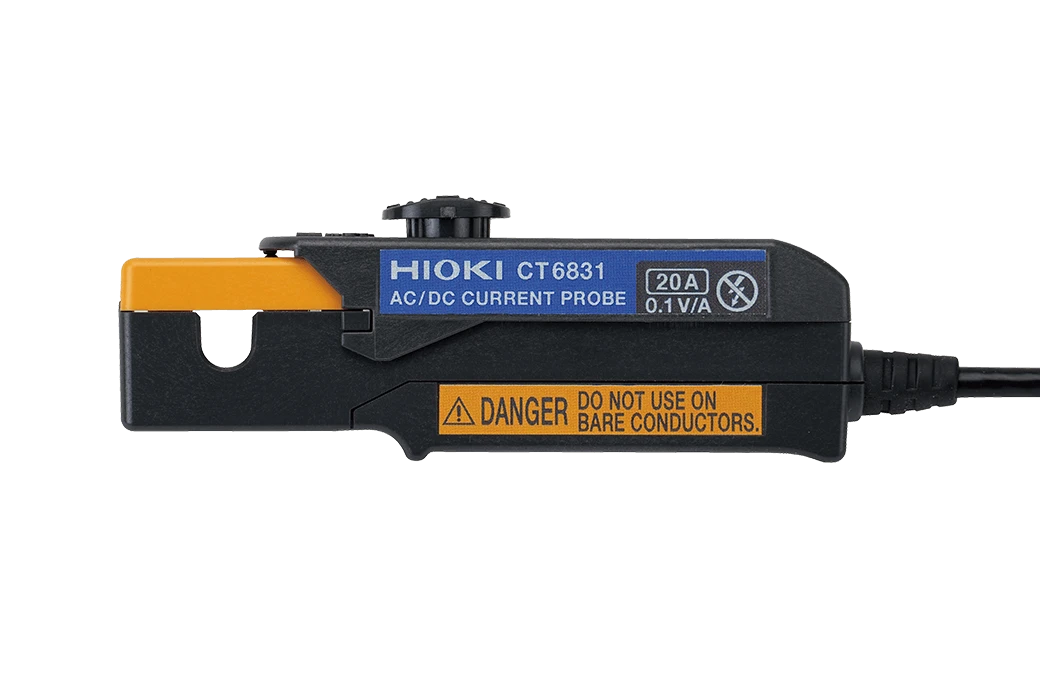

HIOKI AC, DC CURRENT PROBE CT6831 Price in Bangladesh offers exceptional accuracy and reliability for measuring both AC and DC currents. This advanced probe is designed for professionals who require precise current analysis in electrical systems. With its high sensitivity and wide measurement range, the CT6831 is perfect for industrial and laboratory applications. Available at competitive prices in Bangladesh, it ensures great value without compromising quality. Its ergonomic design and easy-to-use features make it a top choice for engineers and technicians. For those seeking the best current measurement solution, the HIOKI AC, DC CURRENT PROBE CT6831 Price in Bangladesh is unbeatable.
Key Feature
- Exceptional performance in a compact package
- Easy to install in confined locations with complex wiring
- Rated current: 20 A AC/DC
Basic specifications
Accuracy guaranteed: 1 year
| Rated measurement current |
20 A AC/DC |
| Max. allowable input |
30 A rms continuous (±43 Ap) |
| Bandwidth |
DC to 100 kHz |
| Basic accuracy |
DC± 0.3％ rdg. ±0.1％ f.s. |
| Core diameter |
φ 5 mm or less |

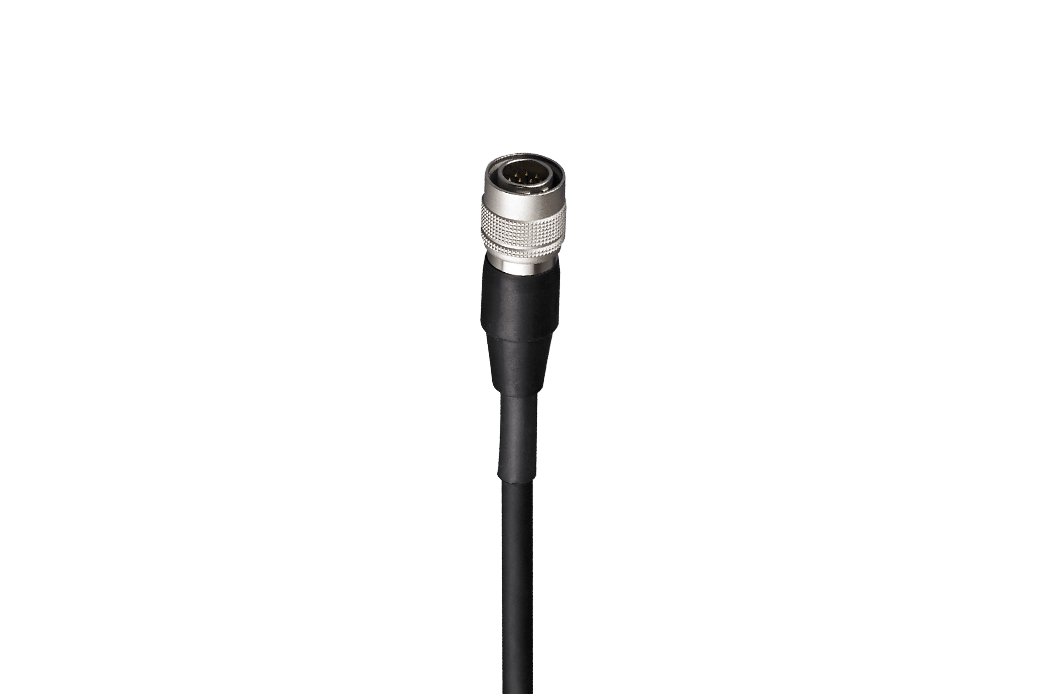

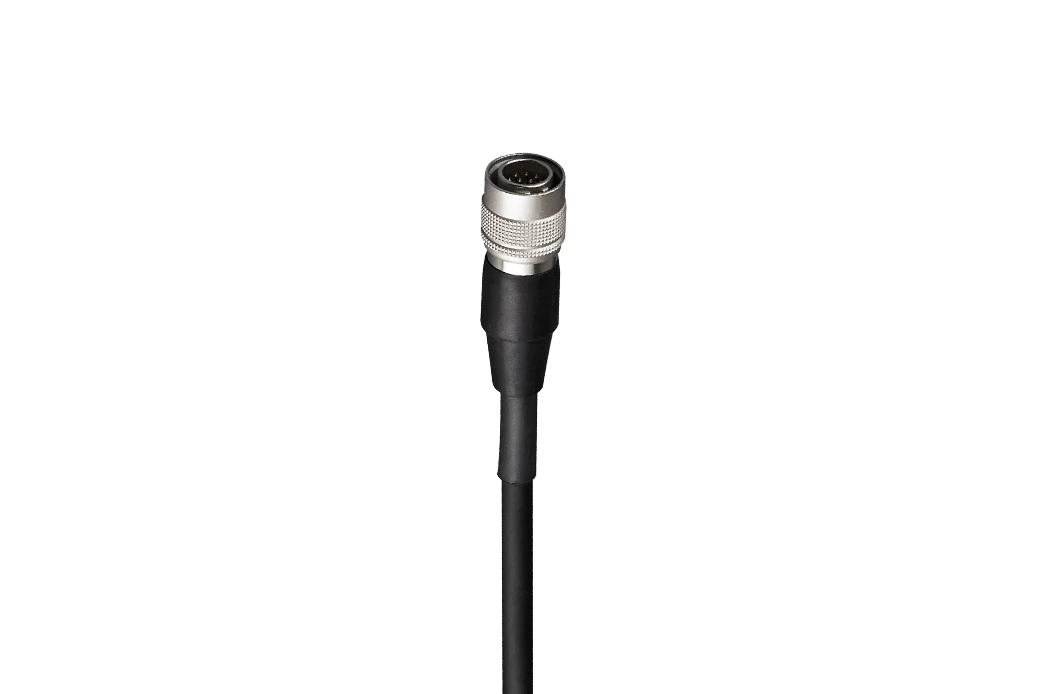

| Output connectors |
HIOKI ME15W |
| Memory function |
Instruments with a memory function can load the sensor information of the device
Compatible model: PW8001 |
| Operating temperature range |
Sensor: -40°C to 85°C, 80% RH or less (non-condensing)
Multiplexer: -25°C to 50°C, 80% RH or less (non-condensing) |
| Dimensions |
Sensor: 76.5W × 23.4H ×14.2D mm (excluding protrusions and the cable)
Multiplexer: 80W × 20H × 26.5D mm (excluding protrusions and the cable) |
| Weight |
160 g |
| Output cable length |
4 m (between sensor and multiplexer), 0.2 m (between multiplexer and output connector) |
| Included accessories |
Colored labels (for channel identification), Carrying case, Instruction Manual, Operating Precautions |
| Included accessories |
Colored labels (for channel identification), Carrying case, Instruction Manual, Operating Precautions |
| Included accessories |
Colored labels (for channel identification), Carrying case, Instruction Manual, Operating Precautions |
