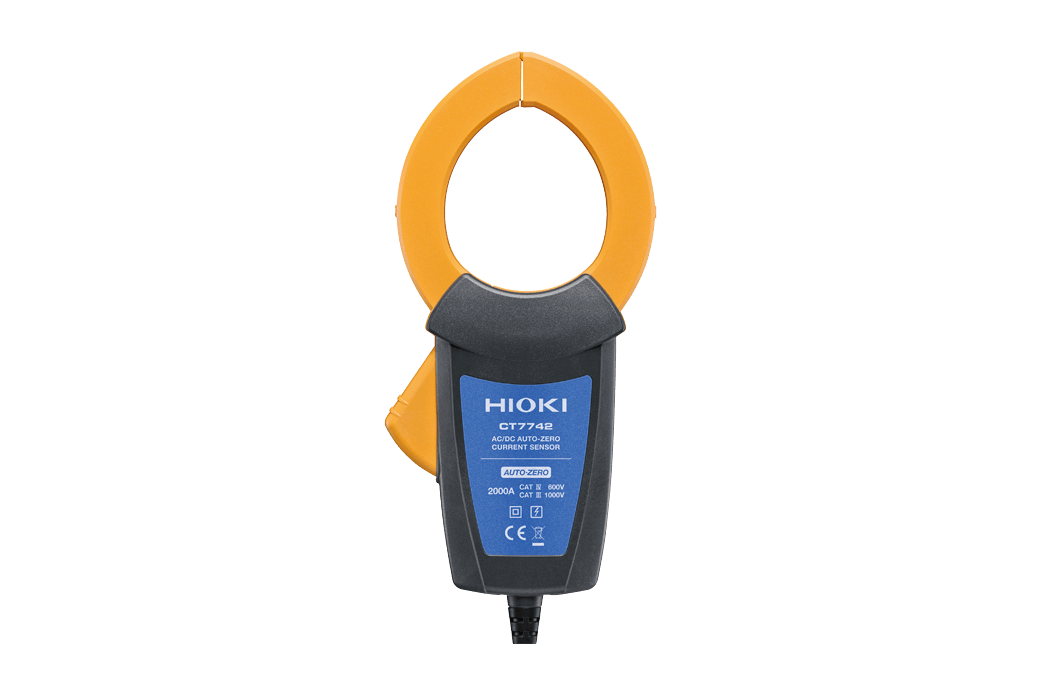

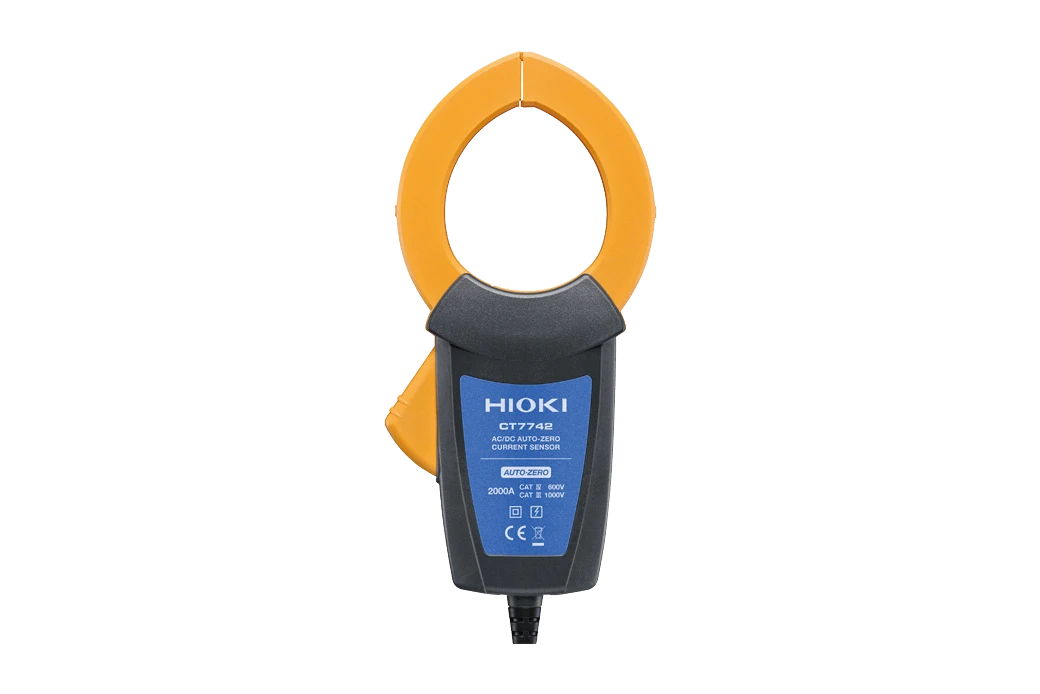

HIOKI AC, DC AUTO-ZERO CURRENT SENSOR CT7742

Home › Hioki
Thumbnail
Shop : Tools Bangladesh
Product ID : 4344
Brand : Hioki
Availability : Out of Stock
Price BDT : Ask for Price
Reviews :
Share :
Request Quote

  • Customer Support

    +8801965656380

  • Cash One Delivery

    Pay after getting the product on hand

  • Warranty

    1 Year warranty by manufacturer

  • Secured Payment Method

    Your cart is always secure to shop

  • Easy Return Policy

    24 hours return without physical defect.

Hioki clamp on meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The CT7742 is a 2000 A AC/DC Current Sensor that pairs with the detachable Display Unit CM7290 for convenient field testing, while delivering an extended temperature range and auto-zero adjustment to minimize drift due to wide temperature changes that occur during long-term testing.  Further extend the functionality of this system by connecting the Display Unit with a Hioki memory recorder or logger. Safety CAT IV 600 V.

Key Features

  • Accurately measure and record even when the temperature changes
  • Ideal for site inspections by using detachable Display Unit
  • Four output formats to output data to loggers or other devices (via Display Unit): WAVE, RMS, PEAK, Hz

Basic specifications

Accuracy guaranteed: 3 years

Rated measurement current 2000 A AC/DC
Max. measurement current 2000 A
(requires derating at frequency)
Max. allowable peak input 2840 A peak
Bandwidth DC to 5 kHz (-3dB)
(When used in combination with CM7290 or CM7291: DC 3 Hz to 1 kHz)
Typical phase accuracy ±2.3 deg. (DC < f ≤ 66 Hz)
Output rate 0.1 mV/A
Max. rated voltage to earth AC/DC 600 V (CAT IV)
AC/DC 1000 V (CAT III)
Core diameter φ 55 mm (2.17 in) or less
Output connectors HIOKI PL 14
Operating temperature range -25 °C to 65 °C (-13 °F to 149 °F)
Dimensions and mass 64 mm (2.52 in)W × 195 mm (7.68 in)H × 34 mm (1.34 in)D, 510 g (18.0 oz), Cable length 2.5 m (8.20 ft)
Included accessories None
Included accessories None
Included accessories None

Hioki clamp on meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The CT7742 is a 2000 A AC/DC Current Sensor that pairs with the detachable Display Unit CM7290 for convenient field testing, while delivering an extended temperature range and auto-zero adjustment to minimize drift due to wide temperature changes that occur during long-term testing.  Further extend the functionality of this system by connecting the Display Unit with a Hioki memory recorder or logger. Safety CAT IV 600 V.

Key Features

  • Accurately measure and record even when the temperature changes
  • Ideal for site inspections by using detachable Display Unit
  • Four output formats to output data to loggers or other devices (via Display Unit): WAVE, RMS, PEAK, Hz

Basic specifications

Accuracy guaranteed: 3 years

Rated measurement current 2000 A AC/DC
Max. measurement current 2000 A
(requires derating at frequency)
Max. allowable peak input 2840 A peak
Bandwidth DC to 5 kHz (-3dB)
(When used in combination with CM7290 or CM7291: DC 3 Hz to 1 kHz)
Typical phase accuracy ±2.3 deg. (DC < f ≤ 66 Hz)
Output rate 0.1 mV/A
Max. rated voltage to earth AC/DC 600 V (CAT IV)
AC/DC 1000 V (CAT III)
Core diameter φ 55 mm (2.17 in) or less
Output connectors HIOKI PL 14
Operating temperature range -25 °C to 65 °C (-13 °F to 149 °F)
Dimensions and mass 64 mm (2.52 in)W × 195 mm (7.68 in)H × 34 mm (1.34 in)D, 510 g (18.0 oz), Cable length 2.5 m (8.20 ft)
Included accessories None

Included accessories None

Included accessories None
