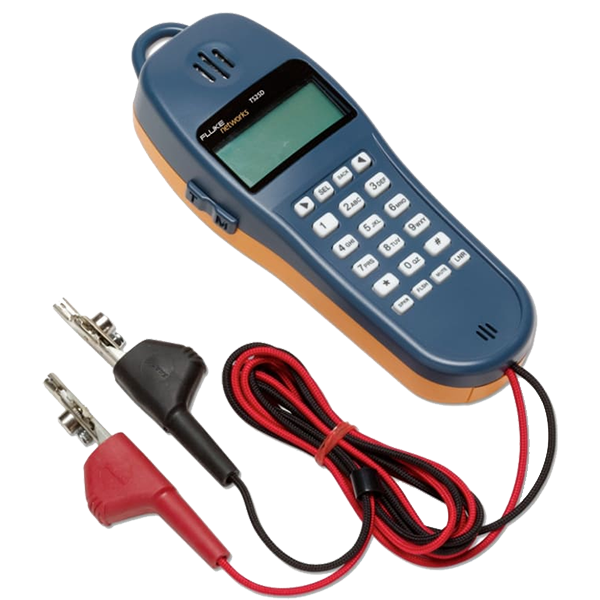

Model: Fluke TS 25D Test Sets

Fluke TS 25D Test Sets is a new feature-rich test set that is a necessity for a variety of installs. The TS25D features data lockout and lockout override

This feature-rich test set is a necessity for a variety of installs. The TS25D Test Set features data lockout and lockout override, making you completely safe in talk or monitor mode. The DSL/POTS filtering technology allows you to safely draw dial tone without downing DSL.

A built-in analog tone generator simplifies wire identification with a probe. An amplified speaker makes monitoring the line hands-free, so you can keep working. The talk battery function provides voltage to carry voice conversation on non-powered pairs.

All in a compact unit with an oversized robust liquid crystal display (LCD) that makes the intuitive, common-sense menus easy-to-read and use.

We know Fluke is the world-class brand and many engineers are using it comfortably. If you want to use your favorite tool now you shop through Tools Bangladesh.

Key Features: Fluke TS 25D Test Sets

  • Caller-ID and Call Waiting Caller-ID
  • Amplified speakers for hands-free monitoring
  • Data lockout and data lockout override
  • Tone generator for wire identification
  • Talk battery to power voice conversation on dry (non-powered) lines
  • Easy to read oversized liquid crystal display

Specifications: Fluke TS 25D Test Sets

Electrical
Return Loss

>14 dB (ref 600 Ω)
DC Resistance
Off-Hook
On-Hook		 150 Ω nominal
>1 MΩ

AC Impedance

Off-Hook
On-Hook

600 Ω nominal; 300 Hz to 3400 Hz
>120 kΩ; 300 Hz to 3400 Hz

Rotary Dial Output

Pulsing Rate

10 pps ±1 pps

Break/Make Ratio

60/40

Interdigit Interval

>300 ms

Resistance During Break

>100 kΩ

DTMF Output

Tone Frequency Error

±1.5 % maximum

Tone Level

–1 dBm combined (typical)

High versus Low Tone difference

2 dB ± 2 dB

Memory Dialing

Memory Capacity

 10 speed dial memories plus one last number redial memory

Digit Capacity

23 digits per memory

Pause Duration

User programmable Default: 4 seconds

Hook Flash Duration

User programmable Default: 600 ms

Automatic Speaker Shut Off Duration

User programmable TS25D default: 5 minutes TS25D CO default: 2 minutes

Battery

9 V alkaline or lithium battery

Physical

Measurement

7.8 in x 2.7 in x 1.6 in (20 cm x 6.8 cm x 4 cm)

Weight

10 ounces (284 g)

Environmental

Temperature Range Operating

32°F to 122 °F (0 °C to 50 °C)

Storage

-40 °F to 150 °F (-40 °C to 65 °C)

Altitude

Up to 10,000 ft (3,000 m)

Relative Humidity

5 % to 95 %



  • N/A

Accessories: Fluke TS 25D Test Sets

Model Number/Name Description
25500100
Earpiece, TS25D test set
25500300
TS25D battery door with belt clip
25500400
Pouch only, TS25D

Model: Fluke TS 25D Test Sets

Fluke TS 25D Test Sets is a new feature-rich test set that is a necessity for a variety of installs. The TS25D features data lockout and lockout override

This feature-rich test set is a necessity for a variety of installs. The TS25D Test Set features data lockout and lockout override, making you completely safe in talk or monitor mode. The DSL/POTS filtering technology allows you to safely draw dial tone without downing DSL.

A built-in analog tone generator simplifies wire identification with a probe. An amplified speaker makes monitoring the line hands-free, so you can keep working. The talk battery function provides voltage to carry voice conversation on non-powered pairs.

All in a compact unit with an oversized robust liquid crystal display (LCD) that makes the intuitive, common-sense menus easy-to-read and use.

We know Fluke is the world-class brand and many engineers are using it comfortably. If you want to use your favorite tool now you shop through Tools Bangladesh.

Key Features: Fluke TS 25D Test Sets

  • Caller-ID and Call Waiting Caller-ID
  • Amplified speakers for hands-free monitoring
  • Data lockout and data lockout override
  • Tone generator for wire identification
  • Talk battery to power voice conversation on dry (non-powered) lines
  • Easy to read oversized liquid crystal display

Specifications: Fluke TS 25D Test Sets

Electrical
Return Loss

>14 dB (ref 600 Ω)
DC Resistance
Off-Hook
On-Hook		 150 Ω nominal
>1 MΩ

AC Impedance

Off-Hook
On-Hook

600 Ω nominal; 300 Hz to 3400 Hz
>120 kΩ; 300 Hz to 3400 Hz

Rotary Dial Output

Pulsing Rate

10 pps ±1 pps

Break/Make Ratio

60/40

Interdigit Interval

>300 ms

Resistance During Break

>100 kΩ

DTMF Output

Tone Frequency Error

±1.5 % maximum

Tone Level

–1 dBm combined (typical)

High versus Low Tone difference

2 dB ± 2 dB

Memory Dialing

Memory Capacity

 10 speed dial memories plus one last number redial memory

Digit Capacity

23 digits per memory

Pause Duration

User programmable Default: 4 seconds

Hook Flash Duration

User programmable Default: 600 ms

Automatic Speaker Shut Off Duration

User programmable TS25D default: 5 minutes TS25D CO default: 2 minutes

Battery

9 V alkaline or lithium battery

Physical

Measurement

7.8 in x 2.7 in x 1.6 in (20 cm x 6.8 cm x 4 cm)

Weight

10 ounces (284 g)

Environmental

Temperature Range Operating

32°F to 122 °F (0 °C to 50 °C)

Storage

-40 °F to 150 °F (-40 °C to 65 °C)

Altitude

Up to 10,000 ft (3,000 m)

Relative Humidity

5 % to 95 %



  • N/A

Accessories: Fluke TS 25D Test Sets

Model Number/Name Description
25500100
Earpiece, TS25D test set
25500300
TS25D battery door with belt clip
25500400
Pouch only, TS25D
